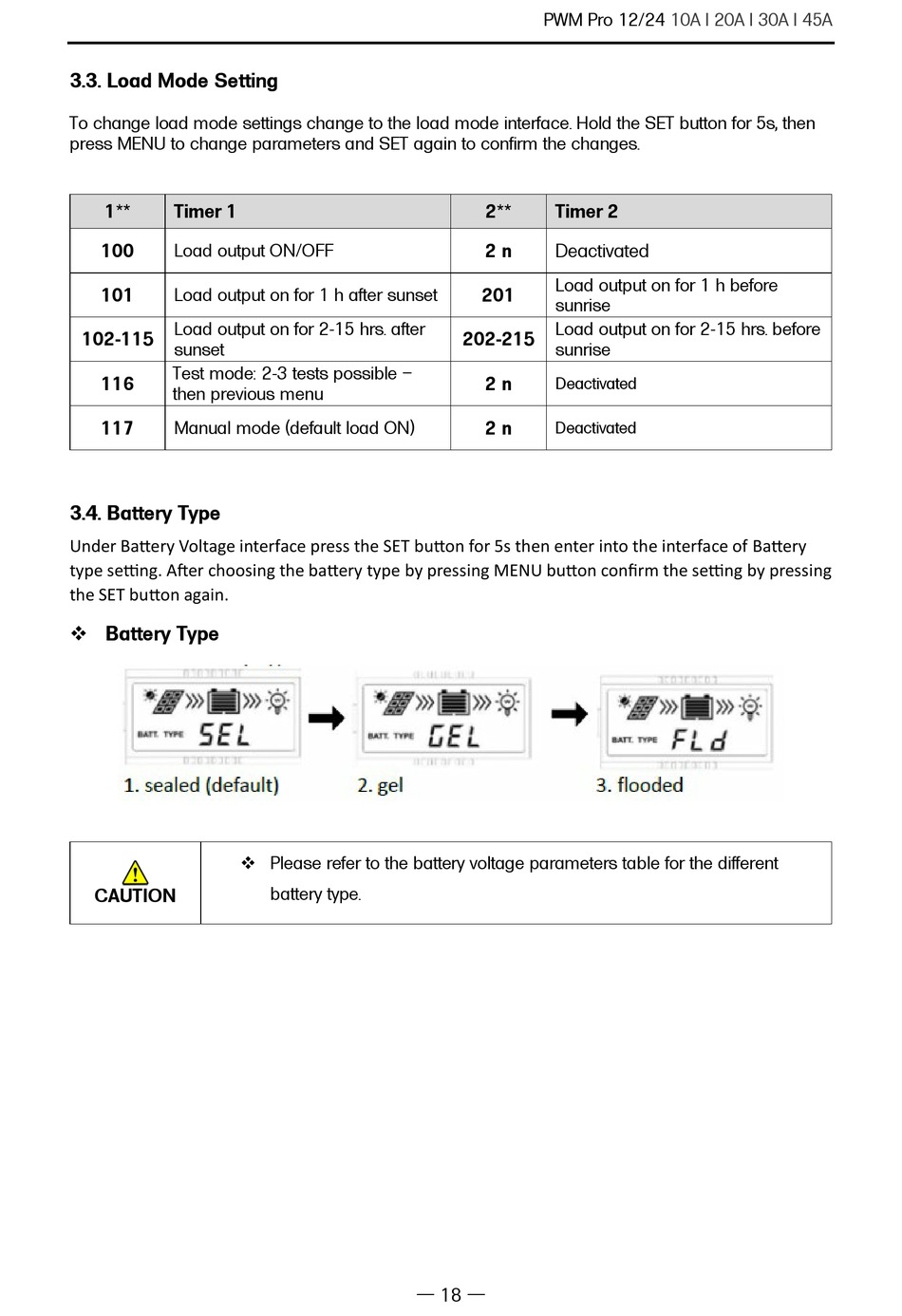

3.3. Load Mode Setting
To change load mode settings change to the load mode interface. Hold the SET button for 5s, then
press MENU to change parameters and SET again to confirm the changes.
1** Timer 1
100
Load output ON/OFF
101
Load output on for 1 h after sunset
Load output on for 2-15 hrs. after
102-115
sunset
Test mode: 2-3 tests possible –
116
then previous menu
117
Manual mode (default load ON)

3.4. Battery Type

Under Batery Voltage interface press the SET buton for 5s then enter into the interface of Batery
type se�ng. A�er choosing the batery type by pressing MENU buton confirm the se�ng by pressing
the SET buton again.
 Battery Type
CAUTION
 Please refer to the battery voltage parameters table for the different
battery type.
PWM Pro 12/24
2** Timer 2
2 n
Deactivated
Load output on for 1 h before
201
sunrise
Load output on for 2-15 hrs. before
202-215
sunrise
2 n
Deactivated
2 n
Deactivated
— 18 —
10A | 20A | 30A | 45A
