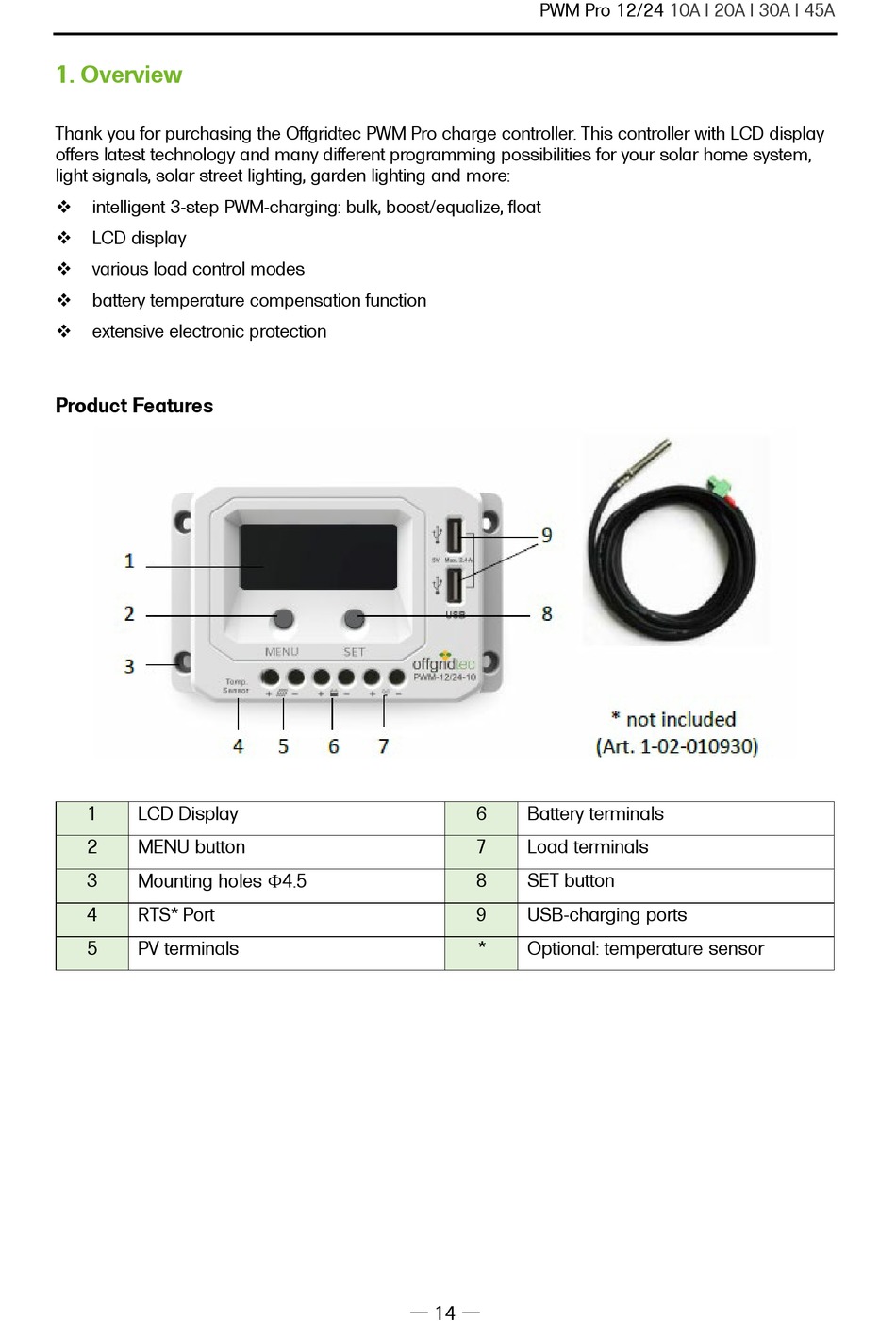

1. Overview

Thank you for purchasing the Offgridtec PWM Pro charge controller. This controller with LCD display
offers latest technology and many different programming possibilities for your solar home system,
light signals, solar street lighting, garden lighting and more:
intelligent 3-step PWM-charging: bulk, boost/equalize, float

LCD display

various load control modes

battery temperature compensation function

extensive electronic protection


Product Features

1 LCD Display
Mounting holes Φ4.5
2 MENU button
3
4 RTS* Port
5 PV terminals
PWM Pro 12/24
6 Battery terminals
7 Load terminals
8 SET button
9 USB-charging ports
* Optional: temperature sensor
— 14 —
10A | 20A | 30A | 45A
