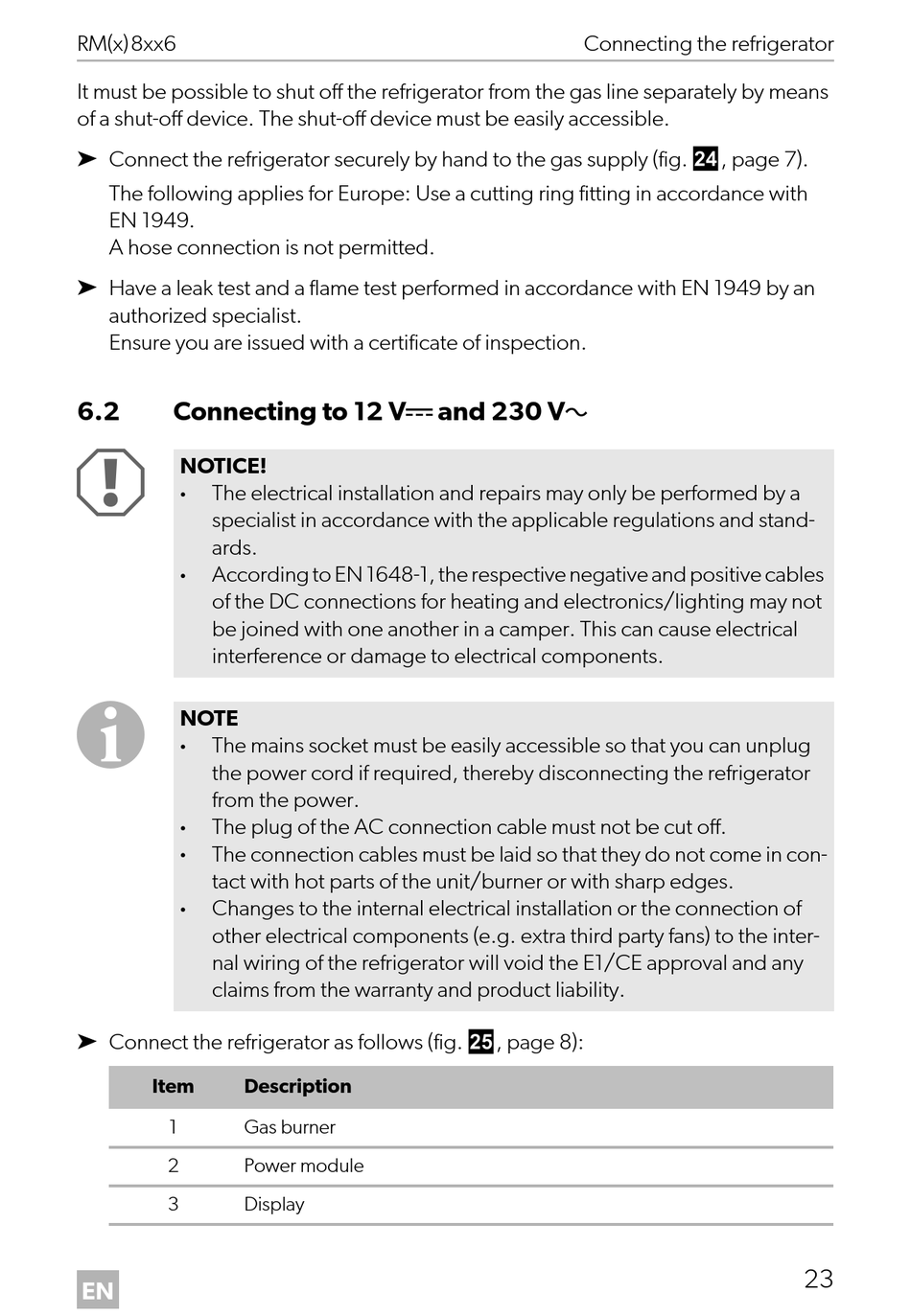

Dometic 8 Serie Montageanleitung Seite 23

RM(x)8xx6
It must be possible to shut off the refrigerator from the gas line separately by means
of a shut-off device. The shut-off device must be easily accessible.
➤ Connect the refrigerator securely by hand to the gas supply (fig. n, page 7).
The following applies for Europe: Use a cutting ring fitting in accordance with
EN 1949.
A hose connection is not permitted.
➤ Have a leak test and a flame test performed in accordance with EN 1949 by an
authorized specialist.
Ensure you are issued with a certificate of inspection.
6.2 Connecting to 12 Vg and 230 Vw
A
NOTICE!
•
The electrical installation and repairs may only be performed by a
specialist in accordance with the applicable regulations and stand-
ards.
•
According to EN 1648-1, the respective negative and positive cables
of the DC connections for heating and electronics/lighting may not
be joined with one another in a camper. This can cause electrical
interference or damage to electrical components.
I
NOTE
•
The mains socket must be easily accessible so that you can unplug
the power cord if required, thereby disconnecting the refrigerator
from the power.
•
The plug of the AC connection cable must not be cut off.
•
The connection cables must be laid so that they do not come in con-
tact with hot parts of the unit/burner or with sharp edges.
•
Changes to the internal electrical installation or the connection of
other electrical components (e.g. extra third party fans) to the inter-
nal wiring of the refrigerator will void the E1/CE approval and any
claims from the warranty and product liability.
➤ Connect the refrigerator as follows (fig. o, page 8):
Item Description
1 Gas burner
2 Power module
3 Display
EN
Connecting the refrigerator
23
