UK

The water supply, temperature and pressure must be compatible with the ratings on the machine's
nameplate.

If the hardness of the water is greater than 14 F (8 dH), we recommend using an internal water
softener (available on request). If the hardness of the water is greater than 35 F (19.5 dH), install
and external water softener upline of the solenoid valve.

If the water has a very high residual concentration of high conductivity minerals, we recommend
installing a demineralisation system.
Free drain
Max.
1 m
With pump (available on request)

The rinse aid and detergent are dispensed by the machine's integral dispenser (depending on
model).

The dose is set by the installer in relation to the hardness of the water, and he also calibrates the
dispensers themselves.
 Before calibrating them, fill the dispenser supply tubes with their respective product.
 The units are calibrated with the adjuster screws, or directly with the control panel (as applicable).

The level of fluid in the container must be sufficient for priming; do not allow it to drain completely or
top it up with corrosive or impure product.
NEVER use CHLORINE or HYPOCHLORITE based detergents.
We recommend installing an automatic detergent dispenser.

This appliance is intended solely for the use for which has been designed. Any other use is improper
and hazardous.

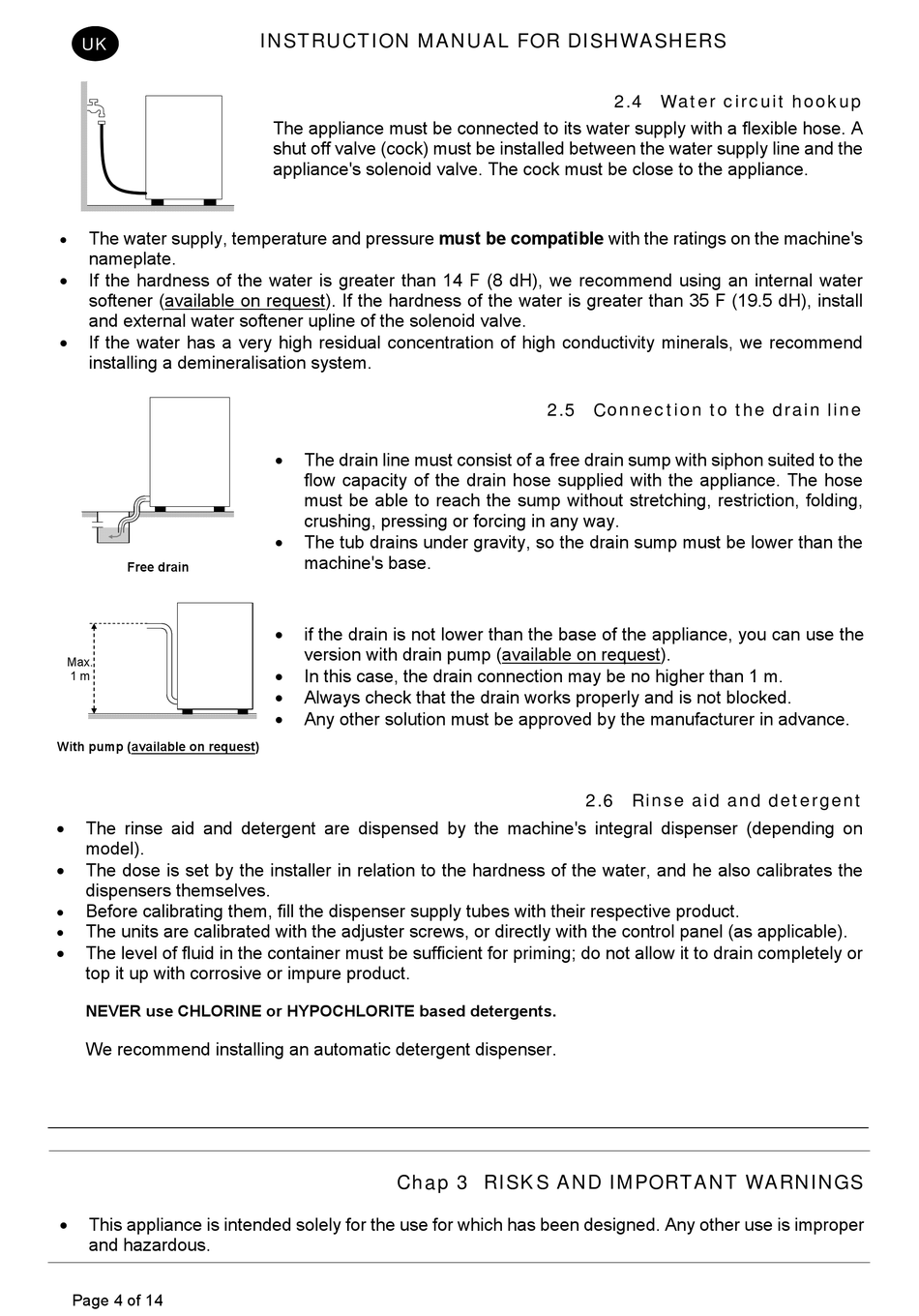

Page 4 of 14
INSTRUCTION MANUAL FOR DISHWASHERS
The appliance must be connected to its water supply with a flexible hose. A
shut off valve (cock) must be installed between the water supply line and the
appliance's solenoid valve. The cock must be close to the appliance.

The drain line must consist of a free drain sump with siphon suited to the
flow capacity of the drain hose supplied with the appliance. The hose
must be able to reach the sump without stretching, restriction, folding,
crushing, pressing or forcing in any way.

The tub drains under gravity, so the drain sump must be lower than the
machine's base.

if the drain is not lower than the base of the appliance, you can use the
version with drain pump (available on request).

In this case, the drain connection may be no higher than 1 m.

Always check that the drain works properly and is not blocked.

Any other solution must be approved by the manufacturer in advance.

Chap 3 RISKS AND IMPORTANT WARNINGS

2.4 Water circuit hookup

2.5 Connection to the drain line

2.6 Rinse aid and detergent
