dirna Bergstrom bycool green line LITE Montageanweisungen Seite 17

LITE

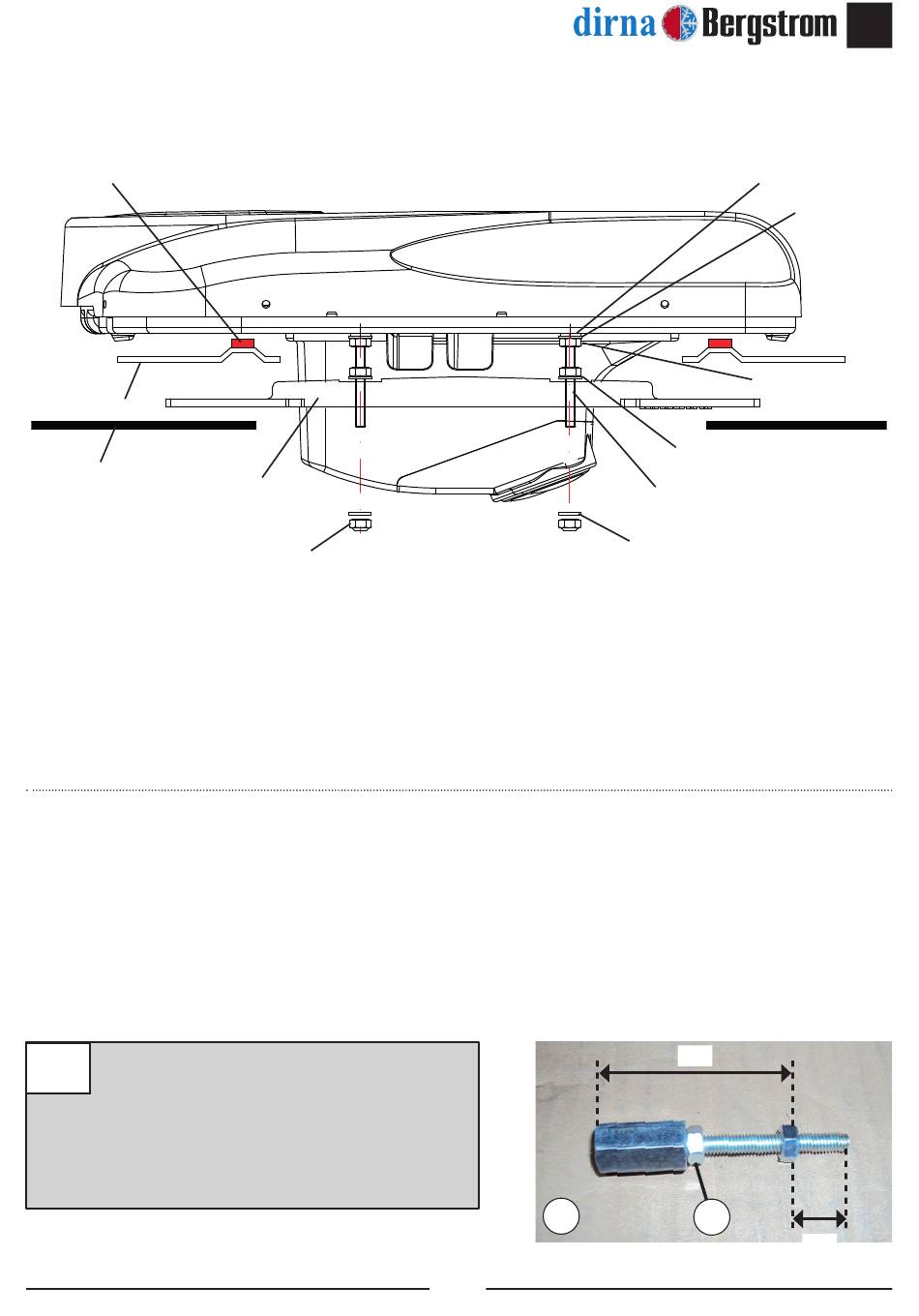

Exploded view through to support piece fastenings
25x15 EPDM seal
Cabin roof
Upholstery
Fastening
Screw on (1) hexagonal spacer and (2) M6/100
11
nuts on each M6/100x75 stud and leave at the
indicated measurements. Tighten the nut (*)
against the hexagonal spacer.
(A): (2) 80 mm
(2) 98 mm
support
M8/125 Self-
locking nut
11
17
Rubber washer
Ø8 Flat wide-
rimmed washer
M8/125 Nut
6 mm spacer
M8/125x80 Stud
Ø8 Flat wide-
rimmed washer
A
*
EN
®
10
