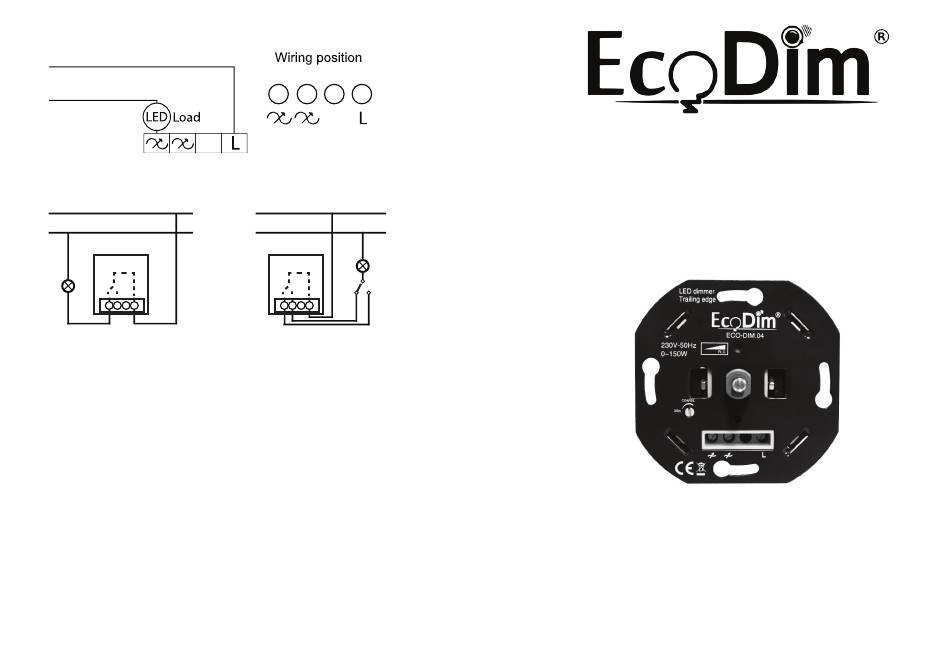

Connection diagram

(Phase wire, usually brown)
L Line
N Line
(Switch wire, usually
black)
One-way switching
L Line L Line
N Line N Line
MIN. set up
Use the MIN meters to set the minimum light level and stability.
Min. set light level:
Switch on the lighting using the dimmer shaft. Then turn the dimmer shaft
as far to the left as possible (minimum light output). Are the lamps flashing?
Then slowly turn the MIN potentiometer clockwise with a screwdriver
for stable light. Is the light already stable? Then slowly turn the MIN
counterclockwise for even better dimmability until the lights start flashing
just before the point. That is the best dimmability of these LED lamps.
Two-way switching
L Line L Line
N Line N Line
Manual
Led dimmer Phase cut-off / trailing edge
ECO-DIM.04
Please note:
- This is a two-wire dimmer that needs to be connected as shown under the
heading Connection diagram.
- Installing the dimmer on a mains power supply of 230V needs to be done by a
qualified professional and should take into account any national regulations.
Ensure that the electricity is switched off during installation.
- No more than one dimmer can be connected in parallel.
