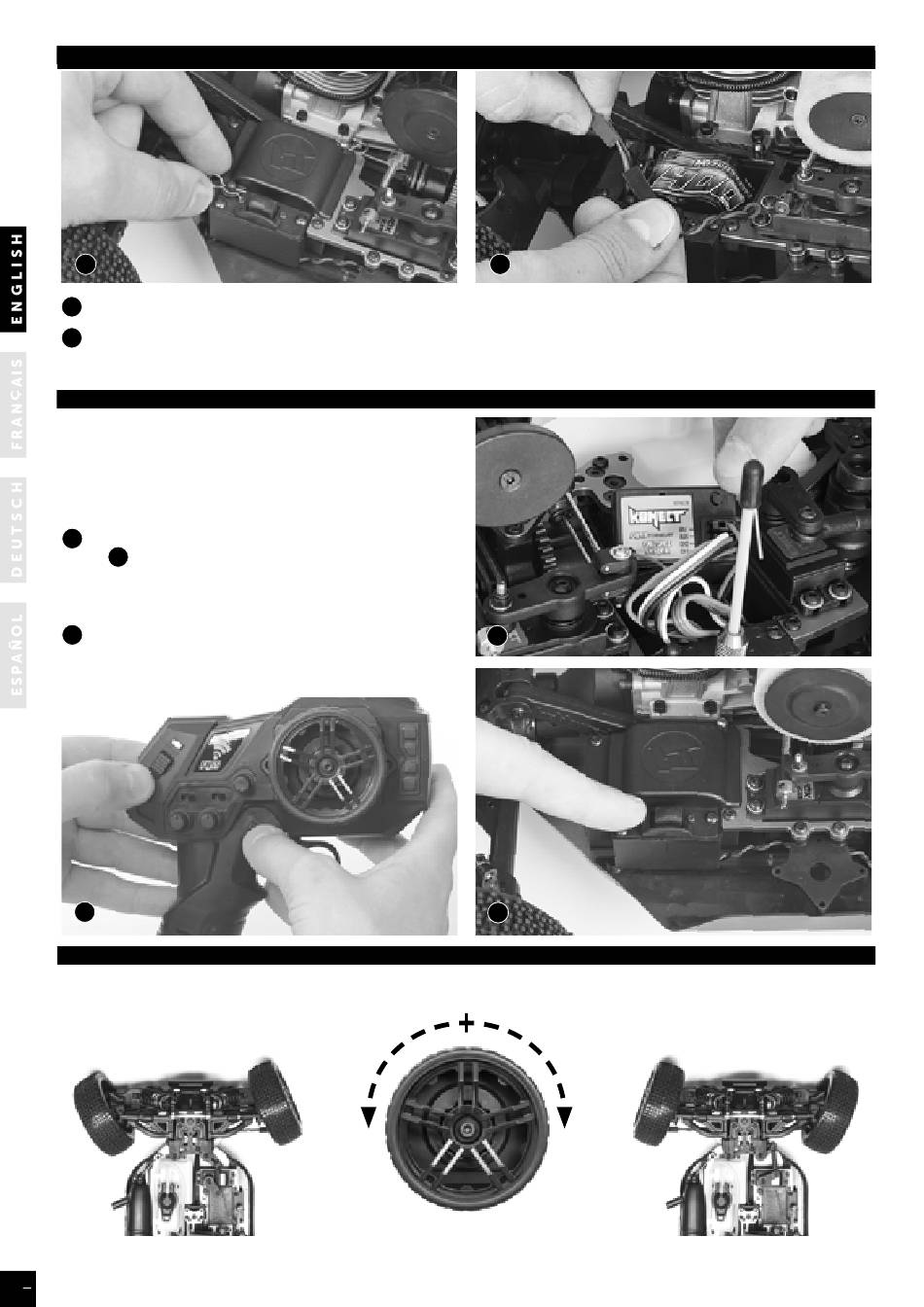

INSTALL THE RECEIVER BATTERY
KT2S TRANSMITTER FUNCTIONS
A
A
Remove the 2pcs receiver box clips from the cover of the receiver box.
B
Install the battery case in the receiver box properly and connect the red plug.
You can close the receiver box cover.
BIND
Pairing your receiver to your KT2S+
Place model on a block to prevent wheels from touching the ground.
Connect battery to ESC. Fix the wire correctly with the provided connectors.
You must check the signal of transmitter and receiver before you
operating it at first.
Make sure TH Trim is on neutral
- TURN OFF THE TRANSMITTER AND RECEIVER -
C
Press and Hold the BIND button on the receiver while turning on the
D
receiver .
Release the BIND button when the LED flashes red.
While the red LED flashes, press the BIND button to select the frame rate.
- Faster flashes= high frame rate (7ms), for digital servo
- Slower flashes= low frame rate (15ms), for analog servo
E
Press and Hold the BIND/EPA key of the Transmitter (1), and then turn on the
transmitter (2), LED flahes green and the Transmitter will communicate with the
receiver. Release the BIND/EPA button when the receiver LED is solid red, and the
transmitter is solid green, then your receiver is paired with your transmitter.
(2)
E

HOW TO CONTROL YOUR MODEL

6
(1)
LEFT
If the wheels operate in the opposite direction,
operate the servo reverse switch (ST in position NOR).
B
C
D
NEUTRAL
RIGHT
