Pilz PZE 9P Betriebsanleitung
Vorschau ausblenden Andere Handbücher für PZE 9P:

Werbung

20 545-06

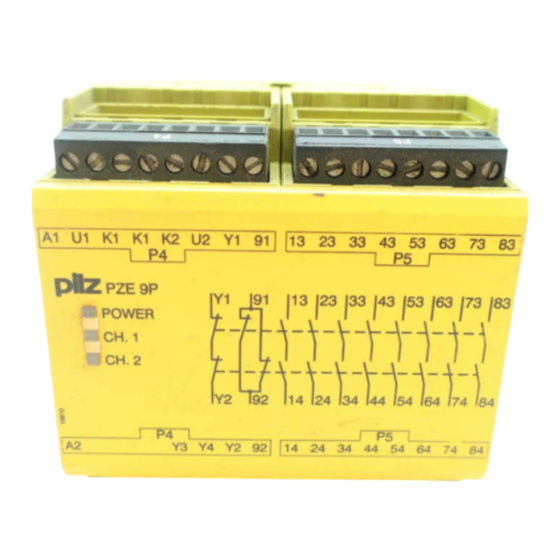

PZE 9P
Sicherheitsbestimmungen
• Das Gerät darf nur von Personen installiert
und in Betrieb genommen werden, die mit
dieser Betriebsanleitung und den gelten-
den Vorschriften über Arbeitssicherheit
und Unfallverhütung vertraut sind.
Beachten Sie die VDE- sowie die örtlichen
Vorschriften, insbesondere hinsichtlich der
Schutzmaßnahmen.
• Halten Sie beim Transport, bei der
Lagerung und im Betrieb die Bedingungen
ein, wie sie unter "Technische Daten"
angegeben sind.
• Durch Öffnen des Gehäuses oder
eigenmächtige Umbauten erlischt die
Gewährleistung.
• Montieren Sie das Gerät in einen Schalt-
schrank; Staub und Feuchtigkeit können
sonst zu Beeinträchtigungen der Funktio-
nen führen.
• Sorgen Sie an allen Ausgangskontakten
bei kapazitiven und induktiven Lasten für
eine ausreichende Schutzbeschaltung.
Bestimmungsgemäße Verwendung
Der Kontaktblock PZE 9P dient als Erweite-
rungsgerät zur Kontaktverstärkung und
Kontaktvervielfältigung.
Das Gerät ist bestimmt für den Einsatz in
• Anwendungsschaltungen mit NOT-AUS-
Schaltgeräten, Schutztürwächtern und
Zweihandbedienungsrelais
• Sicherheitsstromkreisen nach VDE 0113
Teil 1 und EN 60204-1
Das Gerät darf nur mit Grundgeräten ver-
wendet werden, die einen Rückführkreis
besitzen.
Gerätebeschreibung
Der Kontaktblock ist in einem P-99-Gehäuse
untergebracht. Die Versorgungsspannung
beträgt 24 V AC/DC oder 100 - 240 V AC.
Merkmale:
• Relaisausgänge:
8 Sicherheitskontakte (S), zwangsgeführt
1 Hilfskontakt (Ö), zwangsgeführt
• Sichere Trennung der Sicherheitskontakte
23-24 ... 83-84
- von den Eingangskreisen K1, U1, K2,
U2, Y3, Y4,
- dem Rückführkreis Y1-Y2,
- und dem Hilfskreis 91-92.
• Basisisolierung der Sicherheitskontakte
13-14 zu allen anderen Kreisen
• LED als Versorgungsspannungsanzeige
• LEDs als Schaltzustandsanzeige
• Anschluss für Rückführkreis
• Einkanalige Ansteuerung ohne Quer-
schlusserkennung
• Zweikanalige Ansteuerung mit oder ohne
Querschlusserkennung
Die Sicherheitseinrichtung bleibt auch
wirksam bei:
- Spannungsausfall
- Ausfall eines Bauteils
- Spulendefekt
Safety Regulations
• The unit may only be installed and
operated by personnel who are familiar
with both these instructions and the current
regulations for safety at work and accident
prevention. Follow local regulations
especially as regards preventative
measures.
• Transport, storage and operating conditions
should all conform to the standards as
stated under "Technical details".
• Any guarantee is void following opening of
the housing or unauthorised modifications.
• The unit should be panel mounted,
otherwise dampness or dust could lead to
functional impairment.
• Adequate fuse protection must be provided
on all output contacts with capacitive and
inductive loads.
Typical Applications
The contact block PZE 9P is an expander
module used to provide additional contacts.
The unit is for use in
• Applications together with Emergency Stop
Relays, Safety Gate Monitors and Two-
Hand Controls
• Safety circuits according to VDE 0113
part 1 and EN 60204-1
The unit may only be used together with a
base unit which has a feedback control loop.
Description
The Contact Block is enclosed in a P-99
housing. The supply voltage is 24 V AC/DC or
100 - 240 V AC.
Features:
• Relay outputs:
8 safety contacts (n/o), positive-guided
1 auxilliary contact (n/c), positive-guided.
• Safe separation of safety contacts 23-24 ...
83-84
- from input circuits K1, U1, K2, U2, Y3,
Y4,
- feedback loop Y1-Y2,
- and auxiliary circuit 91-92.
• Basic insulation of safety contacts 13-14 to
all other circuits
• LED Display for Operating Voltage
• LED's for switching positions of all output
relays
• Connections for a feedback control loop
• Single channel operation without short-
circuit recognition
• Two channel operation with or without
short-circuit recognition
The safety function remains effective in the
following cases:
- Power supply failure
- Component failure
- Coil defect in a relay
- 1 -
Conseils préliminaires
• La mise en oeuvre de l'appareil doit être
effectuée par une personne spécialisée en
installations électriques, en tenant compte
des prescriptions des différentes normes
applicables (NF, EN, VDE..), notamment
au niveau des risques encourus en cas de
défaillance de l'équipement électrique.
• Pour le transport, le stockage et
l'utilisation, respectez les exigences des
normes specifiées (voir „Caractéristiques
techniques").
• Toutes interventions sur le boîtier
(ouverture du relais, échange ou
modification de composants, soudure etc..)
faites par l'utilisateur annulent la garantie.
• Montez l'appareil dans une armoire
électrique à l'abri de l'humidité et de la
poussière.
• Assurez-vous du pouvoir de coupure des
contacts de sortie en cas de charges
inductives ou capacitives.
Domaines d'utilisation
Le relais PZE 9P est un bloc d'extension qui
permet d'augmenter le nombre et le pouvoir
de coupure des contacts de sécurité.
Le PZE 9P peut être utilisé avec :
• les relais d'arrêt d'urgence, les relais de
surveillance protecteurs et les commandes
bimanuelles.
• dans les circuits de sécurité d'après les
normes VDE 0113 T1 et EN 60204-1
Le PZE 9P ne peut être piloté que par des
relais de sécurité ayant une boucle de retour.
Description de l'appareil
Inséré dans un boîtier P-99, le relais PZE 9P
est alimenté en 24 V AC/DC ou 100 - 240 V
AC.
Particularités :
• Contacts de sortie :
8 contacts à fermeture de sécurité et 1
contact à ouverture, par contacts liés
• LED d'indication présence tension.
• Séparation galvanique entre les contacts
de sécurité 23-24 ... 83-84 et
- les circuits d'entrée K1, U1, K2, U2, Y3,
Y4,
- la boucle de retour Y1-Y2,
- et le circuit d'information 91-92.
• Isolation de base entre les contacts de
sécurité 13-14 et tous les autres circuits.
• LEDs de visualisation des relais internes
• Bornes pour boucle de retour
• Commande par 1 canaux sans détection
des courts-circuits
• Commande par 2 canaux avec ou sans
détection des courts-circuits
La sécurité est garantie, même dans les cas
suivants :
- Défaillance tension
- Défaillance d'un composant
- Défaillance bobine
