Connection of the components
Insert the USB cable of the AT-controller into one of the USB sockets of the power box (2). Set the
switch of the power box to "aut"(automatic). On "man"(manual) all plugs are switched permanently
on.
Now, all Interface Boxes ( PC, pH, mV, Density) can be inserted into the other USB sockets of the
power box. Open the interface boxes and connect the corresponding probes.

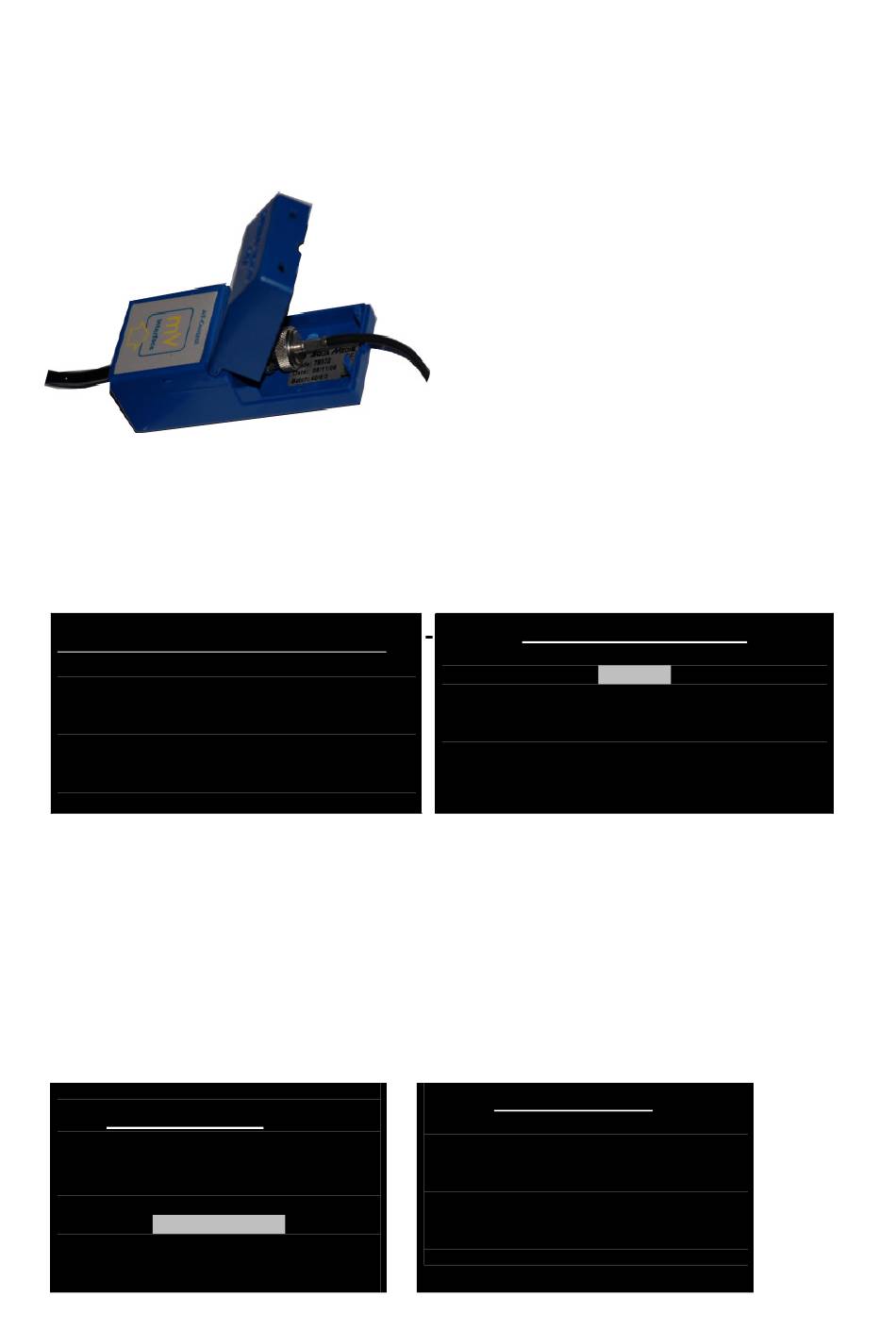

Fig. 5 Interface Box
Connection of the PC-Interface:
Connect the PC-Interface to the PC via USB cable. To program and operate the AT-Control by
a PC, the display of the AT-Control has to show the basic screen with the measuring
data.
Fri 13/09/06
PU01 1 2
Temperature 19,5°C
Fig. 6 Basic Screen
Programming without PC
In this case, the control of the unit is managed only by the AT-Controller (1).
The unit recognises the connected Interface boxes automatically. The name is confirmed with
"Enter" or changed by the arrow keys.
Now, you change with "Enter" from the basic menu to the main menu. Here, you can adjust the
line "settings" and then the submenus "language" and "time/date" with the arrow keys.
By pressing "ESC" several times, you come back to the settings menu. Move the cursor to "Power
Box". Here,you can adjust timer programs.
____
Power Box______
Change Name
Manual Commands
Program Timer
Wave effect
Tide effect
Fig. 8 Program Timer
20.30
3 4 5 6
The T/level Interface can be used with 2 probes,
either 2 temperature probes, 2 level probes or
one of each. However, 2 audio jack connections
for temperature or level probes are directly at the
power box. For these two, no Interface is needed.
Density Interface
Conductivity Interface
Sensor: Attention, when you insert the sensor
plug into the Interface Box. There is only one
way. Do not use force. For the measurement, the
holes in the shaft of the density probe have to be
immersed.
____
Main Menu______
Power Box
Function Keys
Agenda
Temperature
Fig. 7 Main Menu
____
HQI, Light______
From 10.00
on 0 min
Mo Tu We Th
Fig. 9 Timer Adjustion
and Density-Sensor,
and Conductivity-
Settings
To 22.00
off 0 min
Fr Sa Su
