Quick guide

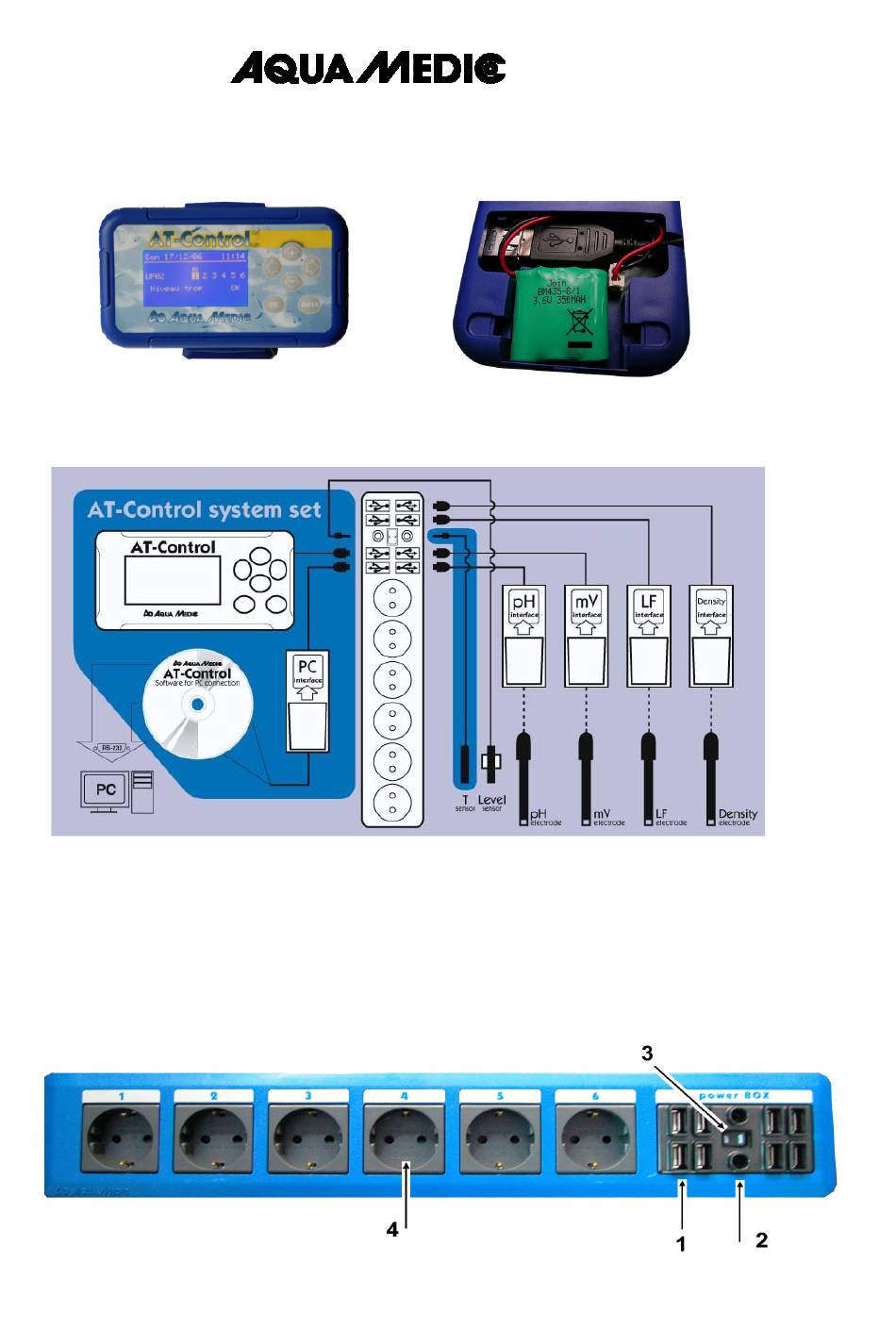

Mounting the controller (1):
Mount the USB plug at the socket at the back of the controller. Insert battery and close the lid.
Fig. 1: front of AT-Controller
Fig. 3: AT-Controller connections
1. Controller
2. Power Box
3. USB connections
4. PC Interface
5. CD (software for PC)
Fig. 4: Power Box:
6. pH Interface (with connected probe)
7. mV Interface (with connected probe)
8. Conductivity Interface (with connected probe)
9. Density Interface(with connected probe)
10. Temperature and level probe
11. PC
1. USB ports 2. Audio Jack ports for temperature and level probes
3. Automatic/manual switch 4. Power sockets
AT-Control
Fig. 2: back of AT-Controller
