EcoDim ECO-DIM.01 Handbuch Seite 4

ECO-DIM.01
Input voltage:
Frequency:
Maximum wattage:
Minimum wattage:
Dimming technology:
Bulbs with electronic transformers: 5-300VA
Halogen and incandescent bulbs:
Suitable brands of cover material:
√ Berker by Hager
√ Busch-Jaeger
√ GIRA
√ JUNG
√ Merten by Schneider
√ NIKO
√ PEHA
Suitable for:
- Suitable for new installations and retrofit bulbs.
- Two-wire connection - no neutral wire needed.
- Soft start system for longer lifespan of LED bulbs.
- Built-in protection against short circuits, overloads and extreme
temperatures.
220-240V AC
50Hz
Trailing Edge 300W (LED),
Leading Edge 150W (LED)
0W
Phase cut (leading edge or
trailing edge) (R, L, C)
5-300VA
For Busch-Jaeger only
For JUNG only
For Busch-Jaeger en NIKO only

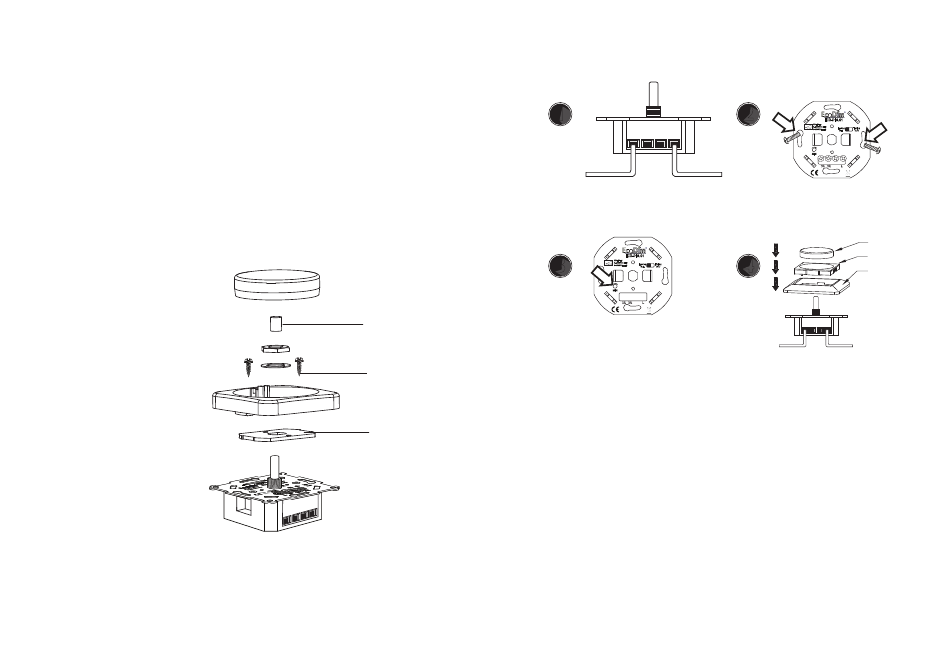

Installation
1 2 3 4 5
N
1 2 3 4 5 1 2 3
Step 1: Always make sure that the electricity is turned off during
installation. Then connect the power wires as indicated in the
"Connection diagram".
Step 2: Now install the dimmer in the flush-mounting box.
Step 3: Switch the electricity back on. Switch on the connected
lamps using the dimmer shaft. Now set the MIN, as indicated
under "MIN set up".
Step 4: Replace the cover frame and the dimmer knob on the
dimmer.
1 2 3 4 5
L
Rotary Knob
4 5 Secondary Plate
Front Panel
N L
