MIDI IN 1
Sequencer
volume of
generator
GM#1
MASTER
master
volume
The LEDs on the front panel indicate the following conditions:
• MIDI IN 1&2 and AUDIO: leds flashing = data being received.
• PC LINK:led on = EXPANDER recognised by the computer
• ALL: leds switching on/off with gradual dimming effect = EXPANDER on but
unused for some time.
• ALL: leds switching on/off in rotation = downloading contents of Sound Card
into EXPANDER's internal memory.
The EXPANDER has 2 General MIDI sound generators:
• #1
: 16 channels • max. 63 note polyphony
accessible by USB Port (USB Speaker 1) and MIDI IN 1
• #2
: 16 channels • max. 61 note polyphony
accessible by USB Port (USB Speaker 2) and MIDI IN 2 (channel 1)
The EXPANDER's operating system can be upgraded using a very simple procedure:
simply run the special MIDI upgrade file using a device (computer, sequencer, etc.)
connected to the EXPANDER by USB or by MIDI.
IMPORTANT: wait until the operation has been completed before switching off the
EXPANDER or the device being used to send the file.
MIDI IN 1 (led)
Sequencer
MIDI IN 2
flashes when the
Keyboard
EXPANDER is receiving
volume of
MIDI events by:
generator
• MIDI IN input 1
• USB port ch1..16
GM#2
AUDIO AUDIO (led)
mp3 mp3
audio
flashes when the
EXPANDER is
streaming
receiving audio
volume
streaming by USB
7

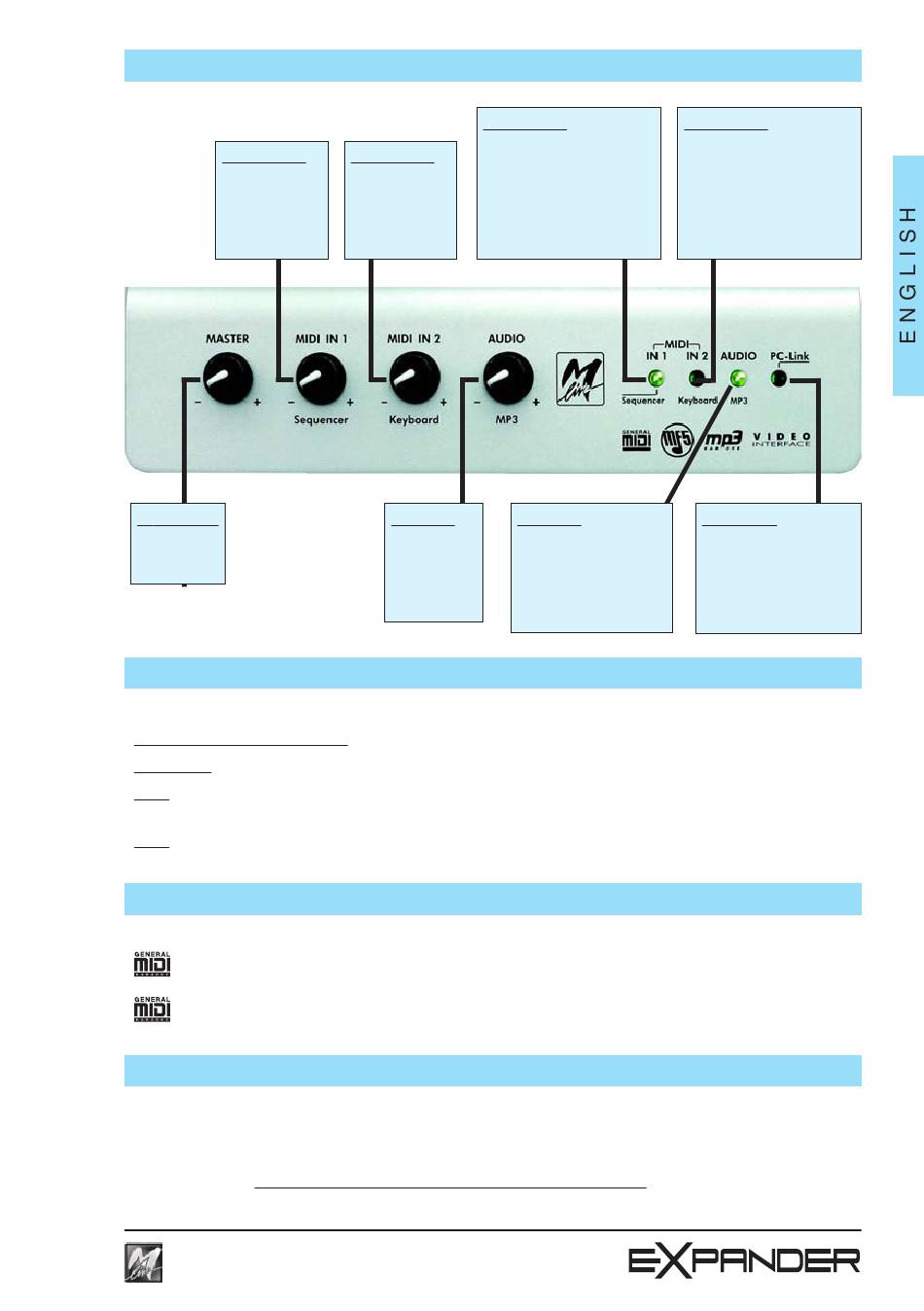

CONTROL PANEL

MIDI IN 2 (led)
Keyboard
flashes when the
EXPANDER is receiving
MIDI events by:
• MIDI IN input 2
• USB port ch17..32
PC-Link (led)
lights up when the
EXPANDER is
recognised by the
computer
connected by USB
KEY TO LEDs
2 GENERAL MIDI MODULES

UPGRADING THE FIRMWARE
