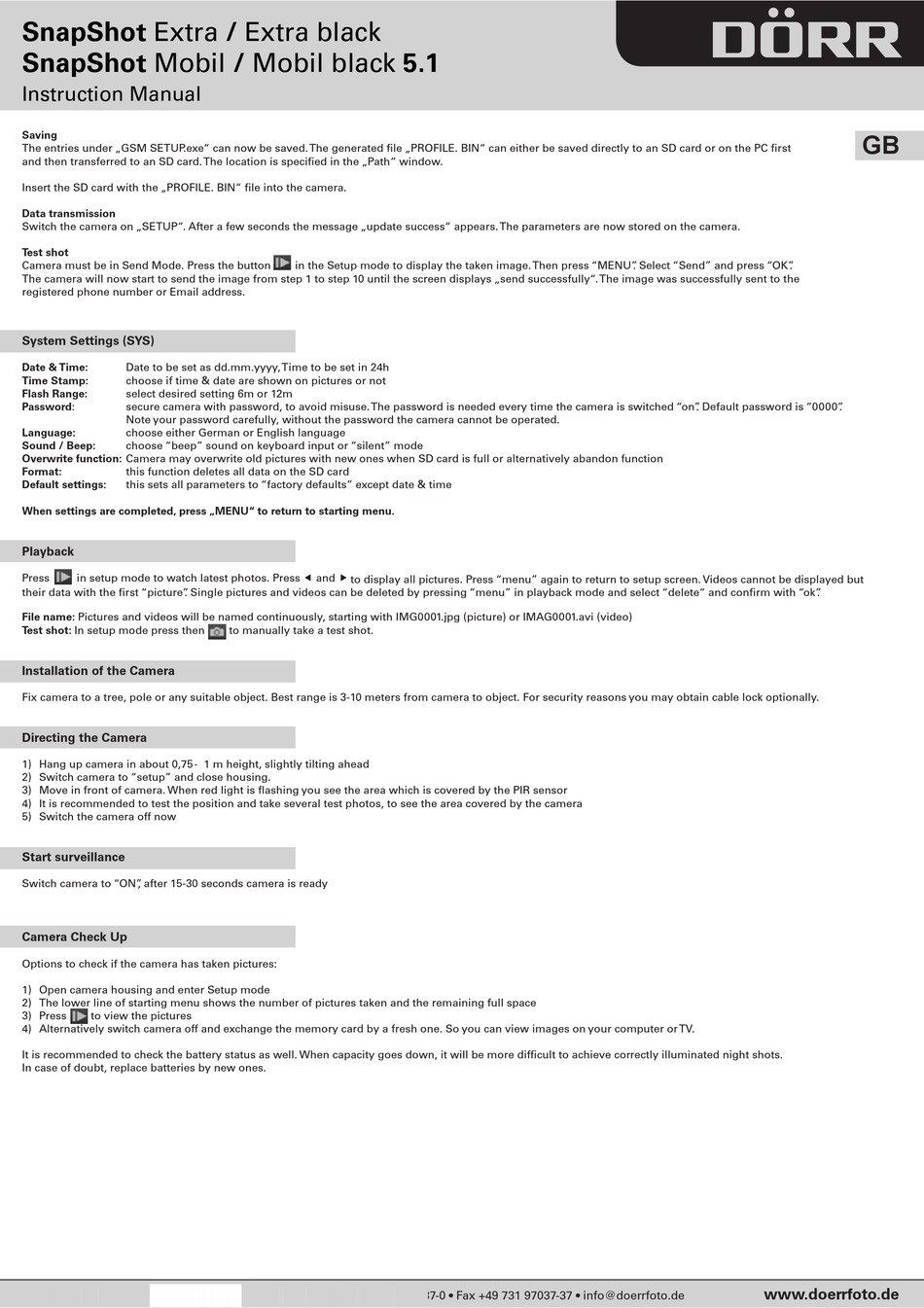

SnapShot Extra / Extra black
SnapShot Mobil / Mobil black 5.1
Instruction Manual
Saving
The entries under „GSM SETUP .exe" can now be saved. The generated file „PROFILE. BIN" can either be saved directly to an SD card or on the PC first
and then transferred to an SD card. The location is specified in the „Path" window.
Insert the SD card with the „PROFILE. BIN" file into the camera.
Data transmission
Switch the camera on „SETUP". After a few seconds the message „update success" appears. The parameters are now stored on the camera.
Test shot
Camera must be in Send Mode. Press the button
The camera will now start to send the image from step 1 to step 10 until the screen displays „send successfully". The image was successfully sent to the
registered phone number or Email address.
System Settings (SYS)
Date & Time:
Date to be set as dd.mm.yyyy, Time to be set in 24h
Time Stamp:
choose if time & date are shown on pictures or not
Flash Range:
select desired setting 6m or 12m
Password:
secure camera with password, to avoid misuse. The password is needed every time the camera is switched "on" . Default password is "0000" .
Note your password carefully, without the password the camera cannot be operated.
Language:
choose either German or English language
Sound / Beep:
choose "beep" sound on keyboard input or "silent" mode
Overwrite function: Camera may overwrite old pictures with new ones when SD card is full or alternatively abandon function
Format:
this function deletes all data on the SD card
Default settings:
this sets all parameters to "factory defaults" except date & time
When settings are completed, press „MENU" to return to starting menu.
Playback
Press
in setup mode to watch latest photos. Press and to display all pictures. Press "menu" again to return to setup screen. Videos cannot be displayed but
their data with the first "picture" . Single pictures and videos can be deleted by pressing "menu" in playback mode and select "delete" and confirm with "ok" .
File name: Pictures and videos will be named continuously, starting with IMG0001.jpg (picture) or IMAG0001.avi (video)
Test shot: In setup mode press then
Installation of the Camera
Fix camera to a tree, pole or any suitable object. Best range is 3-10 meters from camera to object. For security reasons you may obtain cable lock optionally.
Directing the Camera
1) Hang up camera in about 0,75 - 1 m height, slightly tilting ahead
2) Switch camera to "setup" and close housing.
3) Move in front of camera. When red light is flashing you see the area which is covered by the PIR sensor
4) It is recommended to test the position and take several test photos, to see the area covered by the camera
5) Switch the camera off now
Start surveillance
Switch camera to "ON" , after 15-30 seconds camera is ready
Camera Check Up
Options to check if the camera has taken pictures:
1) Open camera housing and enter Setup mode
2) The lower line of starting menu shows the number of pictures taken and the remaining full space
3) Press
to view the pictures
4) Alternatively switch camera off and exchange the memory card by a fresh one. So you can view images on your computer or TV.
It is recommended to check the battery status as well. When capacity goes down, it will be more difficult to achieve correctly illuminated night shots.
In case of doubt, replace batteries by new ones.
DÖRR GmbH • Postfach 1280 • 89202 Neu-Ulm/Germany Fon +49 731 97037-0 • Fax +49 731 97037-37 • info@doerrfoto.de
in the Setup mode to display the taken image. Then press "MENU" . Select "Send" and press "OK" .
to manually take a test shot.
GB
www.doerrfoto.de
