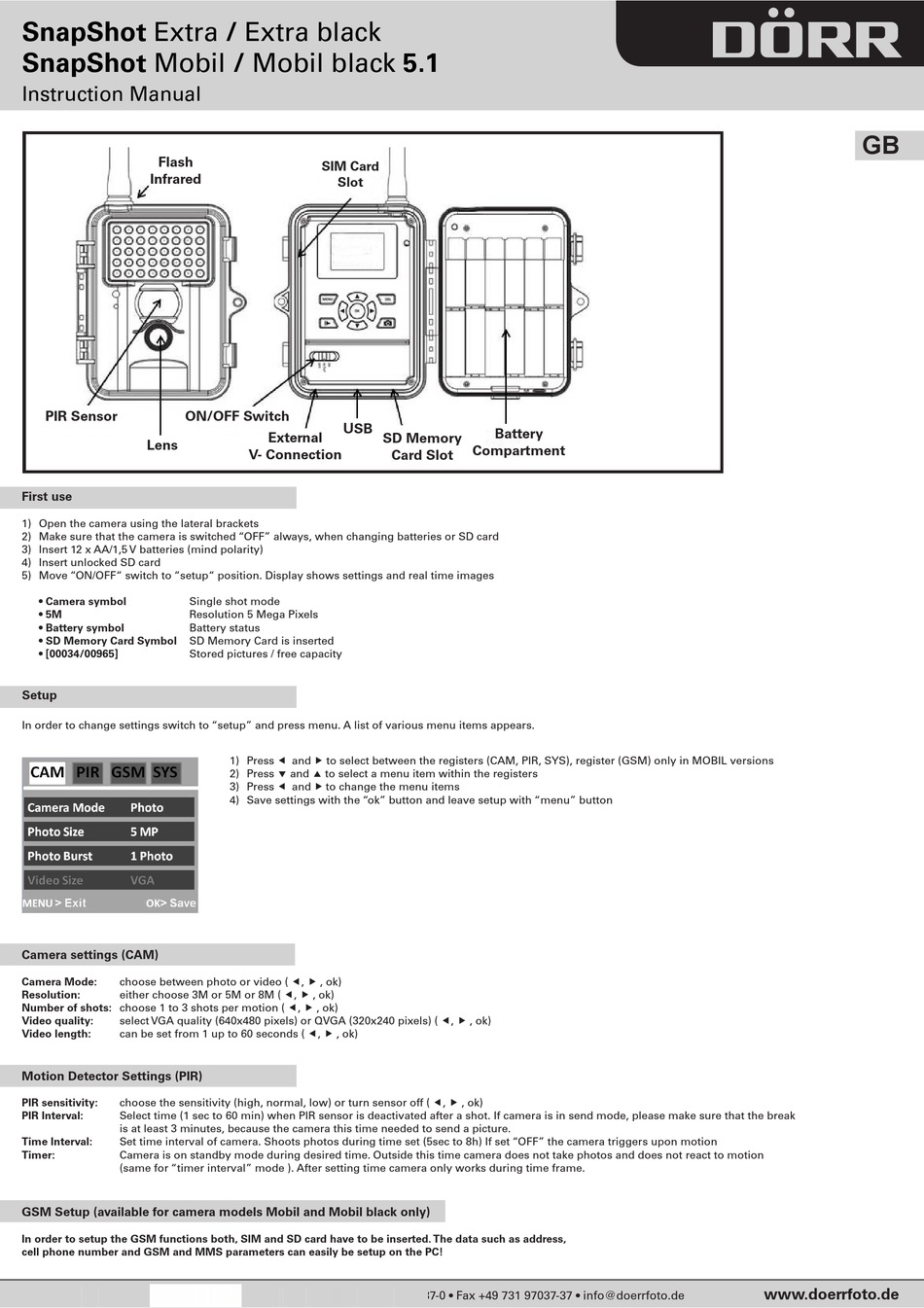

SnapShot Extra / Extra black
SnapShot Mobil / Mobil black 5.1
Instruction Manual
Flash
Infrared
PIR Sensor
ON/OFF Switch
Lens
First use
1) Open the camera using the lateral brackets
2) Make sure that the camera is switched "OFF" always, when changing batteries or SD card
3) Insert 12 x AA/1,5 V batteries (mind polarity)
4) Insert unlocked SD card
5) Move "ON/OFF" switch to "setup" position. Display shows settings and real time images
• Camera symbol
Single shot mode
• 5M
Resolution 5 Mega Pixels
• Battery symbol
Battery status
• SD Memory Card Symbol
SD Memory Card is inserted
• [00034/00965]
Stored pictures / free capacity
Setup
In order to change settings switch to "setup" and press menu. A list of various menu items appears.
Camera settings (CAM)
Camera Mode:
choose between photo or video ( , , ok)
Resolution:
either choose 3M or 5M or 8M ( , , ok)
Number of shots: choose 1 to 3 shots per motion ( , , ok)
Video quality:
select VGA quality (640x480 pixels) or QVGA (320x240 pixels) ( , , ok)
Video length:
can be set from 1 up to 60 seconds ( , , ok)
Motion Detector Settings (PIR)
PIR sensitivity:
choose the sensitivity (high, normal, low) or turn sensor off ( , , ok)
PIR Interval:
Select time (1 sec to 60 min) when PIR sensor is deactivated after a shot. If camera is in send mode, please make sure that the break
is at least 3 minutes, because the camera this time needed to send a picture.
Time Interval:
Set time interval of camera. Shoots photos during time set (5sec to 8h) If set "OFF" the camera triggers upon motion
Timer:
Camera is on standby mode during desired time. Outside this time camera does not take photos and does not react to motion
(same for "timer interval" mode ). After setting time camera only works during time frame.
GSM Setup (available for camera models Mobil and Mobil black only)
In order to setup the GSM functions both, SIM and SD card have to be inserted. The data such as address,
cell phone number and GSM and MMS parameters can easily be setup on the PC!
DÖRR GmbH • Postfach 1280 • 89202 Neu-Ulm/Germany Fon +49 731 97037-0 • Fax +49 731 97037-37 • info@doerrfoto.de
SIM Card
Slot
USB
External
SD Memory
V- Connection
Card Slot
1) Press and to select between the registers (CAM, PIR, SYS), register (GSM) only in MOBIL versions
2) Press and to select a menu item within the registers
3) Press and to change the menu items
4) Save settings with the "ok" button and leave setup with "menu" button
Battery
Compartment
GB
www.doerrfoto.de
