Specifications
Connection voltage: 220-240VAC
Frequency: 50Hz
Dimming technology: Trailing edge (R,C)
Dimmable LED lamps: 0-150W (R,C)
Lamps with electronic transformers: 5-300W
Halogen and incandescent lamps: 5-300W
• Suitable for both retrofit lamp bulbs and new installations.
• Two-wire connection - no neutral wire required.
• Soft start system for longer LED lamp life.
• Built-in protection for temperature protection and overload.
Suitable cover plates brands
• Berker by Hager
• Busch-Jaeger
• GIRA
• JUNG
*NIKO plate is not included. Available separately on the EcoDim website via ED-10072

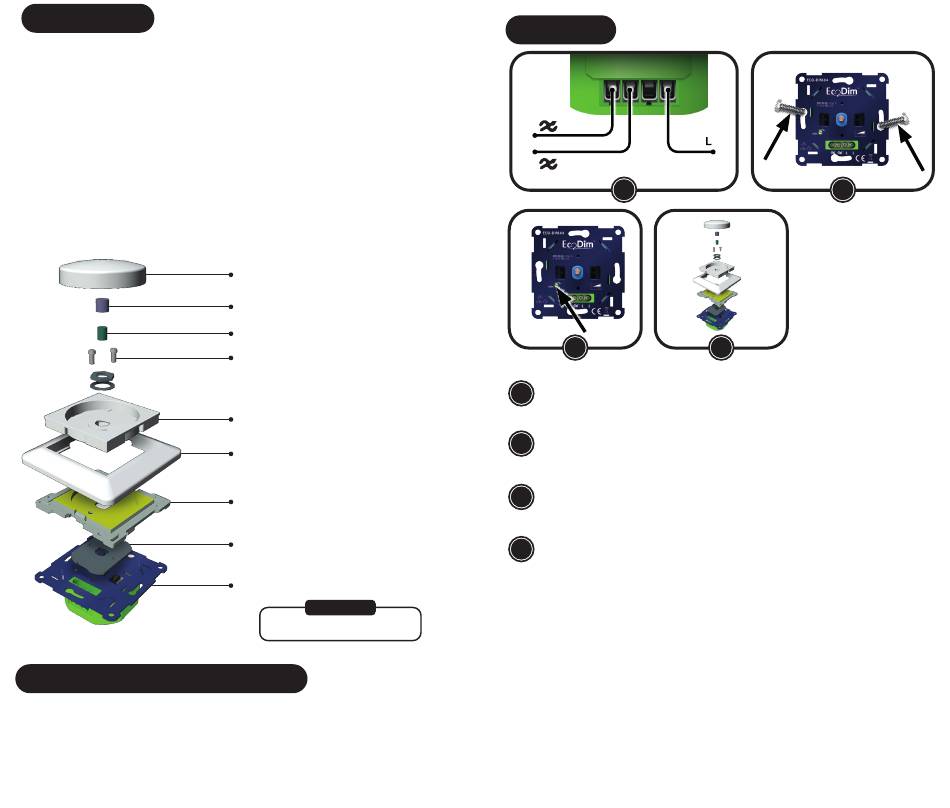

Dimmer knob
Only for NIKO*
Only for Busch-Jaeger
Only for JUNG
Central plate
Cover frame
Only for NIKO*
Only for NIKO* & Busch-Jaeger
Dimmer
*
NIKO
*NIKO plate is not included. Available separately
on the EcoDim website via:
ED-10072
• Kopp
• Merten by Schneider
• Niko*
• PEHA
Installation
1
3
Step 1
1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown in the 'Wiring diagram' .
2
Step 2
Check that the wires are secure, then install the dimmer in the flush-mounted box.
Step 3
3
Switch the electricity on again. Turn on the connected lamps using the dimmer shaft.
Now set the MIN as indicated under 'Setting min. light level' .
4 Step 4
Replace the cover frame, central plate and dimmer button on the dimmer.
