Battery Type Selection /Setup Procedure:
1. Wire the unit according to the instructions but do not connect the
output side of the unit to the output battery bank if you require a battery
type adjustment, or, in the event of a re-adjustment being made on an
excising installation then remove the output from the output battery bank
(leaving the input connected) during the procedure.
2. Have a magnet in one hand, at least 14 inches away from the product
(so as not to cause any premature activation). Please be ready as you
only have about 10 sec to enter the adjustment window once the product
is activated.
3. Activate the unit (switch on) the start up sequence will be 2 x green
LEDs for about 5 seconds (LED1 on solid and LED2 flashing) then 2 red
LEDs for about 2 sec (LED1 on solid and LED2 flashing), this is simply to
confirm the LEDs are ok and the correct way round (If 2 yellow lights
appear then the unit has not been factory set. This should not happen).
4. Then the 2 green LEDs will start to flash slowly for 10 seconds. This is
the window where you must apply the magnet if you wish to change the
battery chemistry. Apply and hold the magnet at the region marked
'magnetic switch position'. It will then confirm that you are in battery
select mode by the two green LEDs flashing faster. You then must
remove the magnet.
5. To cycle through the battery types the 2 flashing green lights will stop
flashing. Re-apply the magnet to the magnetic switch position. The LEDs
will now run through the battery type options, with a different option being
presented every 4 seconds. When the battery type required is presented
simply remove the magnet (please note with strong magnets it may skip
to the next battery type, please make sure it locks onto the battery type
you want). If the wrong battery type is locked then simply re-apply the
magnet again. If the battery type is ok then keep the magnet well away
and the software will permanently lock this battery type into the software
after about 20 seconds of no magnetic activity. Once it has locked then it
will remain there until it is required to re adjust in the future.
Fault condition: for safety reasons if the output battery is very
discharged this unit will not work. Also your batteries could be
extremely badly damaged in this event due to extreme discharge.
Output battery on 12V if less than 6.5V, on 24V if less than 13V and
on 36V if less than 19.5V, 48V less than 26.0V, the charger will not
work.
Colour code Battery Type
GEL I
AGM I
Sealed Lead Acid
GEL II
Lithium LiFePO
AGM II
Open Lead Acid
Calcium
(V) (V)
Bulk Cond Float
14.0 13.85 13.7
14.1 13.75 13.4
14.4 14.15 13.6
14.4 14.0 13.8
14.4 13.8 13.8
4
14.6 14.1 13.7
14.8 14.0 13.3
15.1 14.35 13.6

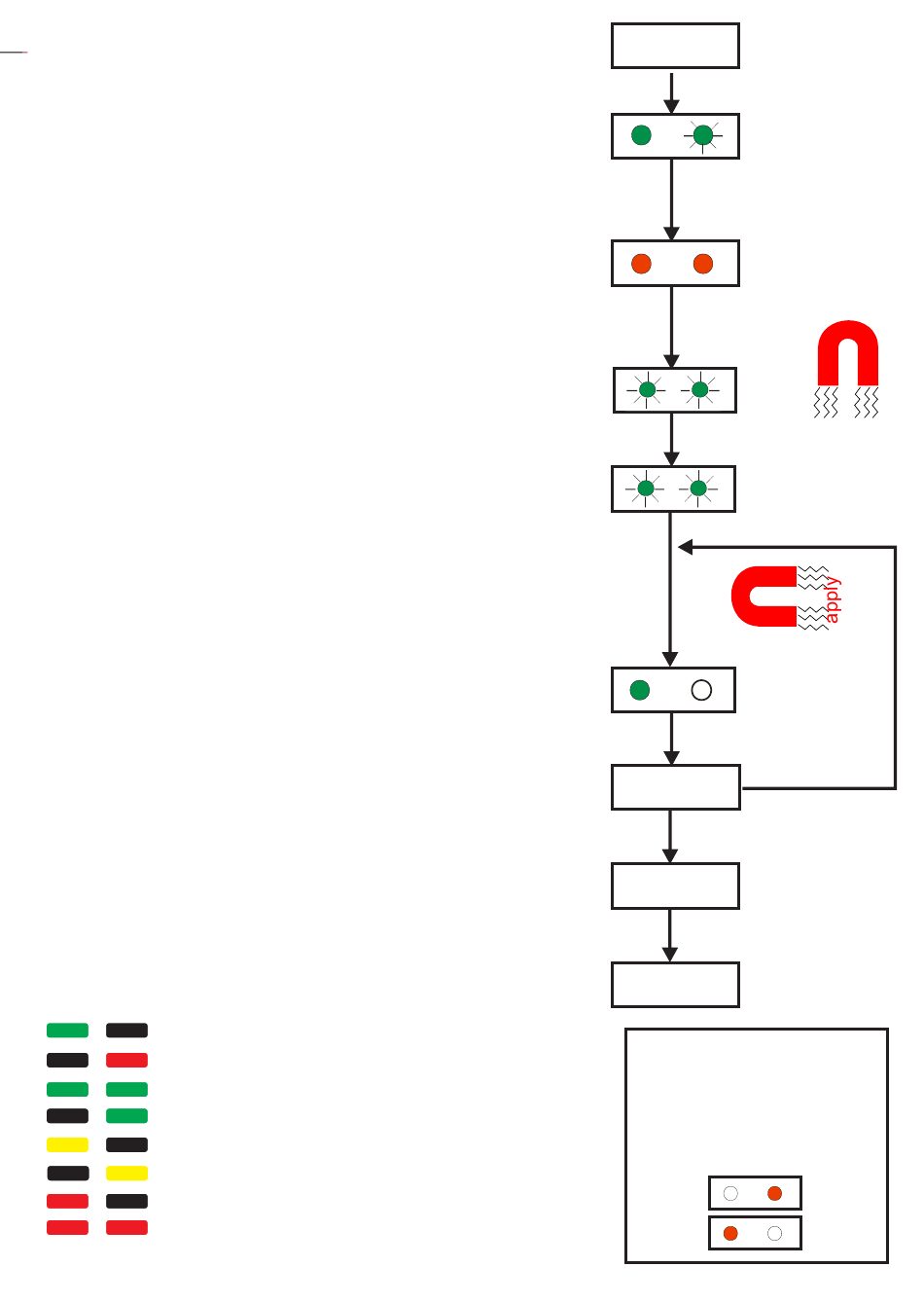

Start unit
LED1 LED2
slow flash
fast flash
Change
Battery Type
Wait 20sec
(V)
Starting
Procedure
If red lights are flashing
alternatively then you have to
reconnect your yellow/black
to 12V to reinstate the remote
control. To set unit back to
automatic mode swipe the
magnet across the swipe
area.
5sec
2sec 2sec
10sec
apply
remove magnet
6 different
Battery Type
rotated through
add mag and
remove mag
remove magnet
when type correct
