This product has 2 tri coloured LEDs located at the side of the product labelled LED1 and
LED2. Each LED has the ability to emit 3 colours and also flash (denotes the LED colour
which flashes). Red, Orange and Green, by using the 2 LEDs and the 3 colours we can mix
them to give various amounts of information to the user.

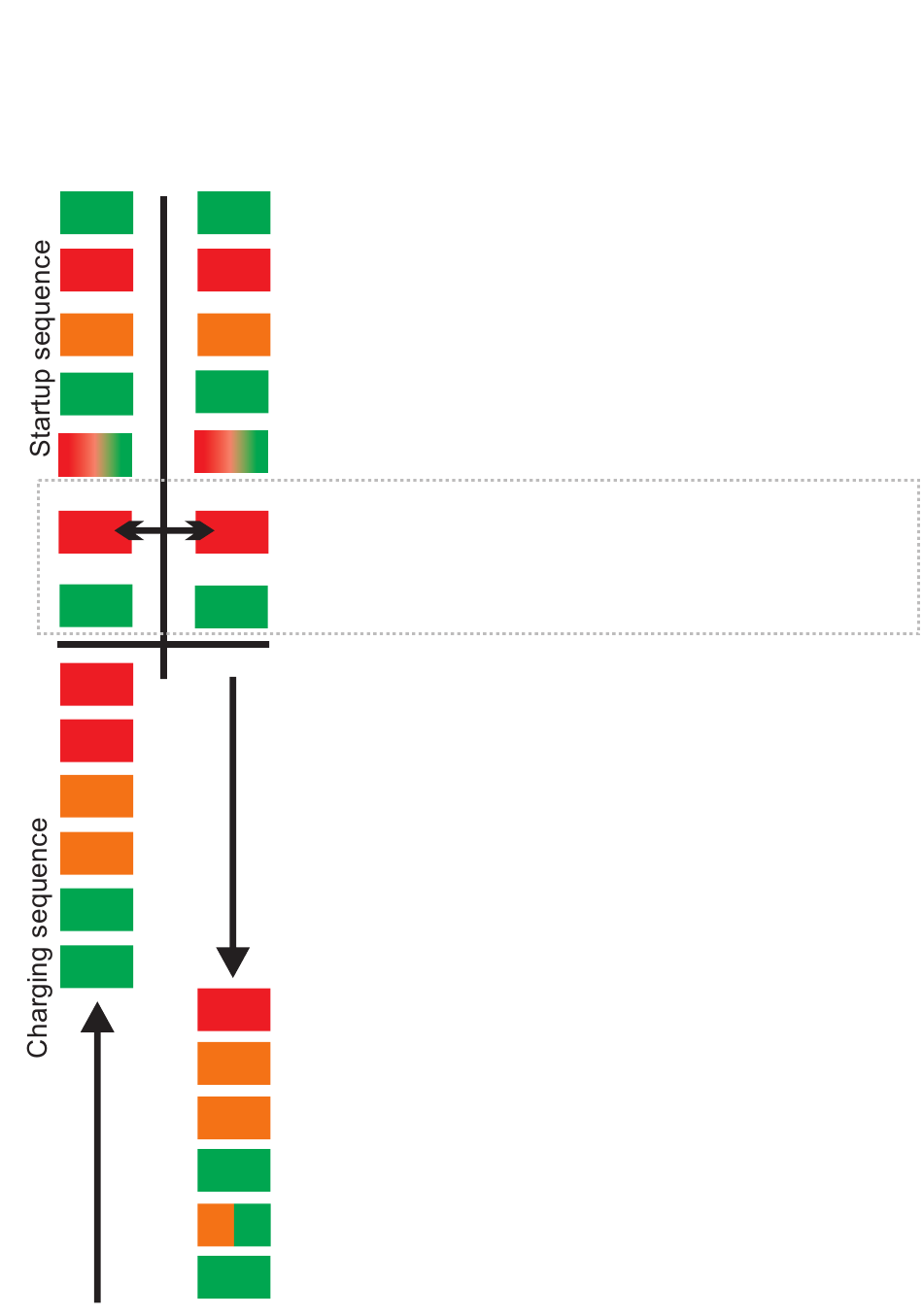

LED 1
* *
* *
*
*
*
*
LED 2 INFORMATION
*
Start up for 5 seconds
Start up for 2 seconds
No calibration, unit defective return to factory 5 seconds
Battery type select window (10sec) ( refer to page 7 for LED colour
combinations (adjust if required - default is sealed lead acid )
Battery type displayed (5sec)
Alternative flashing Red LEDs. If this happens you have, at some point,
activated the Remote Control Mode (yellow+black wires). You need to
apply 12V to these wires (pos + neg) live to resolve. To reset the unit to
its original function hold a magnet over the magnetic swipe area during
this flashing sequence.
*
If reset to Auto mode with the magnet hold over the magnetic swipe area,
5x quick flash will confirm reset to Auto mode .
Soft start mode, power ramping up
Unit on fast charge mode
Soft restart Absorption mode
Absorption mode
Soft restart in float mode
Float charge
High voltage trip, Model dependent
In > 15.5/31V or Out > 16/32/48V
High temp trip unit switched off until it cools down
* *
High case temperature, power reduction but unit still working
Output voltage too low (< 6.5V/13V/19.5V)
Input voltage low, unit will switch into sleep mode in 20 mins.
Input voltage is ok, remote is in off state.
*
Remote needs Pos signal.
No faults all ok
MAGNETIC
SWITCH
Magnetic
switch
active
