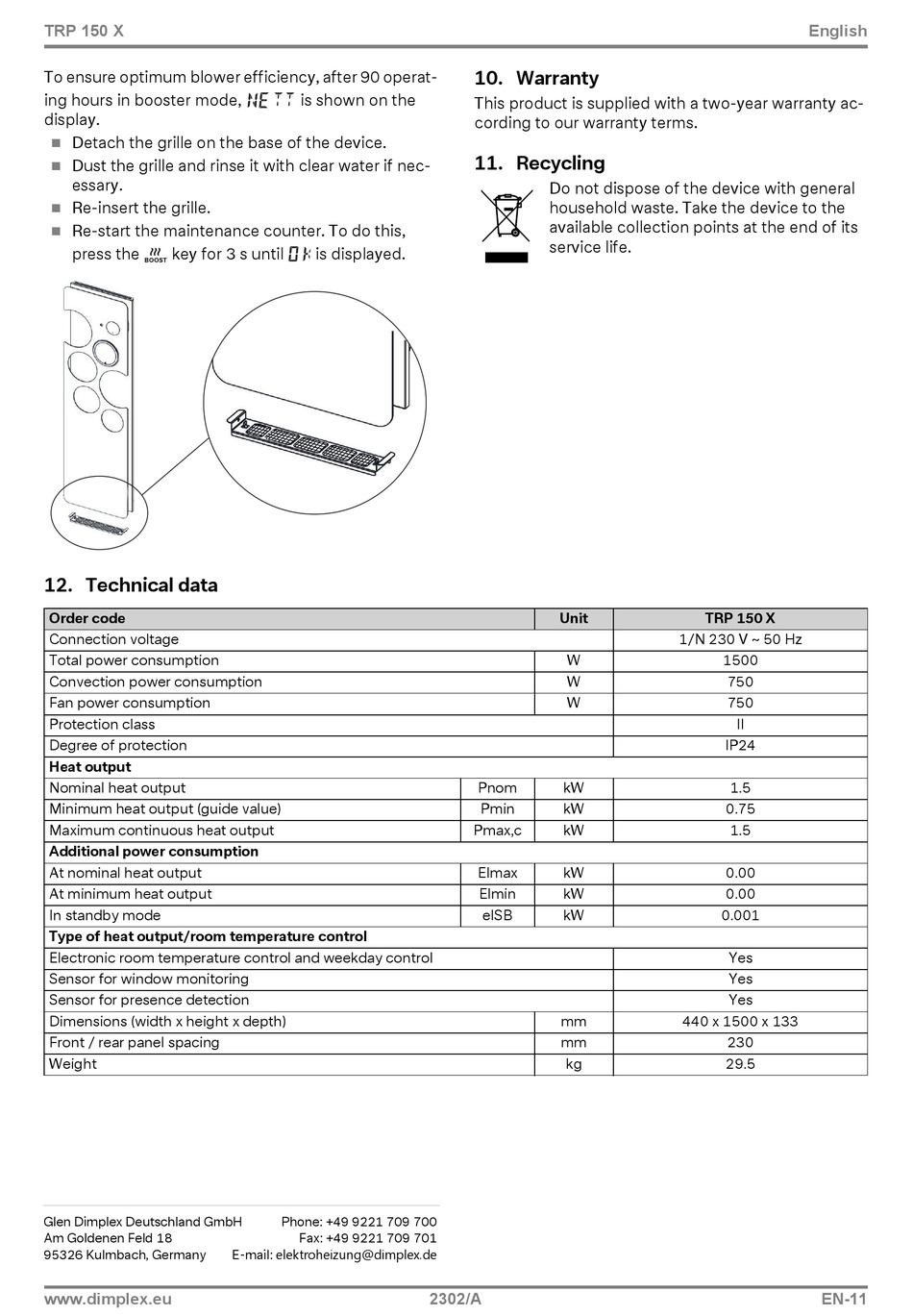

Technical Data - Dimplex TRP 150 X Montage- Und Gebrauchsanweisungen

TRP 150 X
To ensure optimum blower efficiency, after 90 operat-
ing hours in booster mode,
display.
Detach the grille on the base of the device.

Dust the grille and rinse it with clear water if nec-

essary.
Re-insert the grille.

Re-start the maintenance counter. To do this,

press the key for 3 s until

12. Technical data

Order code
Connection voltage
Total power consumption
Convection power consumption
Fan power consumption
Protection class
Degree of protection
Heat output
Nominal heat output
Minimum heat output (guide value)
Maximum continuous heat output
Additional power consumption
At nominal heat output
At minimum heat output
In standby mode
Type of heat output/room temperature control
Electronic room temperature control and weekday control
Sensor for window monitoring
Sensor for presence detection
Dimensions (width x height x depth)
Front / rear panel spacing
Weight
Glen Dimplex Deutschland GmbH
Am Goldenen Feld 18
95326 Kulmbach, Germany
www.dimplex.eu
is shown on the
is displayed.
Phone: +49 9221 709 700
Fax: +49 9221 709 701
E-mail: elektroheizung@dimplex.de
10. Warranty
This product is supplied with a two-year warranty ac-
cording to our warranty terms.
11. Recycling
Do not dispose of the device with general
household waste. Take the device to the
available collection points at the end of its
service life.
Unit
W
W
W
Pnom kW
Pmin kW
Pmax,c kW
Elmax kW
Elmin kW
elSB kW
mm
mm
kg
2302/A
English
TRP 150 X
1/N 230 V ~ 50 Hz
1500
750
750
II
IP24
1.5
0.75
1.5
0.00
0.00
0.001
Yes
Yes
Yes
440 x 1500 x 133
230
29.5
EN-11
