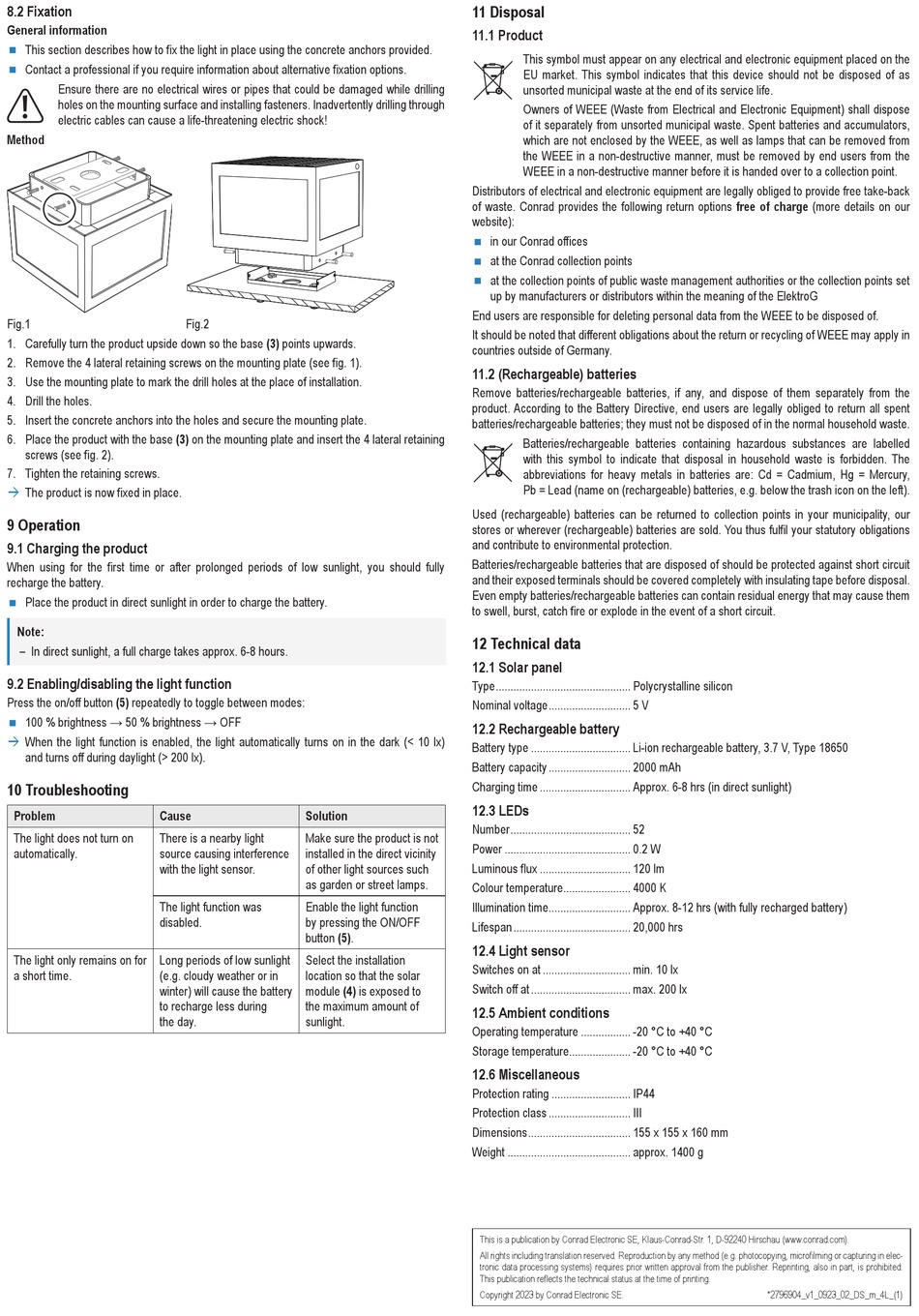

8.2 Fixation
General information
1
This section describes how to fix the light in place using the concrete anchors provided.
Contact a professional if you require information about alternative fixation options.
Ensure there are no electrical wires or pipes that could be damaged while drilling
holes on the mounting surface and installing fasteners. Inadvertently drilling through
electric cables can cause a life-threatening electric shock!
Method
2
Fig.1
1. Carefully turn the product upside down so the base (3) points upwards.
2. Remove the 4 lateral retaining screws on the mounting plate (see fig. 1).
3. Use the mounting plate to mark the drill holes at the place of installation.
4. Drill the holes.
5. Insert the concrete anchors into the holes and secure the mounting plate.
6. Place the product with the base (3) on the mounting plate and insert the 4 lateral retaining
screws (see fig. 2).
7. Tighten the retaining screws.
The product is now fixed in place.
Æ
9 Operation
9.1 Charging the product
When using for the first time or after prolonged periods of low sunlight, you should fully
recharge the battery.
Place the product in direct sunlight in order to charge the battery.
Note:
– In direct sunlight, a full charge takes approx. 6-8 hours.
9.2 Enabling/disabling the light function
Press the on/off button (5) repeatedly to toggle between modes:
100 % brightness → 50 % brightness → OFF
When the light function is enabled, the light automatically turns on in the dark (< 10 lx)
Æ
and turns off during daylight (> 200 lx).
10 Troubleshooting
Problem
Cause
The light does not turn on
There is a nearby light
automatically.
source causing interference
with the light sensor.
The light function was
disabled.
The light only remains on for
Long periods of low sunlight
a short time.
(e.g. cloudy weather or in
winter) will cause the battery
to recharge less during
the day.
Fig.2
Solution
Make sure the product is not
installed in the direct vicinity
of other light sources such
as garden or street lamps.
Enable the light function
by pressing the ON/OFF
button (5).
Select the installation
location so that the solar
module (4) is exposed to
the maximum amount of
sunlight.
11 Disposal
11.1 Product
This symbol must appear on any electrical and electronic equipment placed on the
EU market. This symbol indicates that this device should not be disposed of as
unsorted municipal waste at the end of its service life.
Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose
of it separately from unsorted municipal waste. Spent batteries and accumulators,
which are not enclosed by the WEEE, as well as lamps that can be removed from
the WEEE in a non-destructive manner, must be removed by end users from the
WEEE in a non-destructive manner before it is handed over to a collection point.
Distributors of electrical and electronic equipment are legally obliged to provide free take-back
of waste. Conrad provides the following return options free of charge (more details on our
website):
in our Conrad offices
at the Conrad collection points
at the collection points of public waste management authorities or the collection points set
up by manufacturers or distributors within the meaning of the ElektroG
End users are responsible for deleting personal data from the WEEE to be disposed of.
It should be noted that different obligations about the return or recycling of WEEE may apply in
countries outside of Germany.
11.2 (Rechargeable) batteries
Remove batteries/rechargeable batteries, if any, and dispose of them separately from the
product. According to the Battery Directive, end users are legally obliged to return all spent
batteries/rechargeable batteries; they must not be disposed of in the normal household waste.
Batteries/rechargeable batteries containing hazardous substances are labelled
with this symbol to indicate that disposal in household waste is forbidden. The
abbreviations for heavy metals in batteries are: Cd = Cadmium, Hg = Mercury,
Pb = Lead (name on (rechargeable) batteries, e.g. below the trash icon on the left).
Used (rechargeable) batteries can be returned to collection points in your municipality, our
stores or wherever (rechargeable) batteries are sold. You thus fulfil your statutory obligations
and contribute to environmental protection.
Batteries/rechargeable batteries that are disposed of should be protected against short circuit
and their exposed terminals should be covered completely with insulating tape before disposal.
Even empty batteries/rechargeable batteries can contain residual energy that may cause them
to swell, burst, catch fire or explode in the event of a short circuit.
12 Technical data
12.1 Solar panel
Type .............................................. Polycrystalline silicon
Nominal voltage ............................ 5 V
12.2 Rechargeable battery
Battery type .................................. Li-ion rechargeable battery, 3.7 V, Type 18650
Battery capacity ............................ 2000 mAh
Charging time ............................... Approx. 6-8 hrs (in direct sunlight)
12.3 LEDs
Number ......................................... 52
Power ........................................... 0.2 W
Luminous flux ............................... 120 lm
Colour temperature ....................... 4000 K
Illumination time ............................ Approx. 8-12 hrs (with fully recharged battery)
Lifespan ........................................ 20,000 hrs
12.4 Light sensor
Switches on at .............................. min. 10 lx
Switch off at .................................. max. 200 lx
12.5 Ambient conditions
Operating temperature ................. -20 °C to +40 °C
Storage temperature ..................... -20 °C to +40 °C
12.6 Miscellaneous
Protection rating ........................... IP44
Protection class ............................ III
Dimensions ................................... 155 x 155 x 160 mm
Weight .......................................... approx. 1400 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or capturing in elec-
tronic data processing systems) requires prior written approval from the publisher. Reprinting, also in part, is prohibited.
This publication reflects the technical status at the time of printing.
Copyright 2023 by Conrad Electronic SE.
*2796904_v1_0923_02_DS_m_4L_(1)
