Product Assembly - Costway TQ10143 Handbuch

A
WHEEL
x1
D
STEERING WHEEL
PRESSURE BLOCK
x2
G
STEERING WHEEL
x1
J
SPRING
x1
M
08
PARTS
B
C
MIRROR WHEEL TRIM(L/R)
x1 x2
E F
FENDER HEADLIGHT
x1 x1
H I
AUXILIARY WHEEL CHARGERS
x2 x1
L
K
FRONT BRACKET FRONT AXLE
x1 x1
EXHAUST PIPEx1

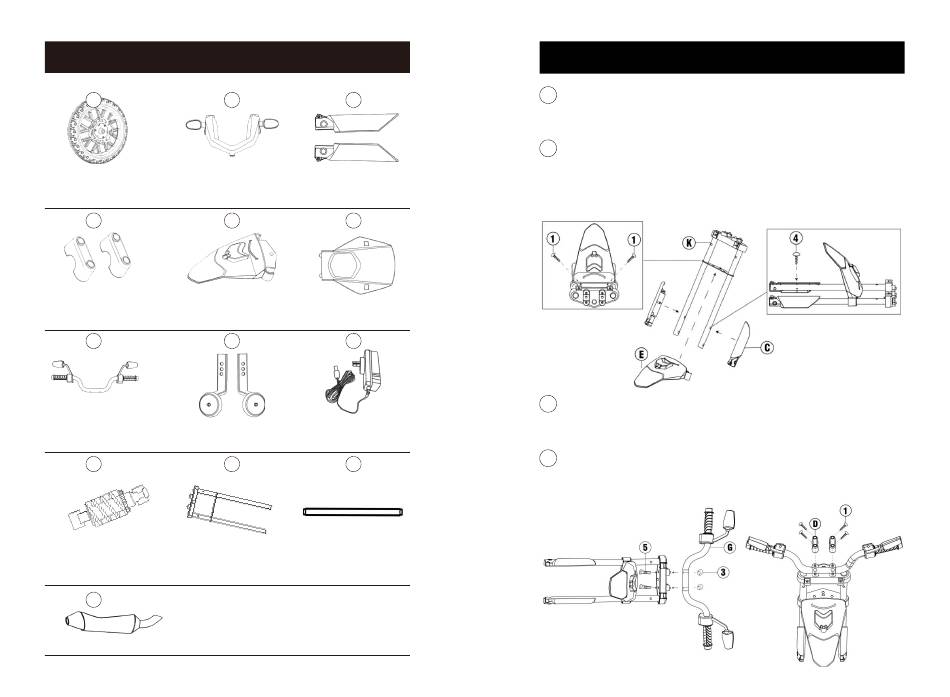

PRODUCT ASSEMBLY

E
Fix the fender.
Clip the fender into the front bracket and fix it with M4 * 10mm round
•
head screw.
C
Fix the wheel trim(L/R).
Clip the wheel trim into the front bracket and fix it with M4
•
* 10mm flat head screw.(Note: Install as shown in the figure, the
wheel trim is divided into left and right sides)
G
Fix the steering wheel.
Clip the steering wheel into the front bracket and fix it with M8 *
•
55mm screws and M8 nuts with M8 wrench.
D
Fix the steering wheel pressure block.
Clip the steering wheel pressure block into the front bracket and fix it
•
with M4 * 10mm round head screw.
09
