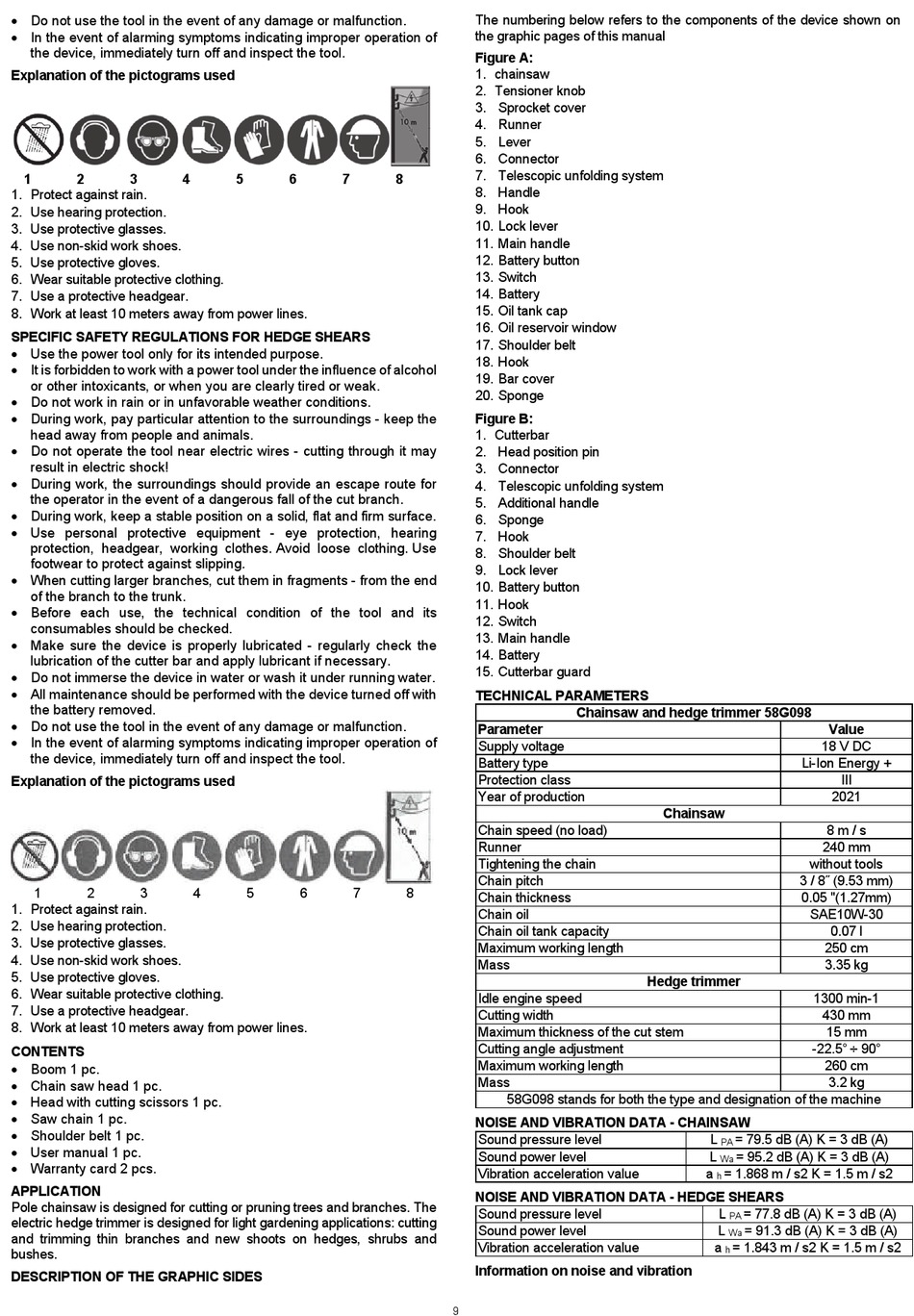

 Do not use the tool in the event of any damage or malfunction.
 In the event of alarming symptoms indicating improper operation of
the device, immediately turn off and inspect the tool.
Explanation of the pictograms used
1 2 3 4
1. Protect against rain.
2. Use hearing protection.
3. Use protective glasses.
4. Use non-skid work shoes.
5. Use protective gloves.
6. Wear suitable protective clothing.
7. Use a protective headgear.
8. Work at least 10 meters away from power lines.
SPECIFIC SAFETY REGULATIONS FOR HEDGE SHEARS
 Use the power tool only for its intended purpose.
 It is forbidden to work with a power tool under the influence of alcohol
or other intoxicants, or when you are clearly tired or weak.
 Do not work in rain or in unfavorable weather conditions.
 During work, pay particular attention to the surroundings - keep the
head away from people and animals.
 Do not operate the tool near electric wires - cutting through it may
result in electric shock!
 During work, the surroundings should provide an escape route for
the operator in the event of a dangerous fall of the cut branch.
 During work, keep a stable position on a solid, flat and firm surface.
 Use personal protective equipment - eye protection, hearing
protection, headgear, working clothes. Avoid loose clothing. Use
footwear to protect against slipping.
 When cutting larger branches, cut them in fragments - from the end
of the branch to the trunk.
 Before each use, the technical condition of the tool and its
consumables should be checked.
 Make sure the device is properly lubricated - regularly check the
lubrication of the cutter bar and apply lubricant if necessary.
 Do not immerse the device in water or wash it under running water.
 All maintenance should be performed with the device turned off with
the battery removed.
 Do not use the tool in the event of any damage or malfunction.
 In the event of alarming symptoms indicating improper operation of
the device, immediately turn off and inspect the tool.
Explanation of the pictograms used
1 2 3
1. Protect against rain.
2. Use hearing protection.
3. Use protective glasses.
4. Use non-skid work shoes.
5. Use protective gloves.
6. Wear suitable protective clothing.
7. Use a protective headgear.
8. Work at least 10 meters away from power lines.
CONTENTS
 Boom 1 pc.
 Chain saw head 1 pc.
 Head with cutting scissors 1 pc.
 Saw chain 1 pc.
 Shoulder belt 1 pc.
 User manual 1 pc.
 Warranty card 2 pcs.
APPLICATION
Pole chainsaw is designed for cutting or pruning trees and branches. The
electric hedge trimmer is designed for light gardening applications: cutting
and trimming thin branches and new shoots on hedges, shrubs and
bushes.
DESCRIPTION OF THE GRAPHIC SIDES
5 6 7
4 5 6 7
The numbering below refers to the components of the device shown on
the graphic pages of this manual
Figure A:
1. chainsaw
2. Tensioner knob
3. Sprocket cover
4. Runner
5. Lever
6. Connector
7. Telescopic unfolding system
8
8. Handle
9. Hook
10. Lock lever
11. Main handle
12. Battery button
13. Switch
14. Battery
15. Oil tank cap
16. Oil reservoir window
17. Shoulder belt
18. Hook
19. Bar cover
20. Sponge
Figure B:
1. Cutterbar
2. Head position pin
3. Connector
4. Telescopic unfolding system
5. Additional handle
6. Sponge
7. Hook
8. Shoulder belt
9. Lock lever
10. Battery button
11. Hook
12. Switch
13. Main handle
14. Battery
15. Cutterbar guard

TECHNICAL PARAMETERS

Parameter
Supply voltage
Battery type
Protection class
Year of production
Chain speed (no load)
Runner
Tightening the chain
Chain pitch
8
Chain thickness
Chain oil
Chain oil tank capacity
Maximum working length
Mass
Idle engine speed
Cutting width
Maximum thickness of the cut stem
Cutting angle adjustment
Maximum working length
Mass
58G098 stands for both the type and designation of the machine
NOISE AND VIBRATION DATA - CHAINSAW
Sound pressure level
Sound power level
Vibration acceleration value
NOISE AND VIBRATION DATA - HEDGE SHEARS
Sound pressure level
Sound power level
Vibration acceleration value
Information on noise and vibration
9
Chainsaw and hedge trimmer 58G098
Chainsaw
Hedge trimmer
L = 79.5 dB (A) K = 3 dB (A)
PA
L = 95.2 dB (A) K = 3 dB (A)
Wa
a = 1.868 m / s2 K = 1.5 m / s2
h
L = 77.8 dB (A) K = 3 dB (A)
PA
L = 91.3 dB (A) K = 3 dB (A)
Wa
a = 1.843 m / s2 K = 1.5 m / s2
h
Value
18 V DC
Li-Ion Energy +
III
2021
8 m / s
240 mm
without tools
3 / 8˝ (9.53 mm)
0.05 "(1.27mm)
SAE10W-30
0.07 l
250 cm
3.35 kg
1300 min-1
430 mm
15 mm
-22.5˚ ÷ 90˚
260 cm
3.2 kg
