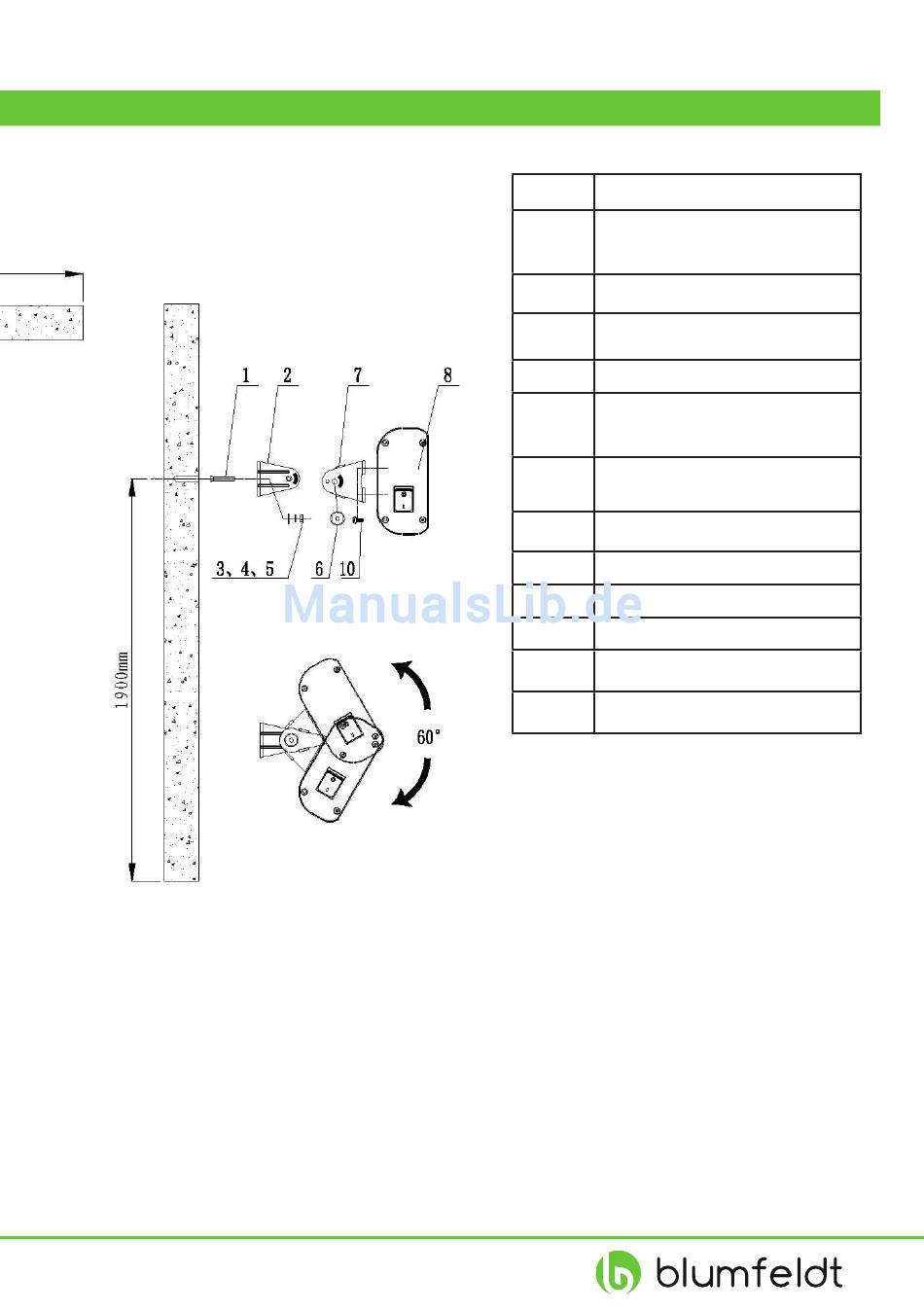

Wall mounting

13
No . Part Name
1 Expansion Bolt M6*70
2 Upper L Bracket
3 Washer
4 Spring Washer
5 Screw Nut M6
6 Screw M6*16
7 Lower L Bracket
8 Switch
9 Control Panel
10 Screw M6x8
11 Allen key
12 Remote Control
