Meter installation
5.4

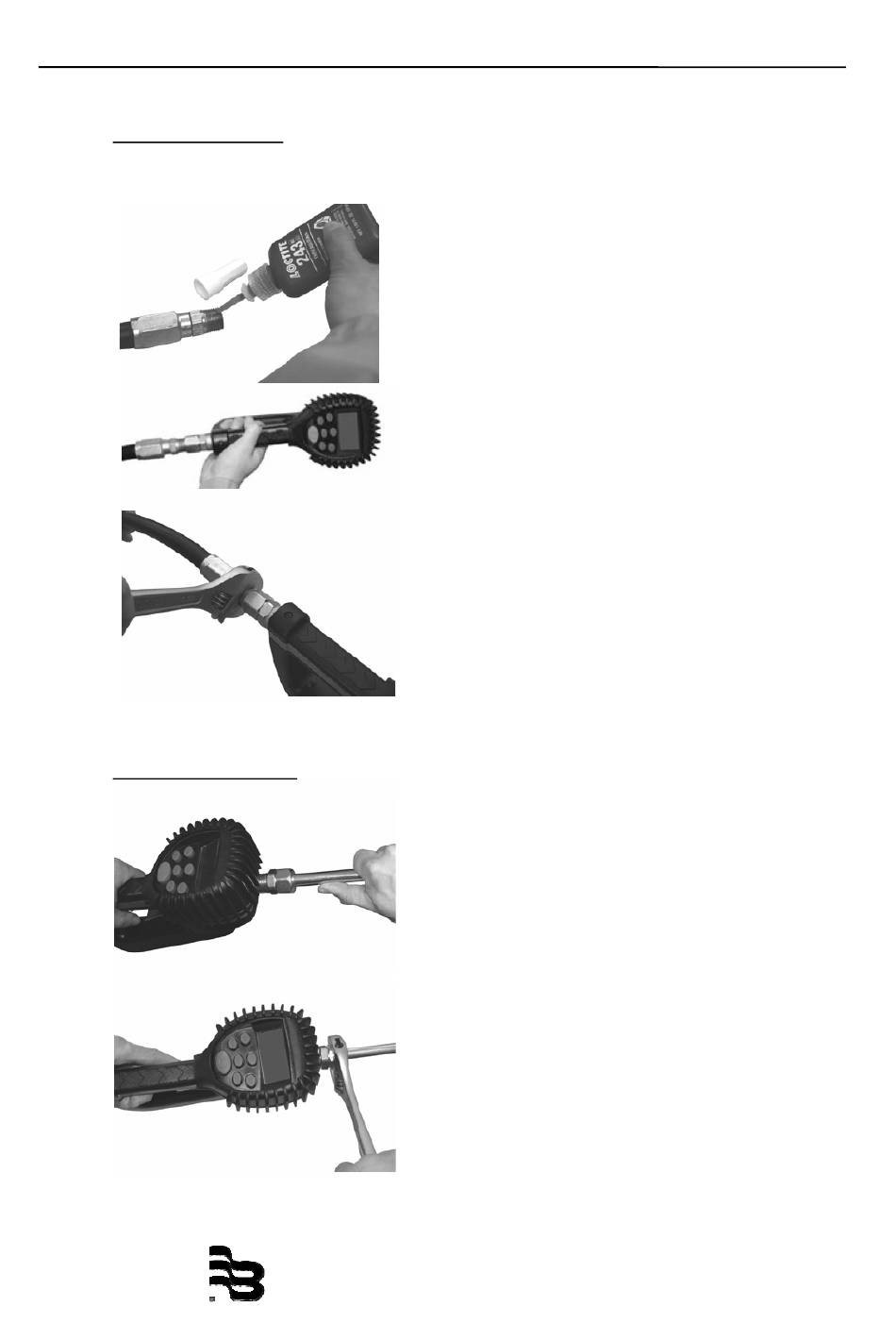

Apply meter to hose

Close the drain valve before starting this procedure.
Attach the hose
5.5

Apply nozzle to meter

Attach the nozzle
1. Attach swivel to meter. Apply thread sealant to
the male end of the hose. Recommended sealant
is Loctite
2. Insert the metal end of the hose into the swivel.
Tighten
adjustable, wrench.
NOTE: The threaded end of the meter always has
female threads. The metal end of the hose must
have male threads. Apply thread sealant, Loctite
243 or equivalent, to the male end. The inlet and
outlet swivel connections are either 1/2" NPT or 1/2"
BSPP, depending on meter model.
1. On the opposite end, apply sealant to the end of
the nozzle. Recommended sealant is Loctite
243.
2. Thread the nozzle onto the meter. Screw it in
tightly with an open ended, adjustable, wrench.
3. Open all dispense position shut-off valves. Start
the pump to pressurize the system.
4. Before use, to ensure accuracy, purge all air from
the fluid lines and dispense valve(s).
