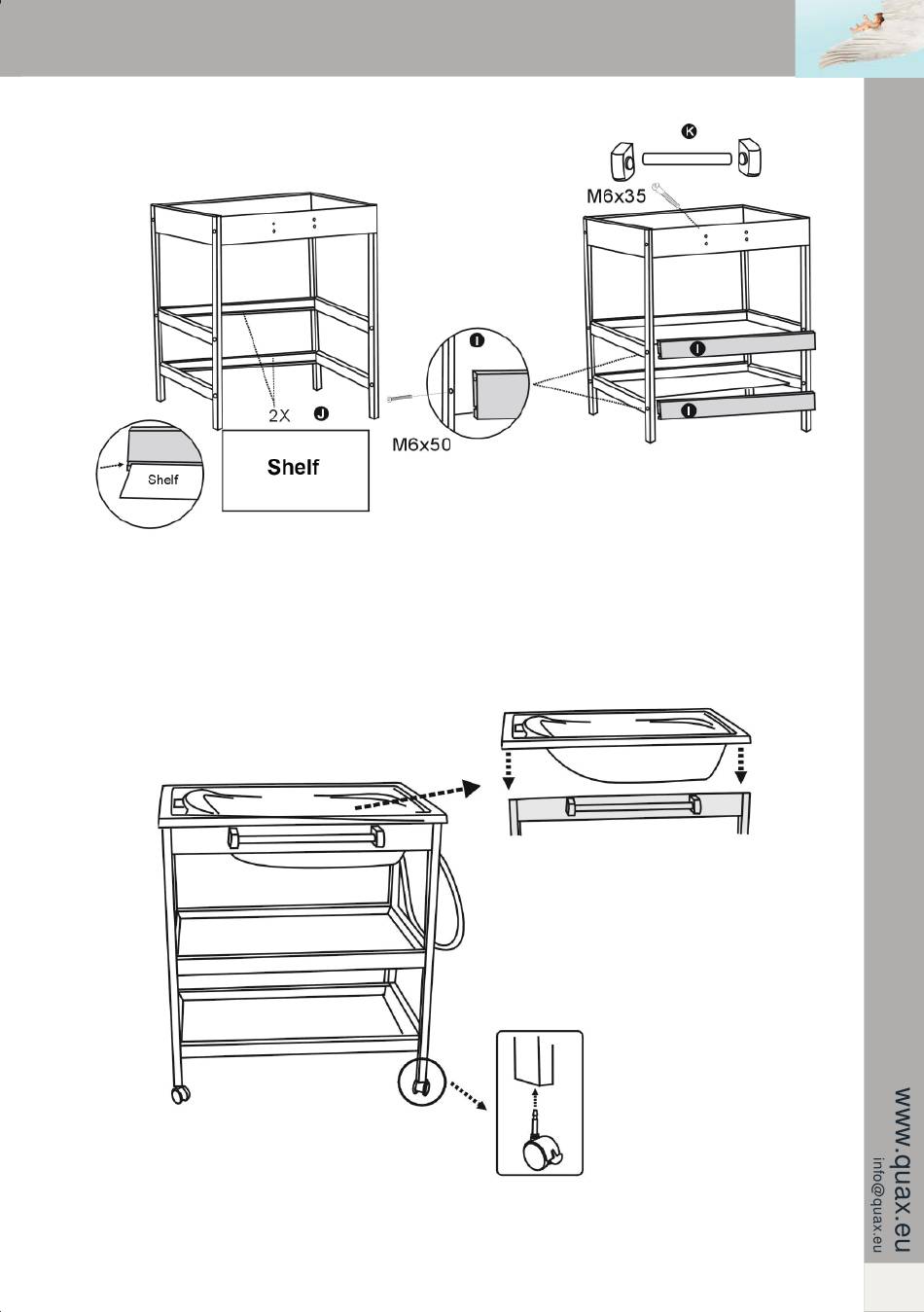

Step 6.2 : Use the parts of step 6.1, both shelves Shelf, two lower crossbars I and four bolts M6*50 mm.
The towel rail K including its brackets and four bolts M6*35 mm
Slide both shelves (Shelf) in place and in the grooves of the already installed lower crossbars (I). Push the
remaining crossbars (I) between the leg frames and on the shelves. Push the bolts( M6*50) through the
holes provided on the outside of the leg frame and tighten gently. Push the supports on the towel rail (K)
and position place it on the drillings of the upper crossbar (H). Push the bolts (M6*35) through the holes at
the back of the crossbar and tighten.
Step 6.3 : Use the parts of step 6.2, the bathtub and four wheels
Push the bathtub on the wooden structure. Now Tighten all connections fi rmly. Turn the cabinet on its side
and push the wheels into the holes at the bottom of the legs. Trun the unit back up.
