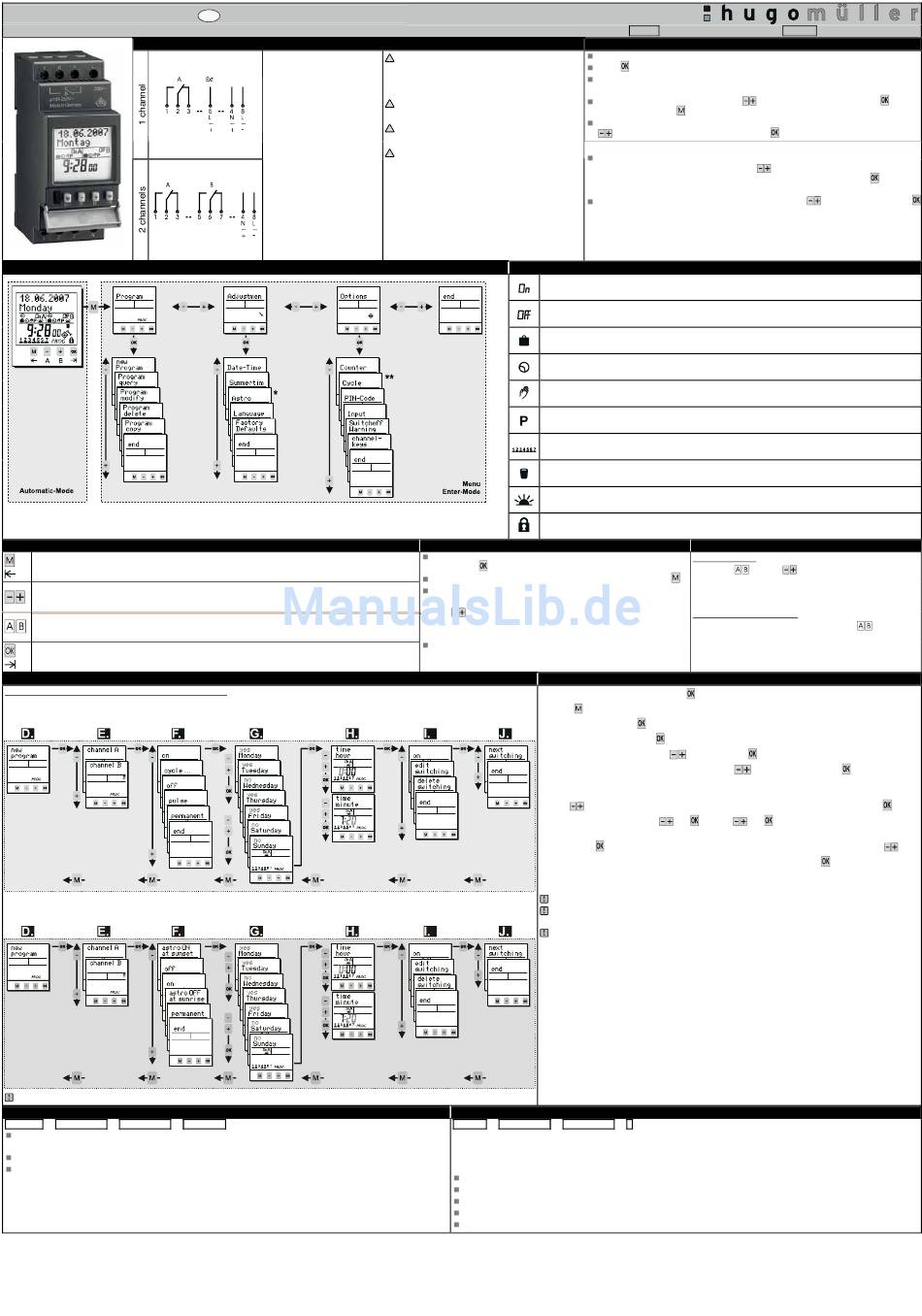

Instruction Manual
(Site 1 / 2)
Time switch (with Astro function)
Connection diagram
3. Menu overview
*Within astro time switches
**Within standard (non-astro) time switches
5. Key function
1. To access the Enter-mode (program, adjustments, options) from the automatic-mode.
2. To revert to the beginning of the current (sub-) menu.
1. To adjust the flashing digit.
2. To scroll through a choice
1. Automatic-mode: To switch the channel ON or OFF until the next programming step occurs.
2. Automatic-mode: A push longer than 3 sec. = Permanent switching status (7).
1. To activate the time switch when operated without power supply.
2. To confirm the selection or the entered data.
8. New Program (See also the example (9))
Step A. to C. please refer to point 9. (Example "New Program")
Menu navigation of the programming of a switching time (standard (non-astro) time switch)
Menu navigation of the programming of a standard or astro switching time (astro time switch)
Pulse and recycle function are not available within time switches with astro function.
10. Program permanent
Program -> new program -> channel A/B -> permanent ->
One permanent by date programming step (holiday function) for each channel is possible. During the desired period (The
function is valid for the whole days) the channel can be switched off (
The programming of this function is as described in (8 / 9).
The choice
will not be offered anymore within the menu
permanent
time can be modified and deleted within
Program modify
*Within astro time switches
**Within standard (non-astro) time switches
***One-channel version
GB
Directory
1. Safety instructions
2. Initial operation
3. Menu overview
4. Symbol legend
5. Key function
6. Handling advice
7. Channel ON OFF / Permanent P
8. New Program
9. Example „New Program"
10. Program permanent
11. Pulse
12. Cycle
13. Cycle options
14. Astro-function
15. Astro-adjustments
16. External Input
17. Channel keys
18. Switchoff warning
19. Additional adjustments
19. Reset-Function
20. Program modify
21. Data-key
...
) or on (
permanent off
permanent on
when already in use. The switching
new program
(20) and
(19) respectively.
Program delete
1. Safety instructions
The installation and assembly of electrical
!
equipment must be only carried out only by a skilled
Person! Otherwise fire danger or danger of an
electric shock exists!
Connect the supply voltage/frequency as stated on
!
the product label!
Warranty void if housing opened by unauthorised
!
person!
The electronic circuit is protected against a wide
!
range of external influences. Incorrect operating
may occur if external influences exceed certain
limits!
4. Symbol legend
Channel is switched ON
Channel is switched OFF
For the current date the "holiday program" / "permanent by date" is activated
Standard programming step
Current state is based on a manual over-ride. The state will be cancelled with the next programming step.
Current state is based on a manual over-ride. The state is permanent until terminated manually (7 / 17).
Days of the week Monday, Tuesday, ... Sunday;
The underscores indicate if the program is active for the days above.
Element within sub-menu "program delete"
Astro function: Current state is based on a sunrise or sunset taking into account an optionally adjusted
Offset (14 / 15).
The time switch is locked; to unlock the device the PIN has to be entered (19).
6. Handling advice
The time switch is programmable without external power supply after
pressing the
-button.
To revert one step or one level back while in the Enter-Mode press
After completion of a (sub-) menu confirming
into the automatic-mode.
With
the choice changes from
end
the time switch returns to the beginning of the current
continue
(sub-) menu.
When confirming
before completion, the time switch returns to the
end
automatic-mode without saving the entered data.
9. Example „New Program" (For a regular switching time)
A. If power supply is disconnected press
B. Press
C. Confirm
D. Confirm
E. Choose the desired channel with
F. For regular switching times choose
switching times
G. Within this level you activate the days of the week (1...7) on which the switching time should happen.
With
H. Adjustment of the time: Hours
I. Verify the entered switching time: If the flashing summary of the programming step is correct, verify
or
J. If you want to proceed with programming, confirm
To leave the programming menu confirm
Programming of a switching time with pulse function see point 11
Programming of a switching time with recycle function see point 12 / 13 (not within astro time
switches)
Programming of a astro-switching time see point 14 / 15 (only within astro time switch)
11. Pulse
Program -> New program -> Channel A/B -> ...
The pulse function provides you the opportunity of programming a switching time with a defined duration.
).
As soon as the pulse-duration has expired the time switch switches OFF automatically (the duration of the pulse is up to 59:59
mm:ss).
The programming is carried out like a standard switching time (see point 8 / 9) with following differences
Choose
function (9F).
Pulse
Define the duration of the pulse (
Program the days of the week
Program the switching time (
Validation: Confirm the blinking summary of the pulse program
müller SC 28.X2 pro / SC 28.X4 pro
2. Initial operation
The time switch is delivered in sleep-mode, the display is switched off.
Press
-button for 1 second.
The current date and time is already programmed and European daylight savings time is
activated.
Select the desired language by pressing
(Remark: By pressing
you move one step backwards from the current position)
If required, date, time and daylight savings time mode can be adjusted also by pressing
-buttons and a subsequent confirmation with
Further adjustments when operating an astro time switch:
When using the astro function it is obligatory to enter the geographical position of the place
of the installation of the device. Choose with
cities) and „position" (longitude and latitude). Confirm your choice again with
easiest way is choosing a pre-defined city within the „locations"-menu.)
Enter the nearest city or the geographical coordinates with
7. Channel ON OFF / Permanent P
Channel
ON OFF
By pushing
.
channels take place. The resulting switching status is marked
will return the device
with the hand-symbol and remains until the next programming
end
step occurs. (temporary over-ride)
to
. By confirming
Permanent switching status
continue
By pressing the corresponding channel button
than 3 sec. the channel is permanently switched ON or OFF.
The status remains until the next manual switching occurs (> 3
sec.). (permanent over-ride)
for one second. The display appears in Automatic-Mode.
, the time switch is now in the Enter-Mode.
with
.
Program
with
.
new program
and confirm with
or
with
on
off
or
please refer to point 14 / 15)
astro ON
astro OFF
you activate "yes" or deactivate "no" the corresponding date. Confirm each day with
and
. Minutes
with
. After verification you have the choice between
off
next switching
.
end
/
pulstime minute
pulstime second
/
)
time hour
time minute
paladin 172 4X2 pro / 172 4X4 pro
-buttons and confirm it by pressing
.
.
-buttons between „location" (pre-defined
. (The
-buttons and confirm with
-buttons (
-buttons) a manual switch of the
P
for more
.
-buttons and confirm with
. (The astro
.
and
.
on
and
with
.
edit/delete
end
with
.
).
