Procedure

The processor socket is covered with a protective cap to protect the spring
contacts. In the event of a warranty case, the mainboard can only be taken back
by Fujitsu Technology Solutions with the protective cap secured!
b b
A backplate is needed on the bottom of the mainboard for securing the heat sink.
► Where applicable, remove the plastic protective cap from the heat sink (new
components include a heat conducting paste).
Heat conducting paste which has already been used on heat sinks which are
being reused must be removed and new paste applied.
► Place the heat sink on the processor so that the printed arrow points
towards the rear face of the casing.
► Secure the 4 screws of the heat sink.
► Connect the fan cable with the board connector (FAN1).
18
b
a
Installing/removing the processor
► Remove the heat sink.
► Press down the lever and unhook it.
► Fold up the lever.

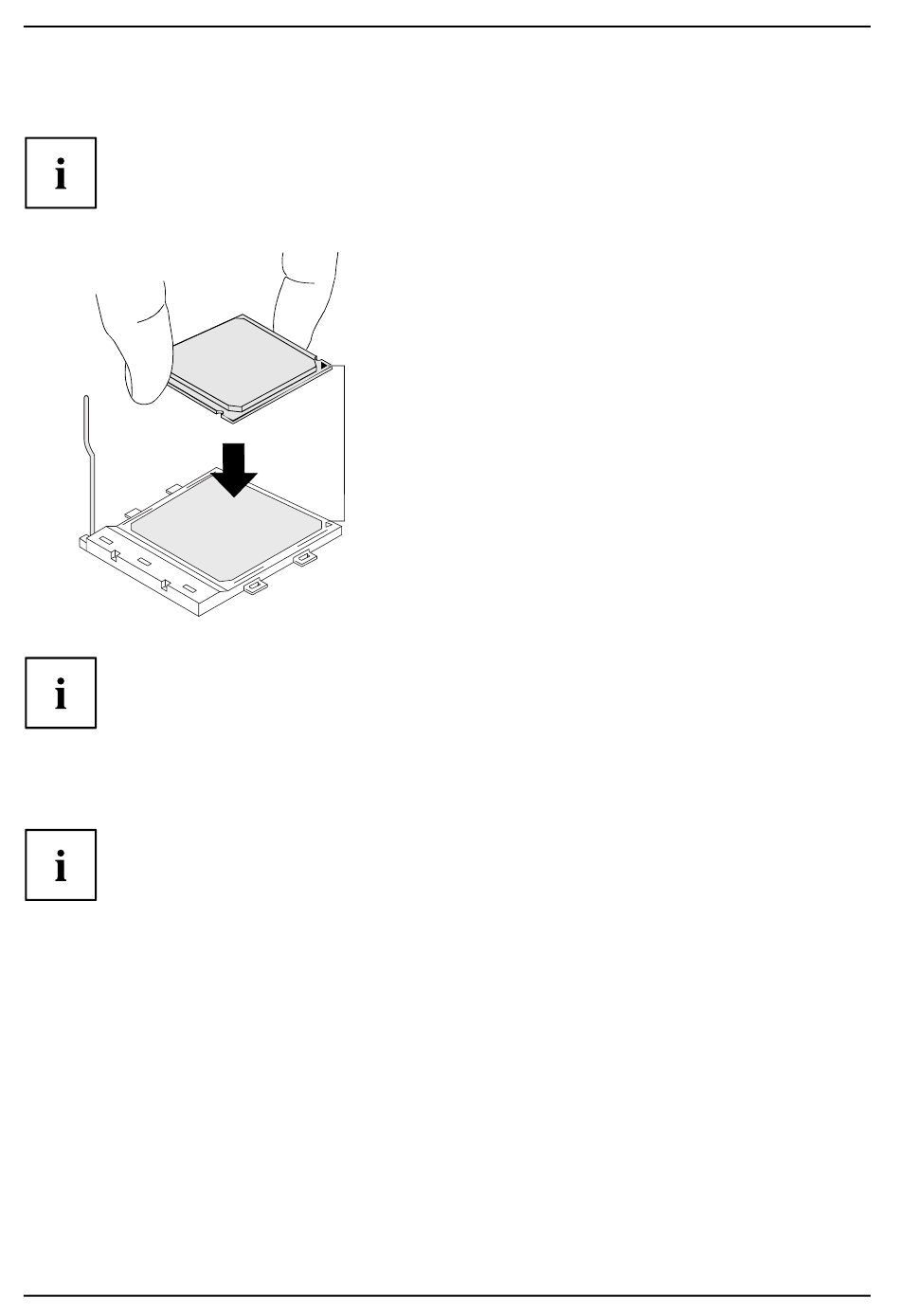

► Hold the processor between your thumb and
index finger and insert it into the socket (b)
so that the marking of the processor is
aligned with the marking on the socket (a).
► Press the lever downward until it is
hooked in again.
