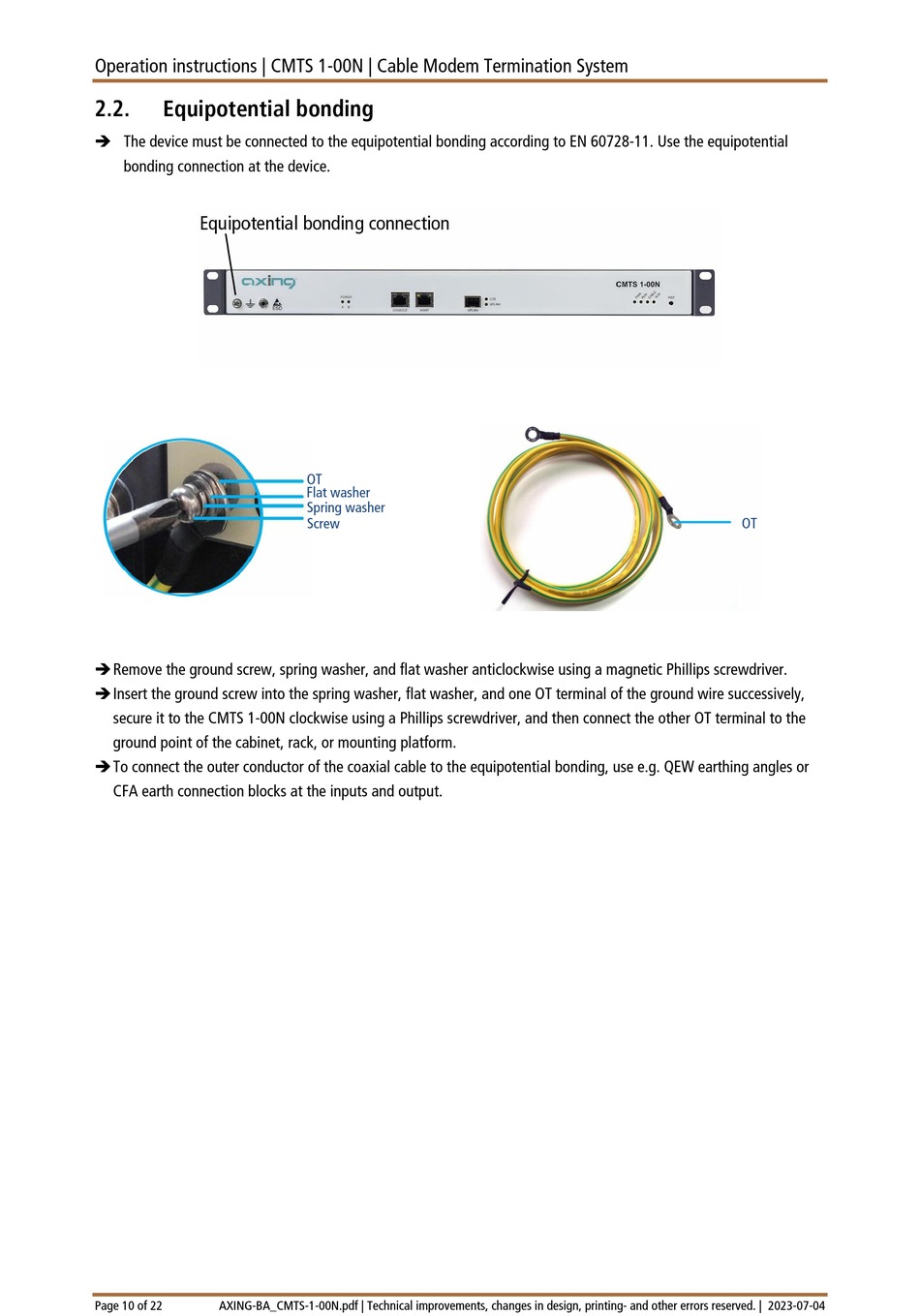

2.2.

Equipotential bonding

 The device must be connected to the equipotential bonding according to EN 60728-11. Use the equipotential
bonding connection at the device.
 Remove the ground screw, spring washer, and flat washer anticlockwise using a magnetic Phillips screwdriver.
 Insert the ground screw into the spring washer, flat washer, and one OT terminal of the ground wire successively,
secure it to the CMTS 1-00N clockwise using a Phillips screwdriver, and then connect the other OT terminal to the
ground point of the cabinet, rack, or mounting platform.
 To connect the outer conductor of the coaxial cable to the equipotential bonding, use e.g. QEW earthing angles or
CFA earth connection blocks at the inputs and output.
Page 10 of 22 AXING-BA_CMTS-1-00N.pdf | Technical improvements, changes in design, printing- and other errors reserved. | 2023-07-04
OT
Flat washer
Spring washer
Screw OT
