ABB PDP32.0 Installationsanleitung Seite 2

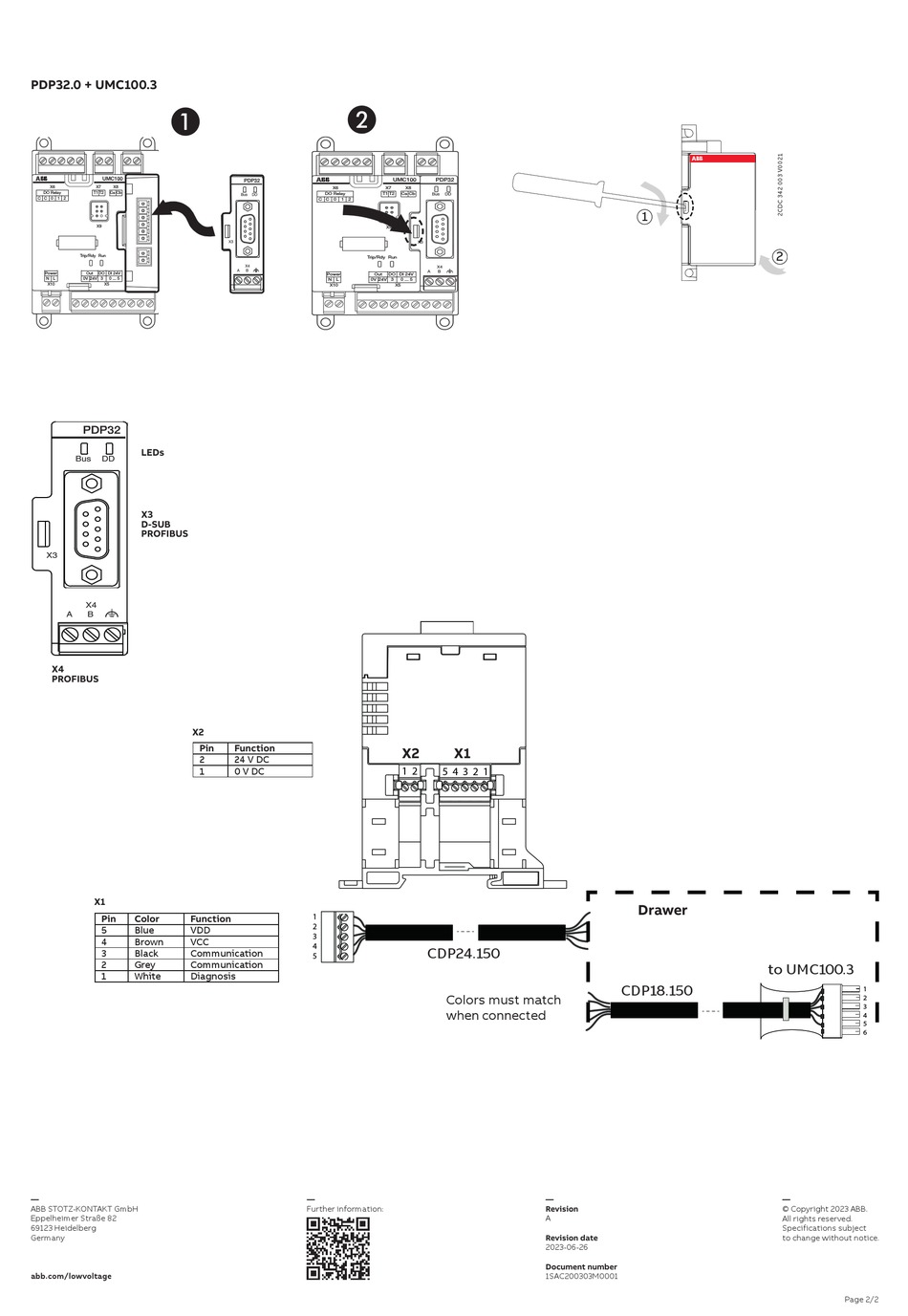

PDP32.0 + UMC100.3
A
X6 X7 X8
DO Relay T1 T2 Ca Cb
C C 0 1 2
X9
Trip/Rdy Run
Power Out DO DI 24V
N L 0V 24V 3 0 ... 5
X10 X5
LEDs
X3
D-SUB
PROFIBUS
X4
PROFIBUS
X2
Pin
2
1
X1
Pin Color Function
5 Blue VDD
4 Brown VCC
3 Black Communication
2 Grey Communication
1 White Diagnosis
—
ABB STOTZ-KONTAKT GmbH
Eppelheimer Straße 82
69123 Heidelberg
Germany
abb.com/lowvoltage
B
X6 X7 X8
DO Relay T1 T2 Ca Cb
C C 0 1 2
X9
Trip/Rdy Run
Power Out DO DI 24V
N L 0V 24V 3 0 ... 5
X10 X5
Function
X2
24 V DC
1 2
0 V DC
1
2
3
4
5
—
Further information:
X1
5 4 3 2 1
CDP24.150
Colors must match
when connected
—
Revision
A
Revision date
2023-06-26
Document number
1SAC200303M0001
1
2
Drawer
to UMC100.3
CDP18.150
—
© Copyright 2023 ABB.
All rights reserved.
Specifications subject
to change without notice.
1
2
3
4
5
6
Page 2/2
