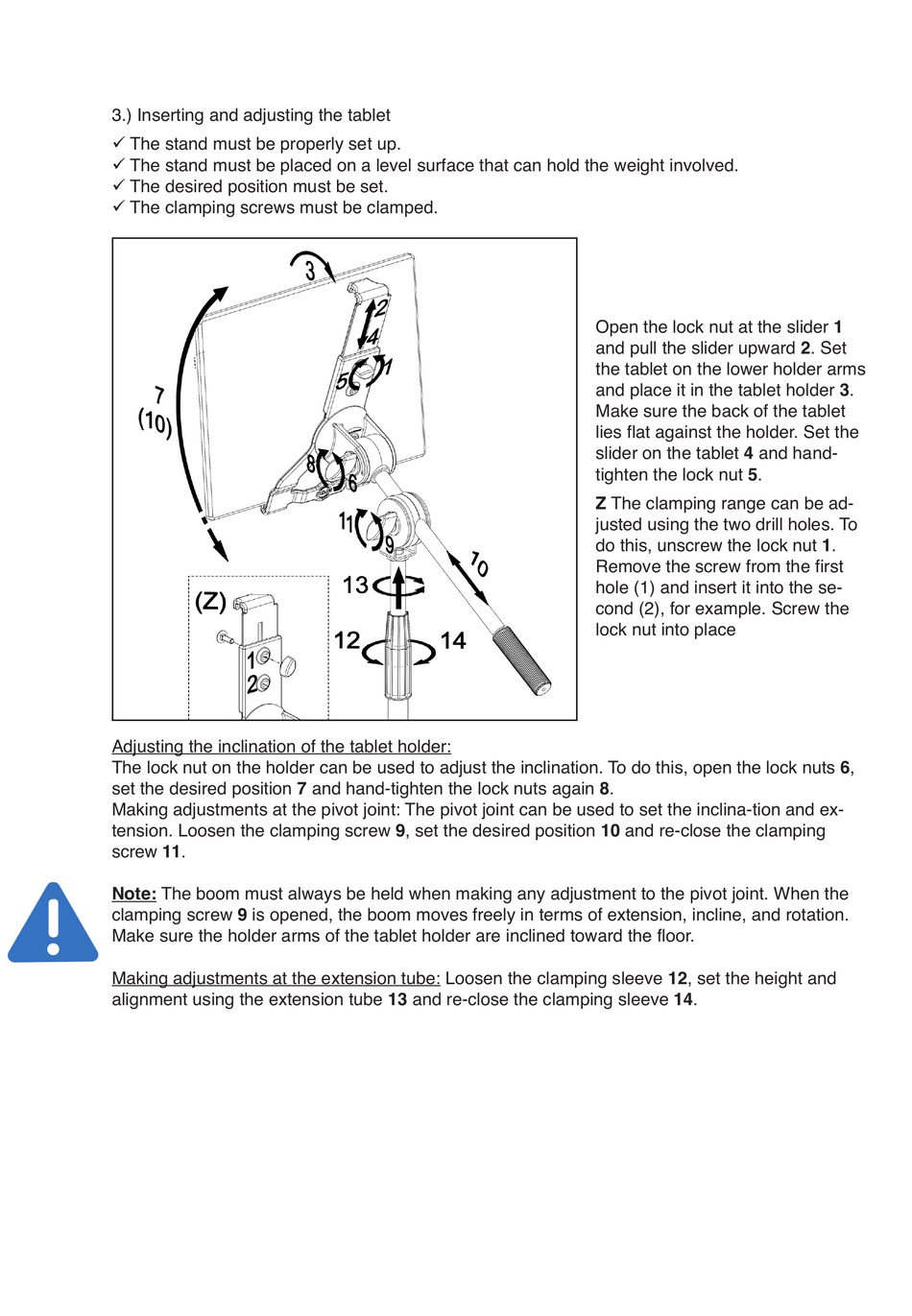

3.) Inserting and adjusting the tablet
 The stand must be properly set up.
 The stand must be placed on a level surface that can hold the weight involved.
 The desired position must be set.
 The clamping screws must be clamped.
Adjusting the inclination of the tablet holder:
The lock nut on the holder can be used to adjust the inclination. To do this, open the lock nuts 6,
set the desired position 7 and hand-tighten the lock nuts again 8.
Making adjustments at the pivot joint: The pivot joint can be used to set the inclina-tion and ex-
tension. Loosen the clamping screw 9, set the desired position 10 and re-close the clamping
screw 11.
Note: The boom must always be held when making any adjustment to the pivot joint. When the
clamping screw 9 is opened, the boom moves freely in terms of extension, incline, and rotation.
Make sure the holder arms of the tablet holder are inclined toward the floor.
Making adjustments at the extension tube: Loosen the clamping sleeve 12, set the height and
alignment using the extension tube 13 and re-close the clamping sleeve 14.
Open the lock nut at the slider 1
and pull the slider upward 2. Set
the tablet on the lower holder arms
and place it in the tablet holder 3.
Make sure the back of the tablet
lies flat against the holder. Set the
slider on the tablet 4 and hand-
tighten the lock nut 5.
Z The clamping range can be ad-
justed using the two drill holes. To
do this, unscrew the lock nut 1.
Remove the screw from the first
hole (1) and insert it into the se-
cond (2), for example. Screw the
lock nut into place
