2. 2. Installation
Step 1: Always make sure that the electricity is switched off during installation. Then connect the
wires as indicated in the 'Connection diagram'.
Step 2: Now install the dimmer in the mounting box.
Step 3: Switch the electricity back on. Switch on the connected lights by pressing the dimmer shaft.
Now adjust the 'MIN= adjustment, as described under 'MIN installation'
Step 4: Optionally you may connect the dimmer to your SMART home system as indicated under
the heading "Connecting home automation / apps".
Step 5: Place back the cover plate and dimmer knob.

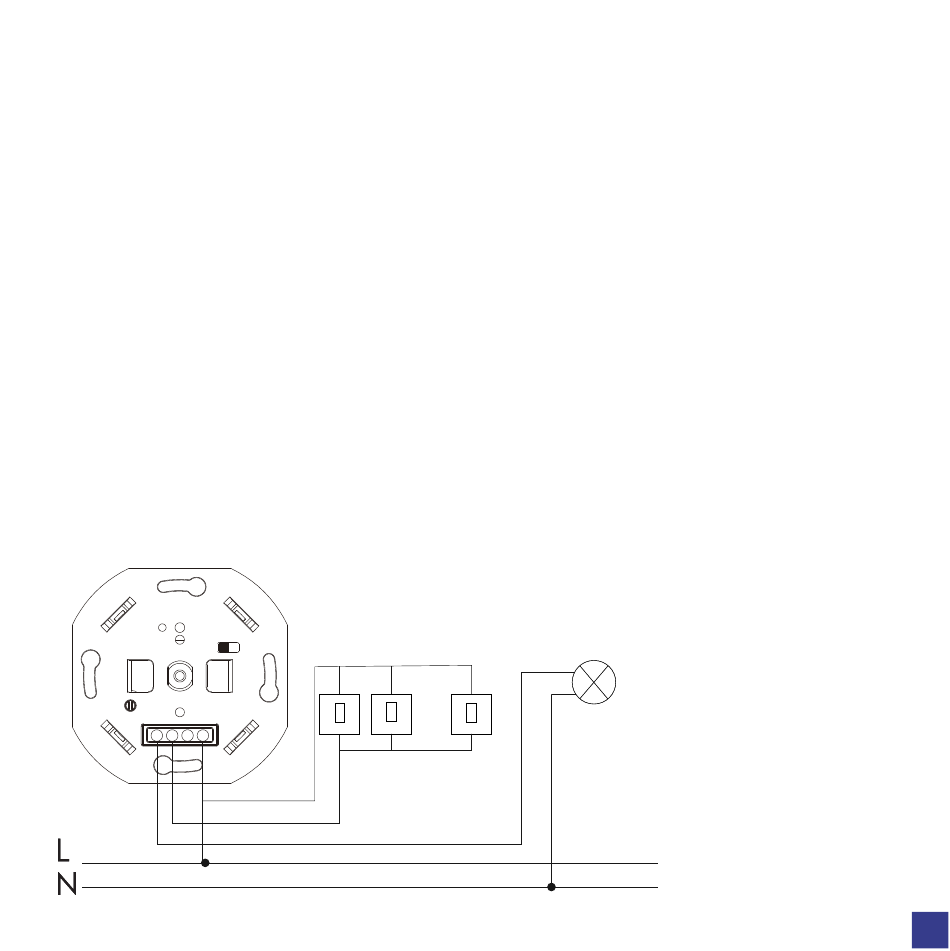

3. 3. Connection diagram
