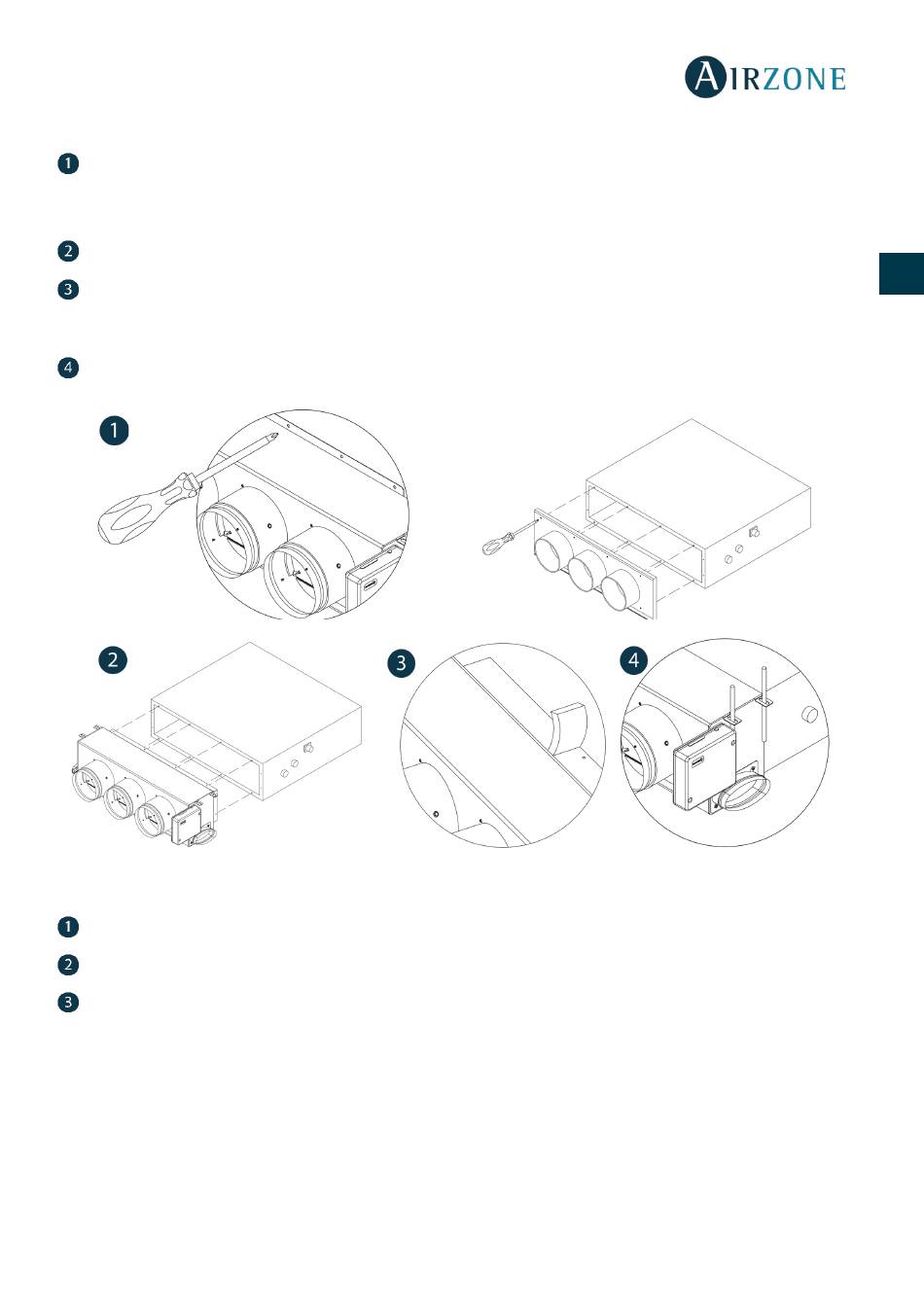

ASSEMBLY TO INDOOR UNIT
Locate the fixing holes. If they are covered, use a screwdriver to uncover them in order to assemble the Easyzone in the
unit.
Important: If your unit has circular adapters in the front part, remove it and mount the adapter to Easyzone provided by Airzone.
Place the Easyzone in the pressure port of the unit and attach it to this using the screws.
After fixing screws be sure to insulate the connection frame to prevent condensation forming. Use bands of insulating
material (glass wool or polyethylene foam) of a thickness of 25 mm. The width of the insulation bands are 97 mm for Standard
and Medium motorized plenum and 36 mm for Slim motorized plenum.
Attach the Easyzone to the ceiling through the tabs on the ends with threaded rods.
VENTILATION AIR INTAKE ASSEMBLY
Remove the elliptical neck that is secured by screws.
Remove the protection plate that covers the external air intake and reattach the elliptical neck.
Double or cut the lid at the bottom of the pressure dampers to allow the air to pass.
