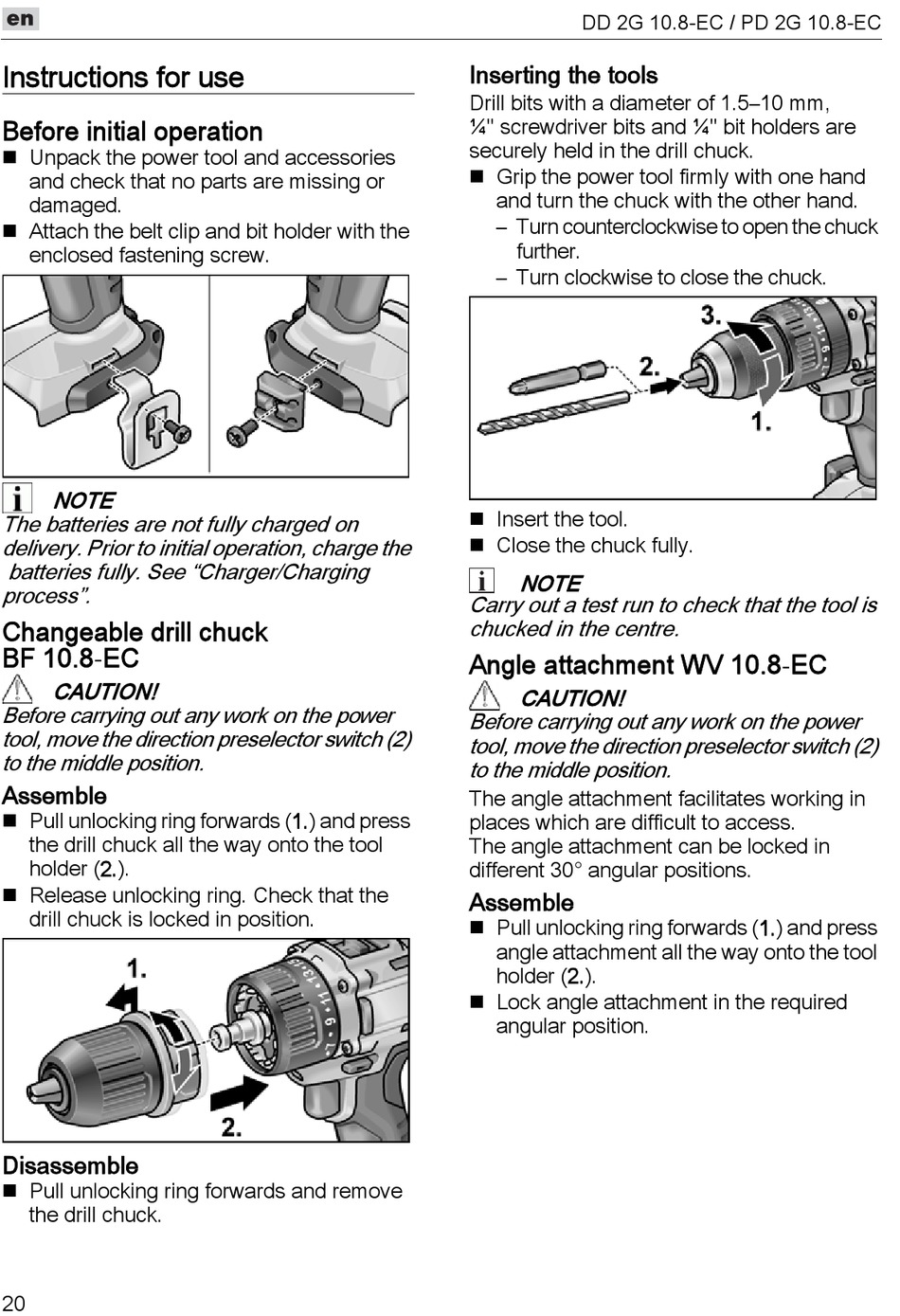

Instructions for use
Before initial operation
 Unpack the power tool and accessories
and check that no parts are missing or
damaged.
 Attach the belt clip and bit holder with the
enclosed fastening screw.
NOTE
The batteries are not fully charged on
delivery. Prior to initial operation, charge the
batteries fully. See "Charger/Charging
process".
Changeable drill chuck
BF 10.8-EC
CAUTION!
Before carrying out any work on the power
tool, move the direction preselector switch (2)
to the middle position.
Assemble
 Pull unlocking ring forwards (1.) and press
the drill chuck all the way onto the tool
holder (2.).
 Release unlocking ring. Check that the
drill chuck is locked in position.
Disassemble
 Pull unlocking ring forwards and remove
the drill chuck.
20
DD 2G 10.8-EC / PD 2G 10.8-EC
Inserting the tools
Drill bits with a diameter of 1.5–10 mm,
¼" screwdriver bits and ¼" bit holders are
securely held in the drill chuck.
 Grip the power tool firmly with one hand
and turn the chuck with the other hand.
– Turn counterclockwise to open the chuck
further.
– Turn clockwise to close the chuck.
 Insert the tool.
 Close the chuck fully.
NOTE
Carry out a test run to check that the tool is
chucked in the centre.
Angle attachment WV 10.8-EC
CAUTION!
Before carrying out any work on the power
tool, move the direction preselector switch (2)
to the middle position.
The angle attachment facilitates working in
places which are difficult to access.
The angle attachment can be locked in
different 30° angular positions.
Assemble
 Pull unlocking ring forwards (1.) and press
angle attachment all the way onto the tool
holder (2.).
 Lock angle attachment in the required
angular position.
