This menu allows to change the functions concerning camera parameters. Select this menu item to access
to the following submenu:
MIRROR
LANGUAGE
DPC
RETURN
Option
MIRROR
LANGUAGE
DPC
DPC - DEAD PIXEL COMPENSATION ( DAMAGED PIXEL COMPENSATION)
This function allow to repair sensor single pixels under low light condition, reducing the brightness of the
too bright pixels. Press the button "START" (present in the menus WHITE DPC and BLACK DPC), the
message "Close the iris then press Enter" will be displayed. Cover the lens with a black lid to prevent light
from passing through. Make sure the image is totally dark and not cover the light sensor (CDS), in order the
leds are not turned on (if leds are turned on, they become red).
Press again the button "ENTER", the message "Waiting....." will be displayed and the compensation
process will start. After few seconds, the menu will go back to the previous level. If the camera doesn't go
back to the previous menu level (because it has not been totally darkened or because leds were on), switch
off and switch on the camera and repeat the operation.
Don't modify the default values of the shown parameters in the DPC menu.
LIVE DPC
WHITE DPC
BLACK DPC
RETURN
Option
LIVE DPC
WHITE DPC
BLACK DPC
DS1092-543A
All manuals and user guides at all-guides.com

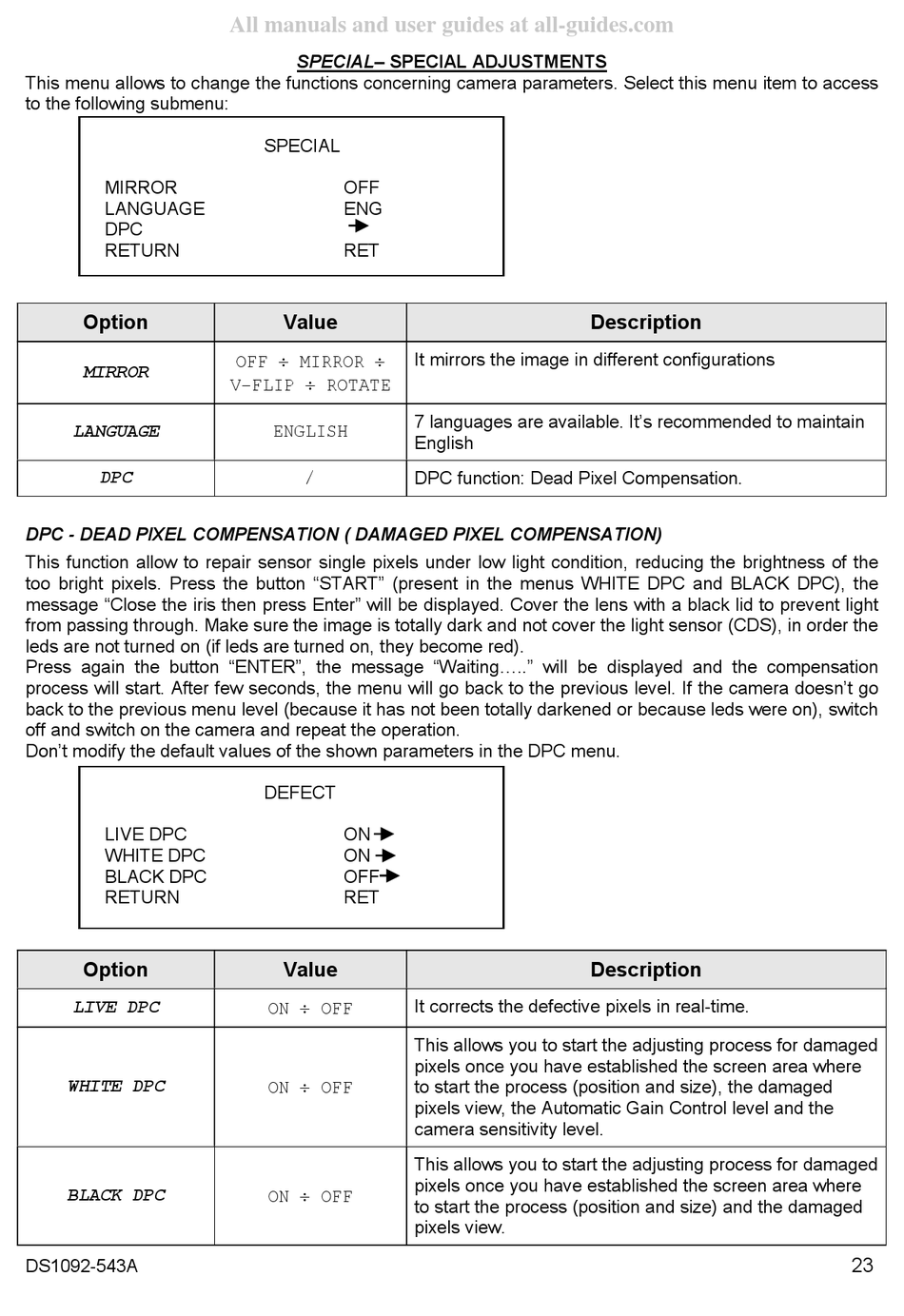

SPECIAL– SPECIAL ADJUSTMENTS
SPECIAL
OFF
ENG
RET
Value
OFF MIRROR
V-FLIP ROTATE
ENGLISH
/
DEFECT
ON
ON
OFF
RET
Value
ON OFF
ON OFF
ON OFF
It mirrors the image in different configurations
7 languages are available. It's recommended to maintain
English
DPC function: Dead Pixel Compensation.
It corrects the defective pixels in real-time.
This allows you to start the adjusting process for damaged
pixels once you have established the screen area where
to start the process (position and size), the damaged
pixels view, the Automatic Gain Control level and the
camera sensitivity level.
This allows you to start the adjusting process for damaged
pixels once you have established the screen area where
to start the process (position and size) and the damaged
pixels view.
Description
Description
23
