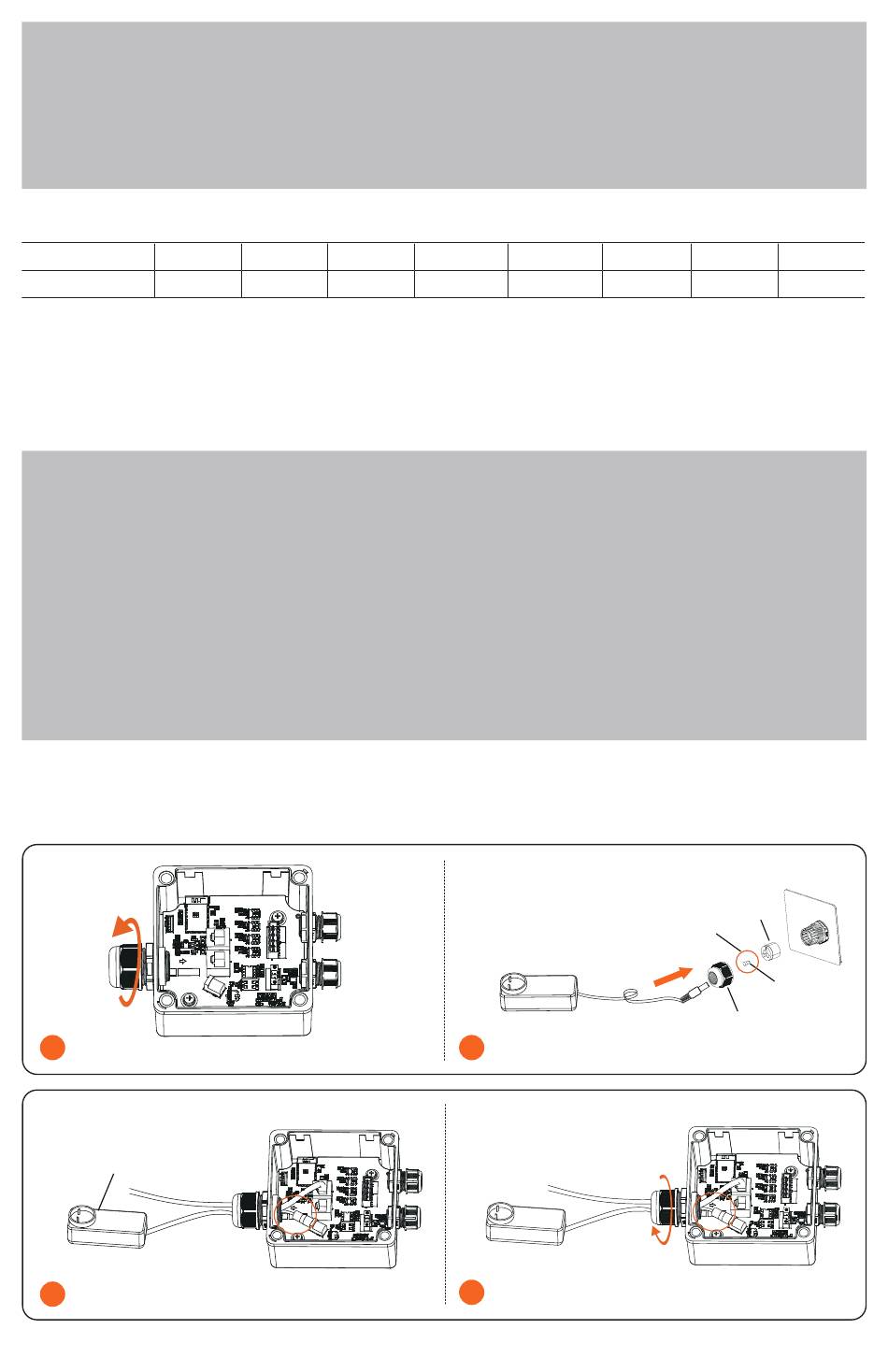

SolaX Power Box G2 Installationsanleitung Seite 50

RS485 Port Connection / Anschluss des RS485-Anschlusses / Raccordement au port
RS485 / Conexión al puerto RS485 / Ligação da porta RS485 / Aansluiting RS485-
poort / Collegamento della porta RS485 / Połączenie portu RS485 / Připojení portu
RS485 / RS485 Portanslutning / RS485 Port Conexiune / Свързване с RS485 порт /
RS485-portforbindelse / Σύνδεση θύρας RS485 / RS485 pordi ühendus / RS485-portin
liitäntä / Veza s priključkom RS485 / RS485 Port csatlakozás / RS485 prievado jungtis /
RS485 pieslēgvietas savienojums / Pripojenie portu RS485 / Povezava vrat RS485
• Pin definition for RS485
Pin
Pin Definition
Function of RS485 port
- a branch port of RS485_INV port for RS485 communication with other devices.
Note: Please refer to the cable connection of the RS485_INV port for connection methods
of the RS485 port.
Power Adapter Connection (optional)/ Anschluss des Netzadapters (optional)
/ Raccordement à l'adaptateur secteur (en option) / Conexión al adaptador de
alimentación (opcional) / Ligação do adaptador de energia (opcional) / Aansluiting
voedingsadapter (optioneel) / Connessione dell'adattatore di alimentazione
(facoltativo) / Połączenie zasilacza (opcjonalnie) / Připojení napájecího adaptéru
(volitelné) / Anslutning av nätadapter (tillval) / Conexiune adaptor de alimentare
(opțional) / Свързване със захранващ адаптер (опционално) / Tilslutning til
strømadapter (valgfrit) / Σύνδεση τροφοδοτικού (προαιρετικό) / Toiteadapteri ühendus
(valikuline) / Verkkolaitteen liitäntä (lisävaruste) / Veza s adapterom za napajanje
(opcionalno) / Tápadapter-csatlakozás (opcionális) / Maitinimo adapterio jungtis
(pasirinktinai) / Jaudas adaptera savienojums (izvēle) / Pripojenie napájacieho adaptéra
(voliteľné) / Povezava napajalnika (izbirno)
Note: a power adapter is needed when the inverter cannot supply power for the adapter
box.
1
Power adapter
3
1 2
X X
Power adapter port
3 4
X RS485_A RS485_B
2
4
5 6
X
Rubber stopper
Pull out
Waterproof connector
7 8
X X
Pull
