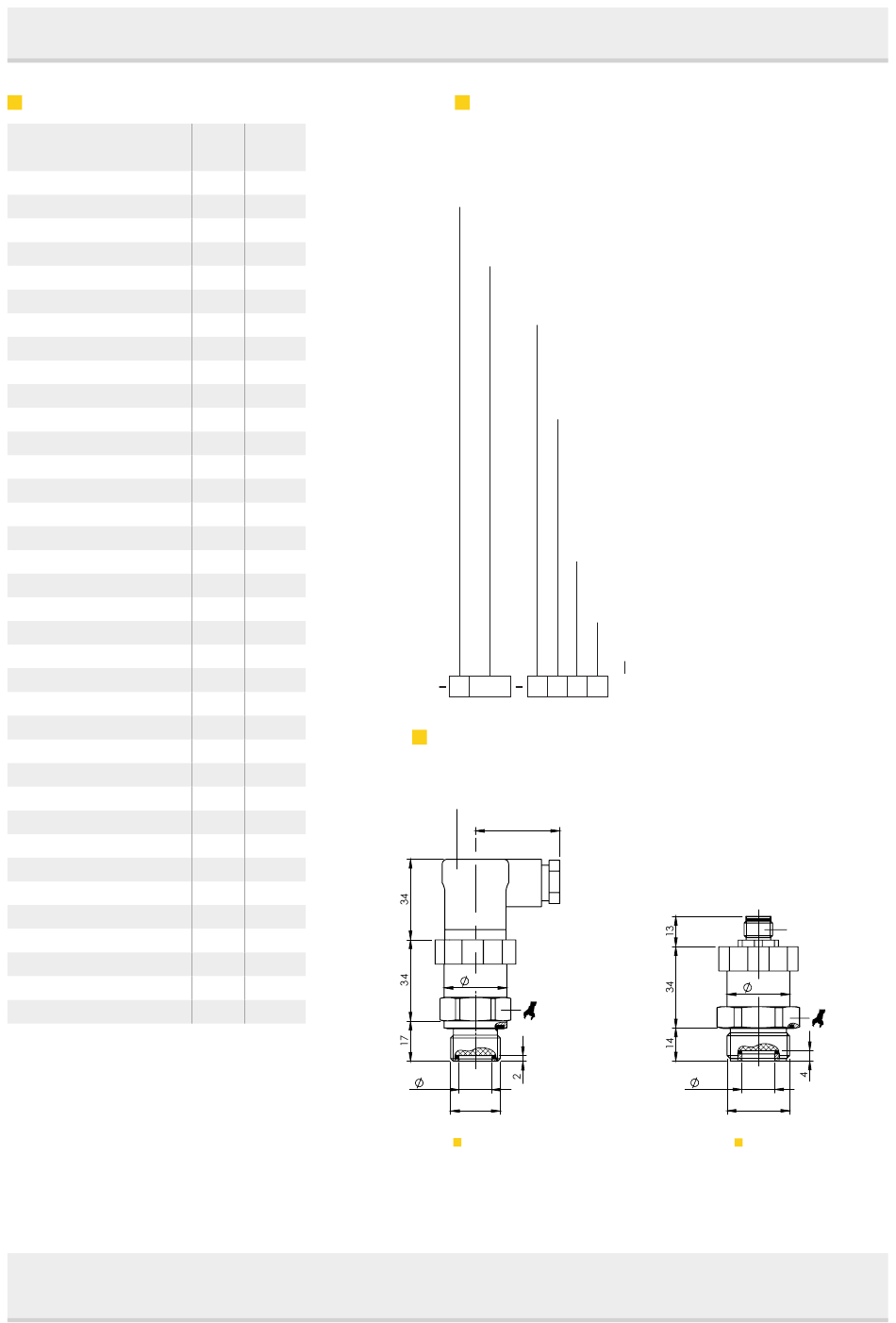

P20 Operating Instructions Pressure Transmitter
MEASURING RANGES
ranges
0...50 mbar / 0...5 kPa*
0...60 mbar / 0...6 kPa*
0...100 mbar / 0...10 kPa
0...160 mbar / 0...16 kPa
0...200 mbar / 0...20 kPa
0...250 mbar / 0...25 kPa
0...300 mbar / 0...25 kPa
0...400 mbar / 0...40 kPa
0...500 mbar / 0...50 kPa
0...600 mbar / 0...60 kPa
0...1 bar / 0...100 kPa
0...1,6 bar / 0...160 kPa
0...2 bar / 0...200 kPa
0...2,5 bar / 0...250 kPa
0...4 bar / 0...400 kPa
0...5 bar / 0...500 kPa
0...6 bar / 0...600 kPa
0...10 bar / 0...1 MPa
0...16 bar / 0...1,6 MPa
0...20 bar / 0...2 MPa
0...25 bar / 0...2,5 MPa
0...40 bar / 0...4 MPa
-100...0 mbar / -10...0 kPa
-100...100 mbar / -10...10 kPa
-200...0 mbar / -20...0 kPa
-200...200 mbar / -20...20 kPa
-1...0 bar / -100...100 kPa
-1...1 bar / -100...100 kPa
-1...3 bar / -100...300 kPa
-1...5 bar / -100...500 kPa
-1...9 bar / -100...900 kPa
-1...15 bar / -0,1...1,5 MPa
-1...19 bar / -0,1...1,9 MPa
-1...20 bar / -0,1...2 MPa
-1...25 bar / -0,1...2,5 MPa
-1...40 bar / -0,1...4 MPa
* Accuracy 0,5%
1
For G1/2" and process seal FFKM,
the thread seal is FPM as standard, EPDM optionally.
Nöding Messtechnik GmbH • Oldenfelder Bogen 29 • D-22143 Hamburg, Germany • Tel.: +49 40 67 58 51 – 0
Fax: +49 40 67 58 51 – 49 • Internet: www.noeding-messtechnik.de • E-mail: info@noeding-messtechnik.de
overload
relative
(bar)
B0
-0,7/2,7
A9
-0,7/2,7
00
-0,7/2,7
01
-1/3,3
B1
-1/3,3
02
-1/4
X5
-1/4
03
-1/4
B7
-1/6,7
04
-1/6,7
05
-1/6,7
06
-1/12
B3
-1/12
07
-1/16,7
08
-1/16,7
F1
-1/26,7
09
-1/26,7
10
-1/26,7
11
-1/26,7
B5
-1/26,7
12
-1/40
13
-1/40
C4
-0,7/2,7
C5
-0,7/2,7
D2
-1/3,3
D3
-1/3,3
D4
-1/6,7
D6
-1/6,7
D8
-1/16,7
D9
-1/26,7
E1
-1/26,7
E2
-1/26,7
E3
-1/26,7
E8
-1/26,7
E7
-1/40
F9
-1/40
PROCESS CONNECTION
ORDERING CODE
Output signal
1 0...10 V 3-wires
4 4...20 mA 2-wires
H 4...20 mA 2-wires, high temperature -25...125 °C
Ranges
Measuring ranges see table
99 Non-standard range (on request)
Process connection and material
1 G 1/2 A, DIN EN ISO 1179-2, 1.4404
9 Others (on request)
Sensor seal
1 FPM (Viton), standard
2 NBR (Perbuan), max. 80 °C
3 EPDM
9 Others (on request)
Electrical connection
A Connector M12x1 4-pole
1 Connector EN 175301-803A
6 2 m cable
0 5 m cable
H 10 m cable
R 25 m cable
9 Others (on request)
P20
DIMENSIONS
Connector
EN 175301-803A
36
26,5
27
13,8
G1/2A
TYPE 1
Version
0 Without potted electronics
1 Potted electronics
Options
01 0,1% Accuracy (>=100mbar)
...
26,5
13,8
G3/4A
TYPE Q
EN
M12x1
32
