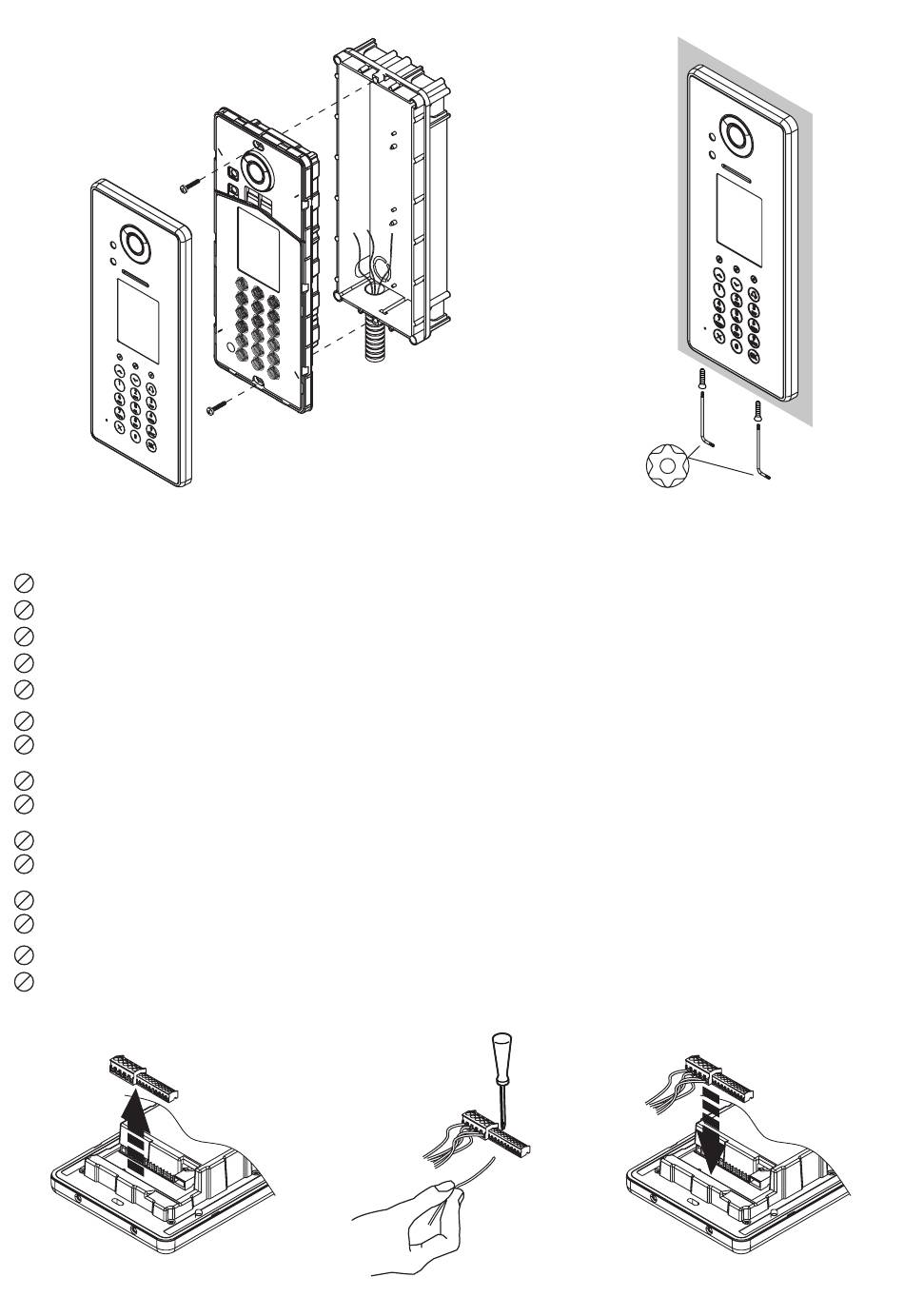

2.1 DESCRIPTION OF TERMINALS

C Common lock relay contact
NO Normally open lock relay contact
NC Normally closed lock relay contact
}
SE-
Discharge lock terminals
SE+
]
PA Hall button terminals for operating lock relay
]
SP Open door sensor terminals
]
SE2 Garage gate contact terminals (NO)
]
AD Hearing aid audio device terminals
}
V+
Auxiliary power terminals
V-
LAN Ethernet connector for LAN RJ45
DS1060-117A
}
Simultaneous activation
