SYSTEM OVERVIEW

1
2
3
5

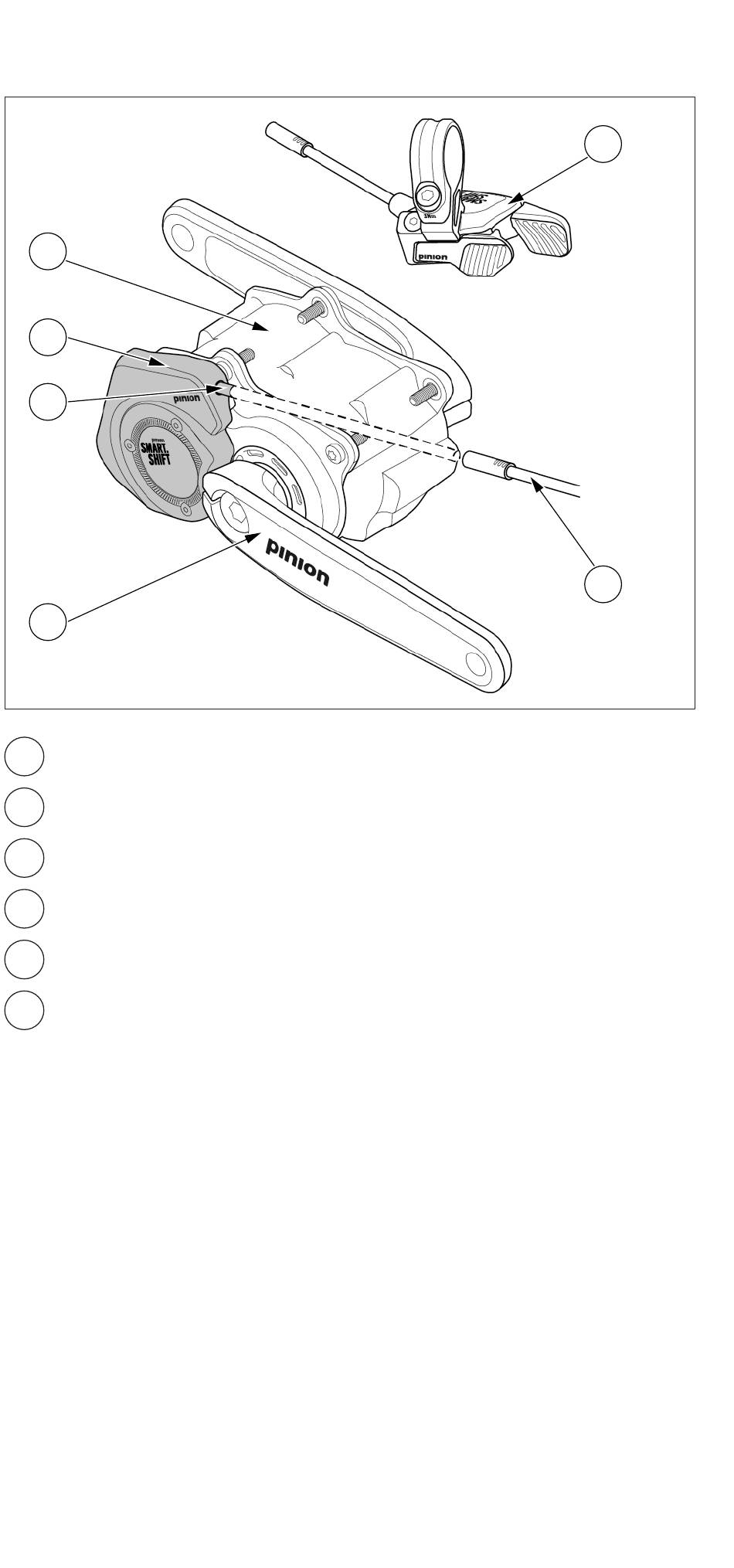

1 Smart.Shift gearbox (e.g. C1.12i)
2 Smart.Shift box
3 Cable outlet on the Smart.Shift box
4 E-trigger TE1
5 Pinion crank with sensor magnet
6 Wiring harness

INDIVIDUAL COMPONENTS

SMART.SHIFT GEARBOX
For the use of Pinion Smart.Shift technology, special variants
of Pinion gearboxes are required. Shifting mechanics and
sensor technology are the main differences. All gearboxes
compatible with Smart.Shift are marked with "i" on the series
label (C1.12i, C1.9i, C1.6i).
