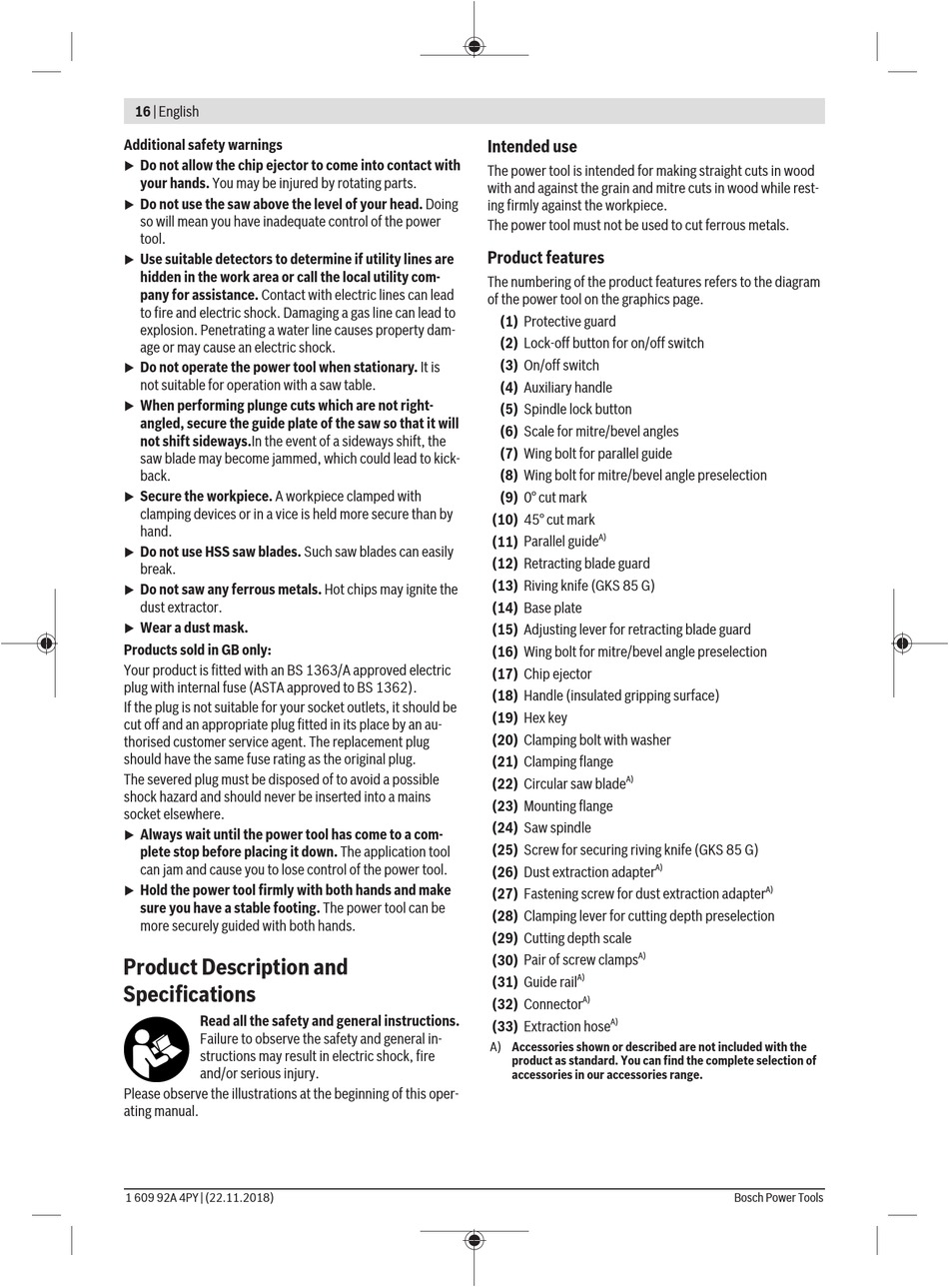

16 | English
Additional safety warnings
Do not allow the chip ejector to come into contact with
u
your hands. You may be injured by rotating parts.
Do not use the saw above the level of your head. Doing
u
so will mean you have inadequate control of the power
tool.
Use suitable detectors to determine if utility lines are
u
hidden in the work area or call the local utility com-
pany for assistance. Contact with electric lines can lead
to fire and electric shock. Damaging a gas line can lead to
explosion. Penetrating a water line causes property dam-
age or may cause an electric shock.
Do not operate the power tool when stationary . It is
u
not suitable for operation with a saw table.
When performing plunge cuts which are not right-
u
angled, secure the guide plate of the saw so that it will
not shift sideways.In the event of a sideways shift, the
saw blade may become jammed, which could lead to kick-
back.
Secure the workpiece. A workpiece clamped with
u
clamping devices or in a vice is held more secure than by
hand.
Do not use HSS saw blades. Such saw blades can easily
u
break.
Do not saw any ferrous metals. Hot chips may ignite the
u
dust extractor.
Wear a dust mask.
u
Products sold in GB only:
Your product is fitted with an BS 1363/A approved electric
plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an au-
thorised customer service agent. The replacement plug
should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains
socket elsewhere.
Always wait until the power tool has come to a com-
u
plete stop before placing it down. The application tool
can jam and cause you to lose control of the power tool.
Hold the power tool firmly with both hands and make
u
sure you have a stable footing. The power tool can be
more securely guided with both hands.
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.
1 609 92A 4PY | (22.11.2018)

Intended use

The power tool is intended for making straight cuts in wood
with and against the grain and mitre cuts in wood while rest-
ing firmly against the workpiece.
The power tool must not be used to cut ferrous metals.

Product features

The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1) Protective guard
(2) Lock-off button for on/off switch
(3) On/off switch
(4) Auxiliary handle
(5) Spindle lock button
(6) Scale for mitre/bevel angles
(7) Wing bolt for parallel guide
(8) Wing bolt for mitre/bevel angle preselection
(9) 0° cut mark
(10) 45° cut mark
A)
(11) Parallel guide
(12) Retracting blade guard
(13) Riving knife (GKS 85 G)
(14) Base plate
(15) Adjusting lever for retracting blade guard
(16) Wing bolt for mitre/bevel angle preselection
(17) Chip ejector
(18) Handle (insulated gripping surface)
(19) Hex key
(20) Clamping bolt with washer
(21) Clamping flange
A)
(22) Circular saw blade
(23) Mounting flange
(24) Saw spindle
(25) Screw for securing riving knife (GKS 85 G)
A)
(26) Dust extraction adapter
(27) Fastening screw for dust extraction adapter
(28) Clamping lever for cutting depth preselection
(29) Cutting depth scale
A)
(30) Pair of screw clamps
A)
(31) Guide rail
A)
(32) Connector
A)
(33) Extraction hose
A) Accessories shown or described are not included with the
product as standard. You can find the complete selection of
accessories in our accessories range.
A)
