ASSEMBLY OF THE
METALLIC STRIPS
x1B
PV1335
PG
PEU
TM69

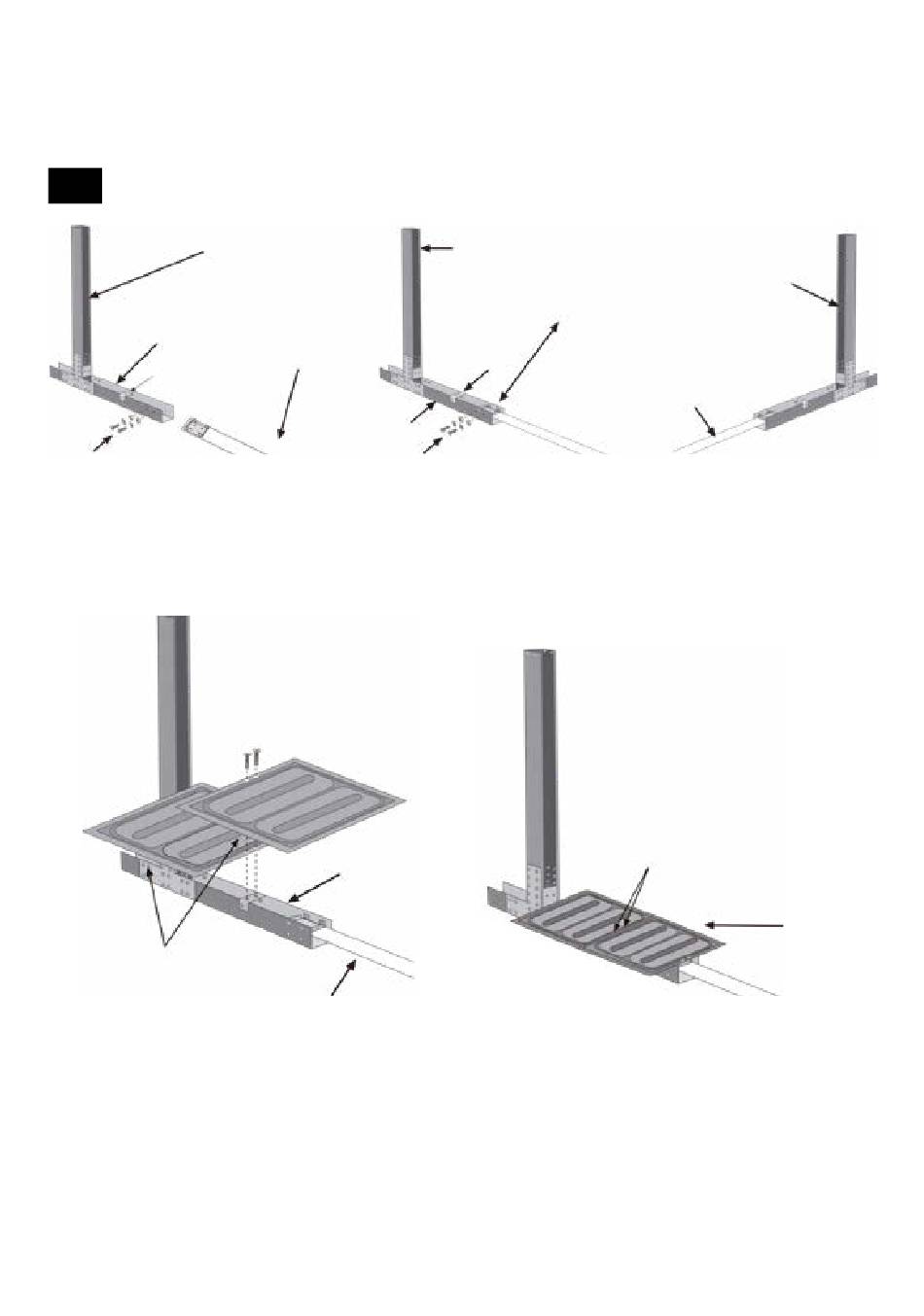

ASSEMBLY OF THE METALLIC STRAPS (CN) ON THE COLUMNS (C)
Bolt the part PEU with two upper holes in the centre of the PG part.
Bolt the end of each strap (CN) into the two upper holes of the end of the PG with the four TM& bolts and the two nuts
TM69, very tight. Lastly, bolt the other ends corresponding to the PG of the column C (PV1335).
AP
Place the flap AP so that it coincides with its two holes with those of the PEU part (the closest to the part PV1335).
Then, place the other AP flap and fix them with two bolts TM640 (place the AP flaps after having introduced the support
into the previously prepared ditch).
CN
PG
TM69
TM640
x2
PG
CN
PV1335
CN
PEU
56
PV1335
CN
AP x2
