Connection

9
10
*necessary if water pressure
Heating time of the water depending on PV-Power
Power
200 W
400 W
550 W
Note
The values given in the table are intended as a
guideline. The heating times depend on many factors
(power, ambient air temperature, water withdrawal)
and may differ from reality. The greater the connected
photovoltaic power,

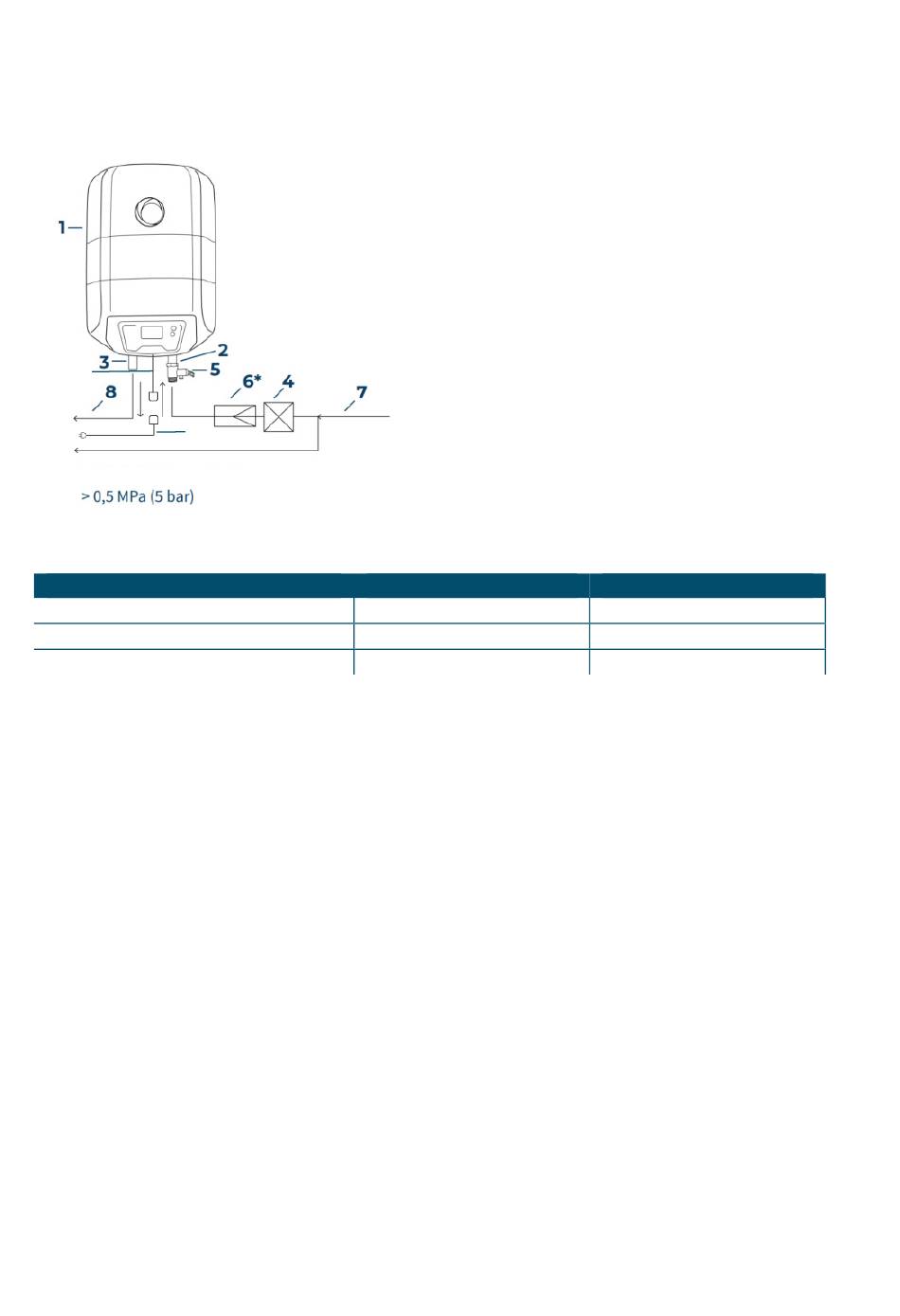

6
1
Water heater
2
Water inlet
3
Water outlet
4
shut off valve*
5 combined check and -
pressure relief valve
6 Pressure reducing
valve*
Value
°C/h
°C/h
°C/h
the more the water can be heated on days with low
solar radiation. The water is heated with a maximum
power of 550 W, even if more photovoltaic power is
available
7
Cold water
8 Hot water
9 Device plug for
external mains current
10 Power cable*
*not included
CPVB-10
6
12
