GB
3.5

Electrical connection

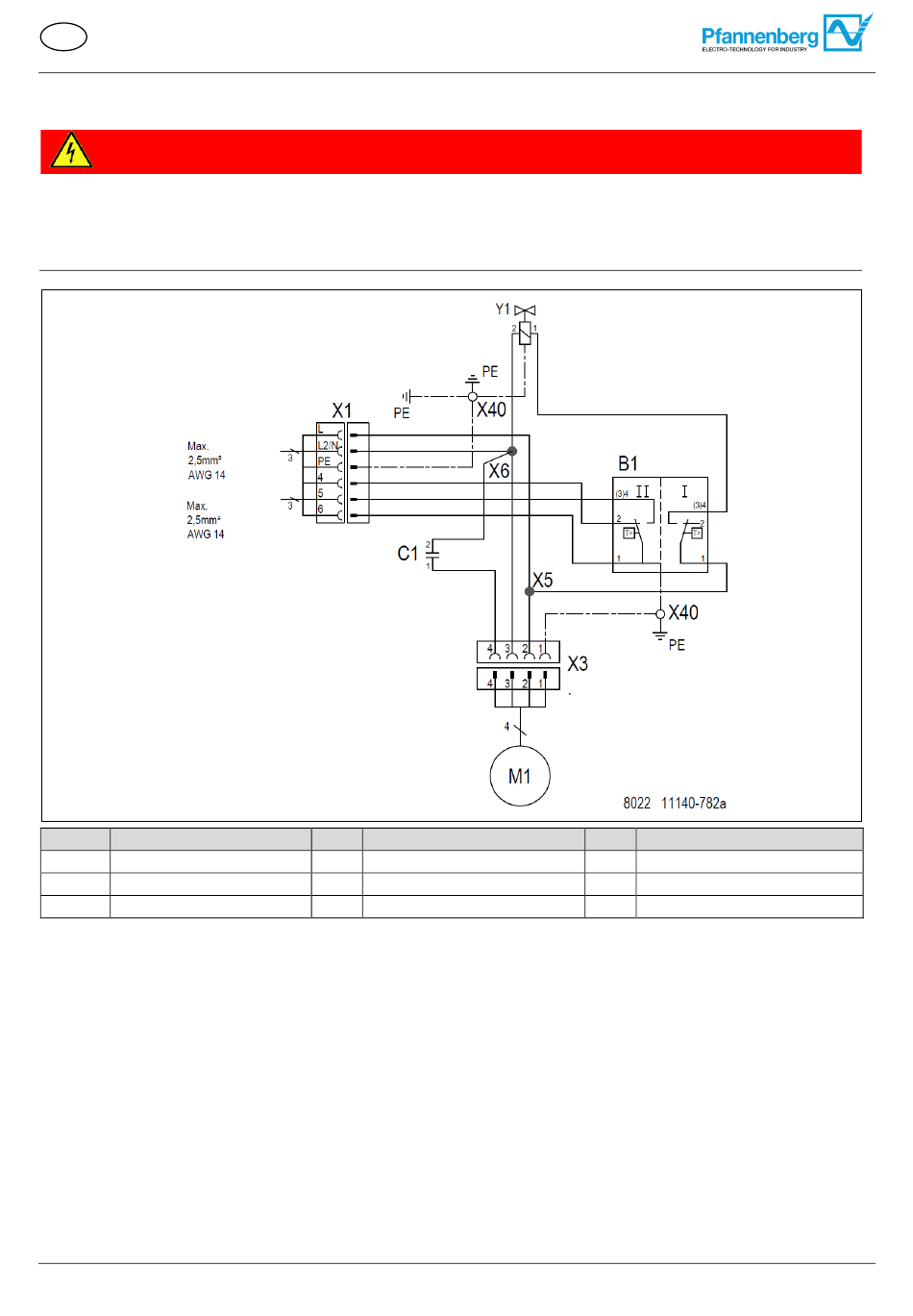

Electrical circuit diagram –230V/ 115 V
3.5.1
DANGER
Life-threatening danger due to electric shock
Live units and exposed connection cables can generate an electric shock and cause severe accidents.
➢ Work on electrical connections must be carried out exclusively by trained, qualified electricians.
➢ Ensure that the unit is voltage-free before routing all electrical connections.
Power cable
Pos Designation
B1 Thermostat
X1 Plug contact
X6 Terminal contact
Operating manual PWS and PWI 6102 086100043a © Pfannenberg GmbH
Cover
Alarm
Pos Designation
C1 Condenser
X3 Plug contact
X40 Ground terminal contact
Pos Designation
M1 Fan
X5 Terminal contact
Y1 Solenoid valve
Page 20 / 31
