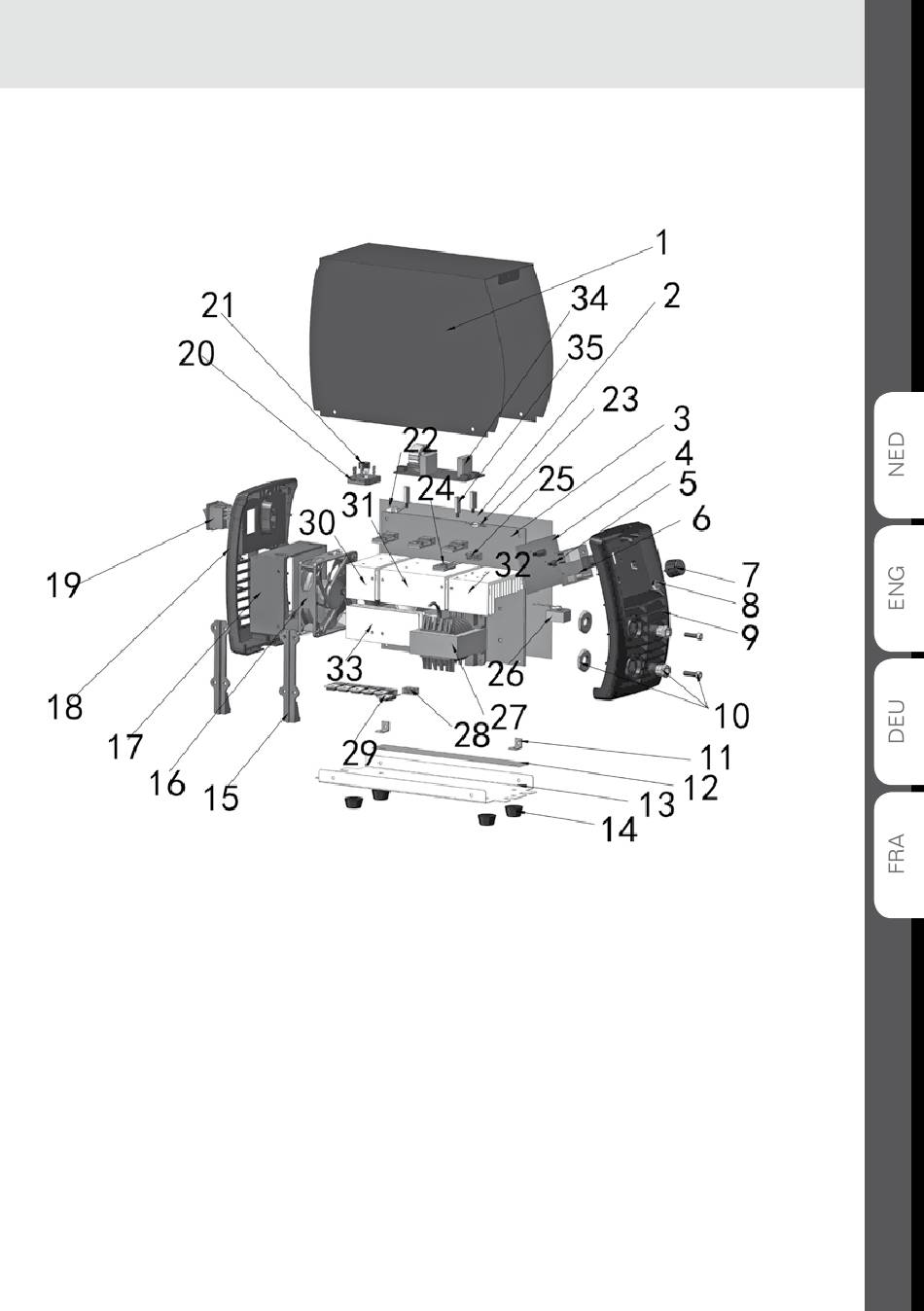

B. ONDERDELENTEKENING / SPARE PARTS LIST
ERSATZTEILZEICHNUNG / SCHÉMA DES PIÈCES
Pos. Description
1 Cover
2 Insulation paper
3 Main PCB
4 Control PCB
5 Isolating pillar
6 Front display PCB
7 Knob
8 Water proof cap
9 Front panel
10 Socket
11 Base foot
12 Insulation paper
13 Base plate
14 Foot
15 Holder
16 Fan
17 Fan fixing cover
18 Rear panel drawing
Quantity Pos.
1
19
2
20
1
21
1
22
2
23
1 24
1 25
1 26
1 27
2 28
2 29
1 30
1 31
4 32
2 33
1 34
1 35
1
Description
Switch
Rectifier bridge
Rectifier positioning cap
Switch (Normally open)
Switch (Normally open)
IGBT module
Collets
Current transformer
Main transformer
Collets
Fast recovery diode
Heat sink
Heat sink
Heat sink
Heat sink
EMC PCB
Isolating pillar
Quantity
1
1
1
1
1
4
4
1
1
6
6
1
1
1
1
1
3
