Cord Management - peerless-AV PP740 Anbringung Und Zusammenbau

• Do not tighten screws with excessive force. Overtightening can cause damage to mount. Tighten screws
to 40 in. • lb (4.5 N.M.) maximum torque.
10-32 x 1/2" screws are pretensioned and require
6
no adjustment. Rotate display by hand to level
display. Roll bracket allows 2° roll adjustment.

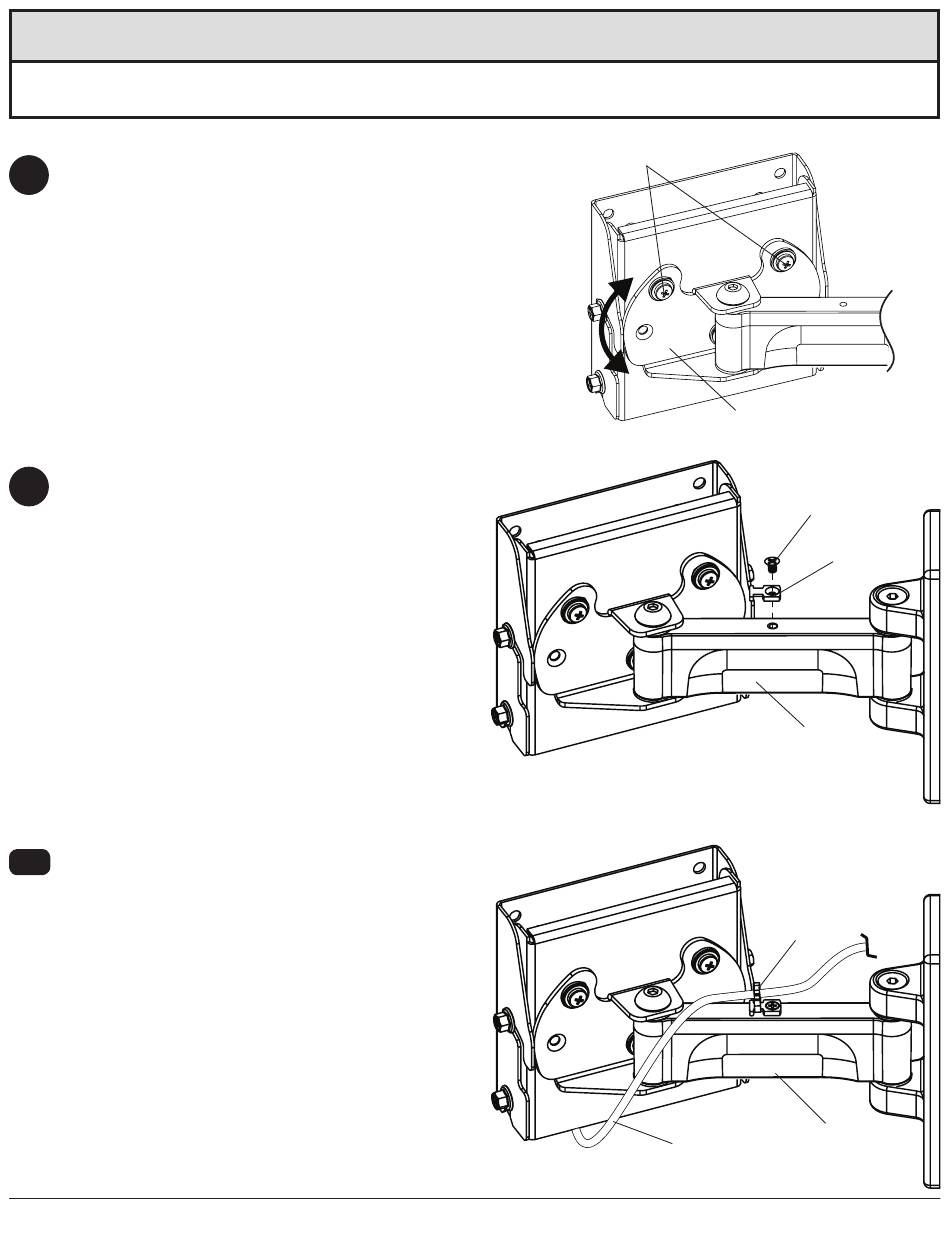

Cord Management

Attach cable tie anchor (N) to top or bottom of wall
7
arm (A) using 8-32 x 1/4" screw (o) as shown.
Secure cords to wall arm (A) using cable tie (M).
7-1
CAUTIoN
1/4-20
2° ROLL
10 of 46
1/2" SCREWS
x
ROLL BRACKET
CORD
ISSUED: 01-15-08 SHEET #: 095-9282-7 02-27-14
o
N
A
M
