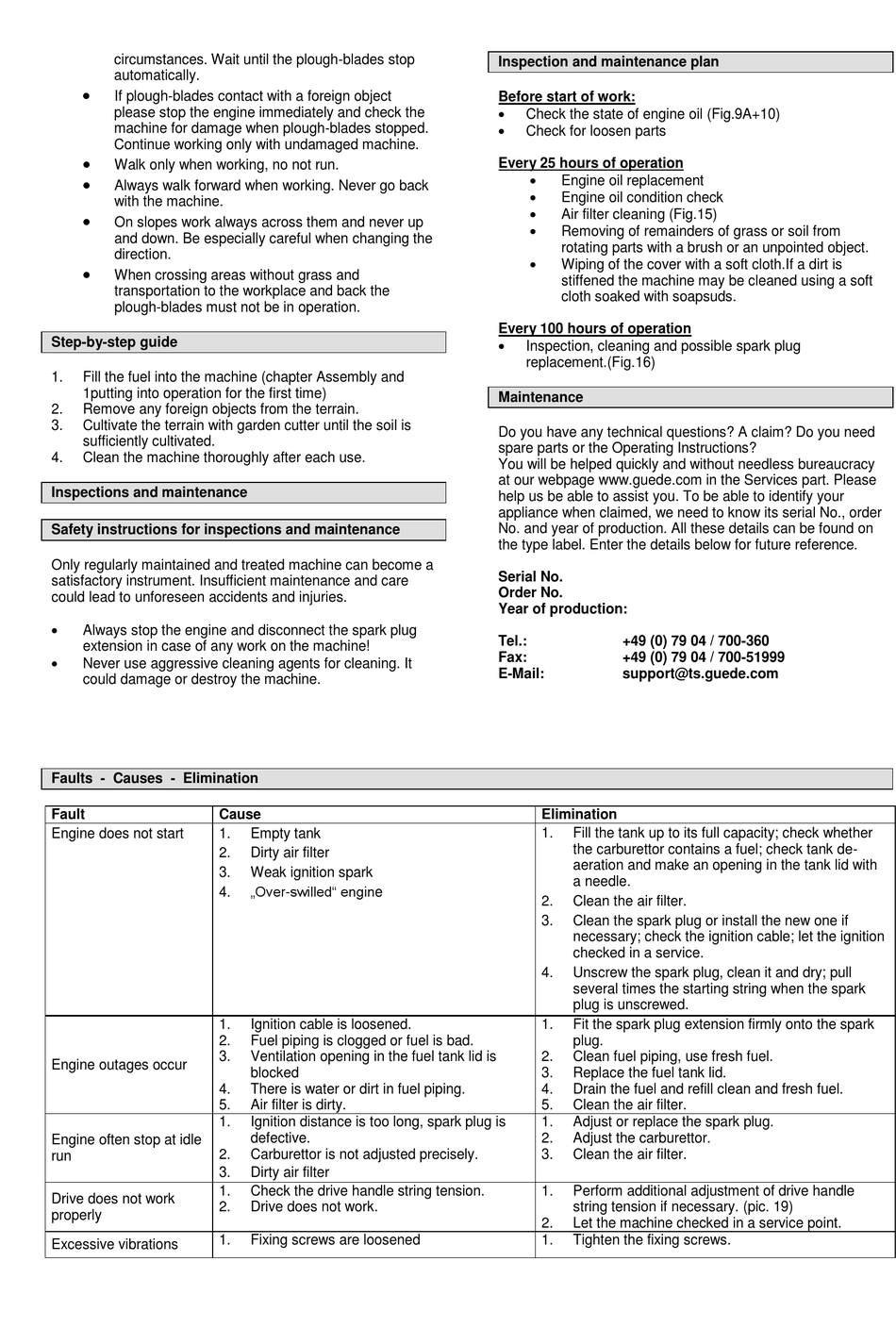

circumstances. Wait until the plough-blades stop
automatically.
If plough-blades contact with a foreign object
please stop the engine immediately and check the
machine for damage when plough-blades stopped.
Continue working only with undamaged machine.
Walk only when working, no not run.
Always walk forward when working. Never go back
with the machine.
On slopes work always across them and never up
and down. Be especially careful when changing the
direction.
When crossing areas without grass and
transportation to the workplace and back the
plough-blades must not be in operation.
Step-by-step guide
1.
Fill the fuel into the machine (chapter Assembly and
1putting into operation for the first time)
2.
Remove any foreign objects from the terrain.
3.
Cultivate the terrain with garden cutter until the soil is
sufficiently cultivated.
4.
Clean the machine thoroughly after each use.
Inspections and maintenance
Safety instructions for inspections and maintenance
Only regularly maintained and treated machine can become a
satisfactory instrument. Insufficient maintenance and care
could lead to unforeseen accidents and injuries.
Always stop the engine and disconnect the spark plug
extension in case of any work on the machine!
Never use aggressive cleaning agents for cleaning. It
could damage or destroy the machine.
Faults - Causes - Elimination
Fault
Cause
Engine does not start
1.
2.
3.
4.
1.
2.
3.
Engine outages occur
4.
5.
1.
Engine often stop at idle
2.
run
3.
1.
Drive does not work
2.
properly
1.
Excessive vibrations
Empty tank
Dirty air filter
Weak ignition spark
„Over-swilled" engine
Ignition cable is loosened.
Fuel piping is clogged or fuel is bad.
Ventilation opening in the fuel tank lid is
blocked
There is water or dirt in fuel piping.
Air filter is dirty.
Ignition distance is too long, spark plug is
defective.
Carburettor is not adjusted precisely.
Dirty air filter
Check the drive handle string tension.
Drive does not work.
Fixing screws are loosened
Inspection and maintenance plan
Before start of work:
Check the state of engine oil (Fig.9A+10)
Check for loosen parts
Every 25 hours of operation
Engine oil replacement
Engine oil condition check
Air filter cleaning (Fig.15)
Removing of remainders of grass or soil from
rotating parts with a brush or an unpointed object.
Wiping of the cover with a soft cloth.If a dirt is
stiffened the machine may be cleaned using a soft
cloth soaked with soapsuds.
Every 100 hours of operation
Inspection, cleaning and possible spark plug
replacement.(Fig.16)
Maintenance
Do you have any technical questions? A claim? Do you need
spare parts or the Operating Instructions?
You will be helped quickly and without needless bureaucracy
at our webpage www.guede.com in the Services part. Please
help us be able to assist you. To be able to identify your
appliance when claimed, we need to know its serial No., order
No. and year of production. All these details can be found on
the type label. Enter the details below for future reference.
Serial No.
Order No.
Year of production:
Tel.:
+49 (0) 79 04 / 700-360
Fax:
+49 (0) 79 04 / 700-51999
E-Mail:
support@ts.guede.com
Elimination
1.
Fill the tank up to its full capacity; check whether
the carburettor contains a fuel; check tank de-
aeration and make an opening in the tank lid with
a needle.
2.
Clean the air filter.
3.
Clean the spark plug or install the new one if
necessary; check the ignition cable; let the ignition
checked in a service.
4.
Unscrew the spark plug, clean it and dry; pull
several times the starting string when the spark
plug is unscrewed.
1.
Fit the spark plug extension firmly onto the spark
plug.
2.
Clean fuel piping, use fresh fuel.
3.
Replace the fuel tank lid.
4.
Drain the fuel and refill clean and fresh fuel.
5.
Clean the air filter.
1.
Adjust or replace the spark plug.
2.
Adjust the carburettor.
3.
Clean the air filter.
1.
Perform additional adjustment of drive handle
string tension if necessary. (pic. 19)
2.
Let the machine checked in a service point.
1.
Tighten the fixing screws.
