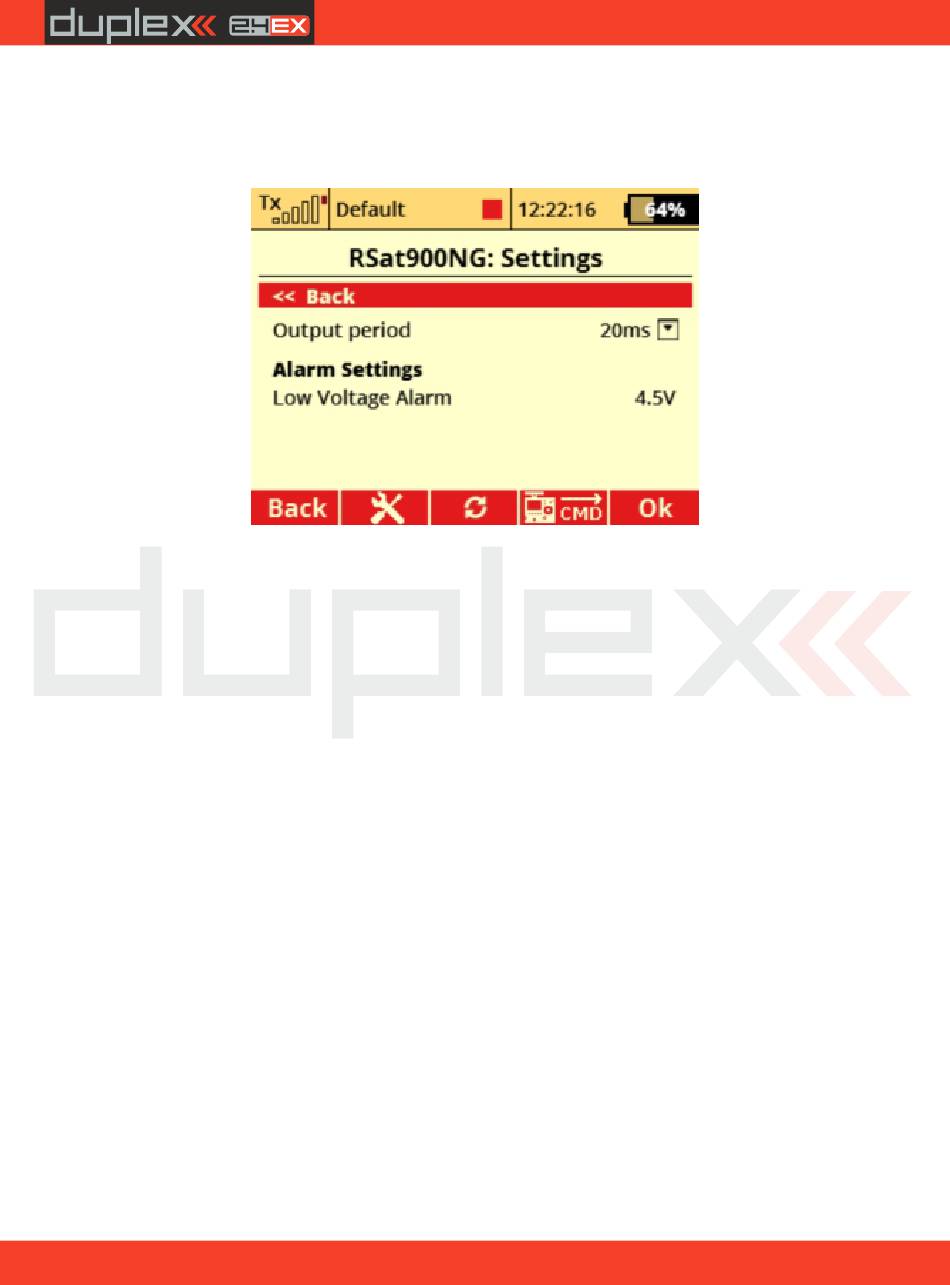

becomes lower than the threshold level, the transmitter emits an
acoustical warning tone.

7.2 Alternative Pin Config

Output settings E1, E2, E3:
EX-Bus - digital communication for transmission of servos
deviations, telemetry and configuration data. This setting is
suitable, for example, for connection to a Central Box or a device
that supports EX-Bus.
S.BUS - digital communication for transmission of servos
deviations. This setting is suitable, for example, for connecting to a
device that supports S.BUS.
UDI 12 - serial data output suitable for connection of devices with
unidirectional UDI interface (12 channels).
UDI 16 - serial data output suitable for connection of devices with
unidirectional UDI interface (16 channels).
Output settings Ext. : This pin is used to pair the receiver by a
jumper (bind plug).
