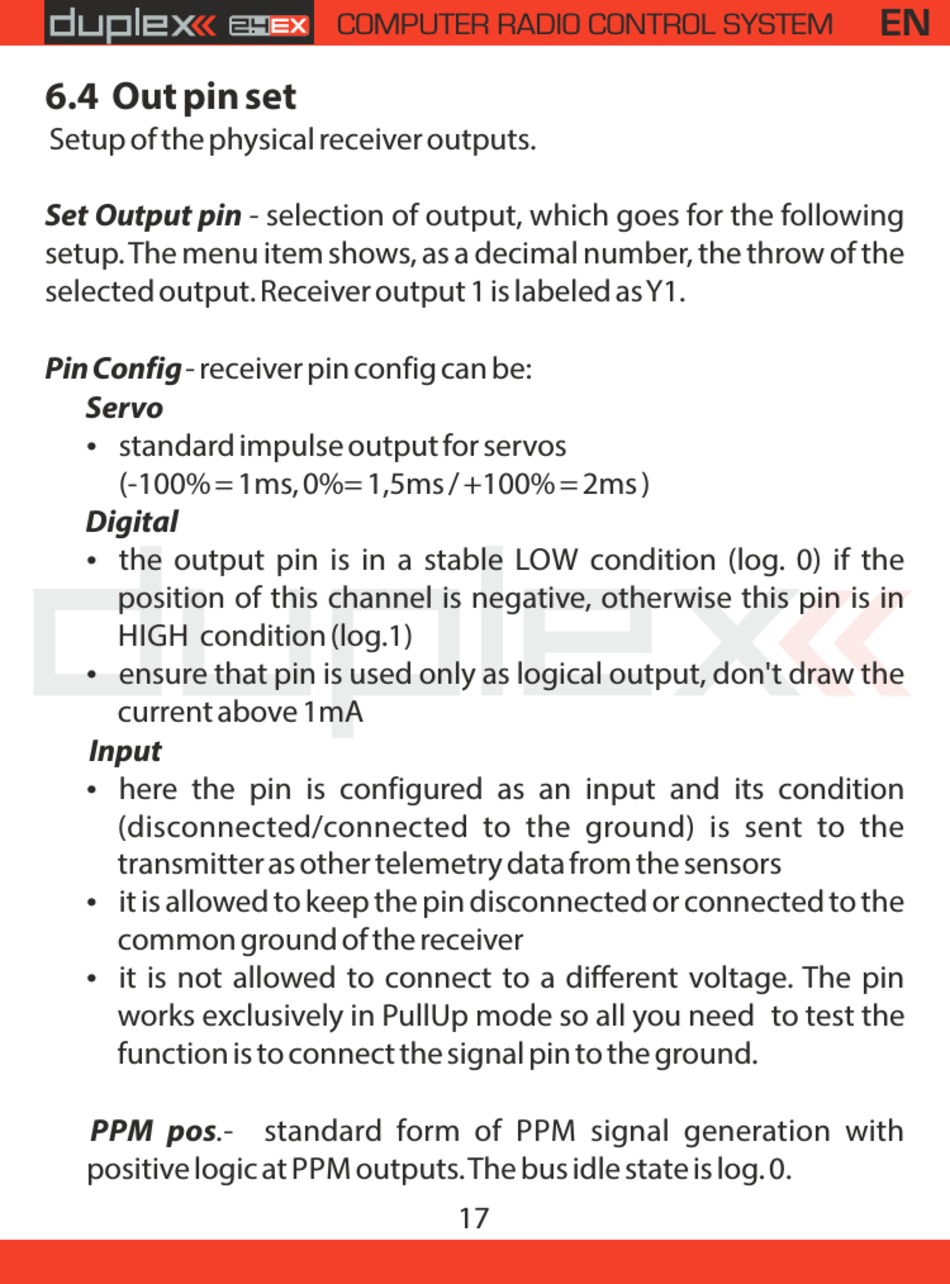

6.4 Out pin set

Setup of the physical receiver outputs.
Set Output pin - selection of output, which goes for the following
setup. The menu item shows, as a decimal number, the throw of the
selected output. Receiver output 1 is labeled as Y1.
Pin Config - receiver pin config can be:
Servo
standard impulse output for servos
ź
(-100% = 1ms, 0%= 1,5ms / +100% = 2ms )
Digital
the output pin is in a stable LOW condition (log. 0) if the
ź
position of this channel is negative, otherwise this pin is in
HIGH condition (log.1)
ensure that pin is used only as logical output, don't draw the
ź
current above 1mA
Input
here the pin is configured as an input and its condition
ź
(disconnected/connected to the ground) is sent to the
transmitter as other telemetry data from the sensors
it is allowed to keep the pin disconnected or connected to the
ź
common ground of the receiver
it is not allowed to connect to a different voltage. The pin
ź
works exclusively in PullUp mode so all you need to test the
function is to connect the signal pin to the ground.
PPM pos.- standard form of PPM signal generation with
positive logic at PPM outputs. The bus idle state is log. 0.
