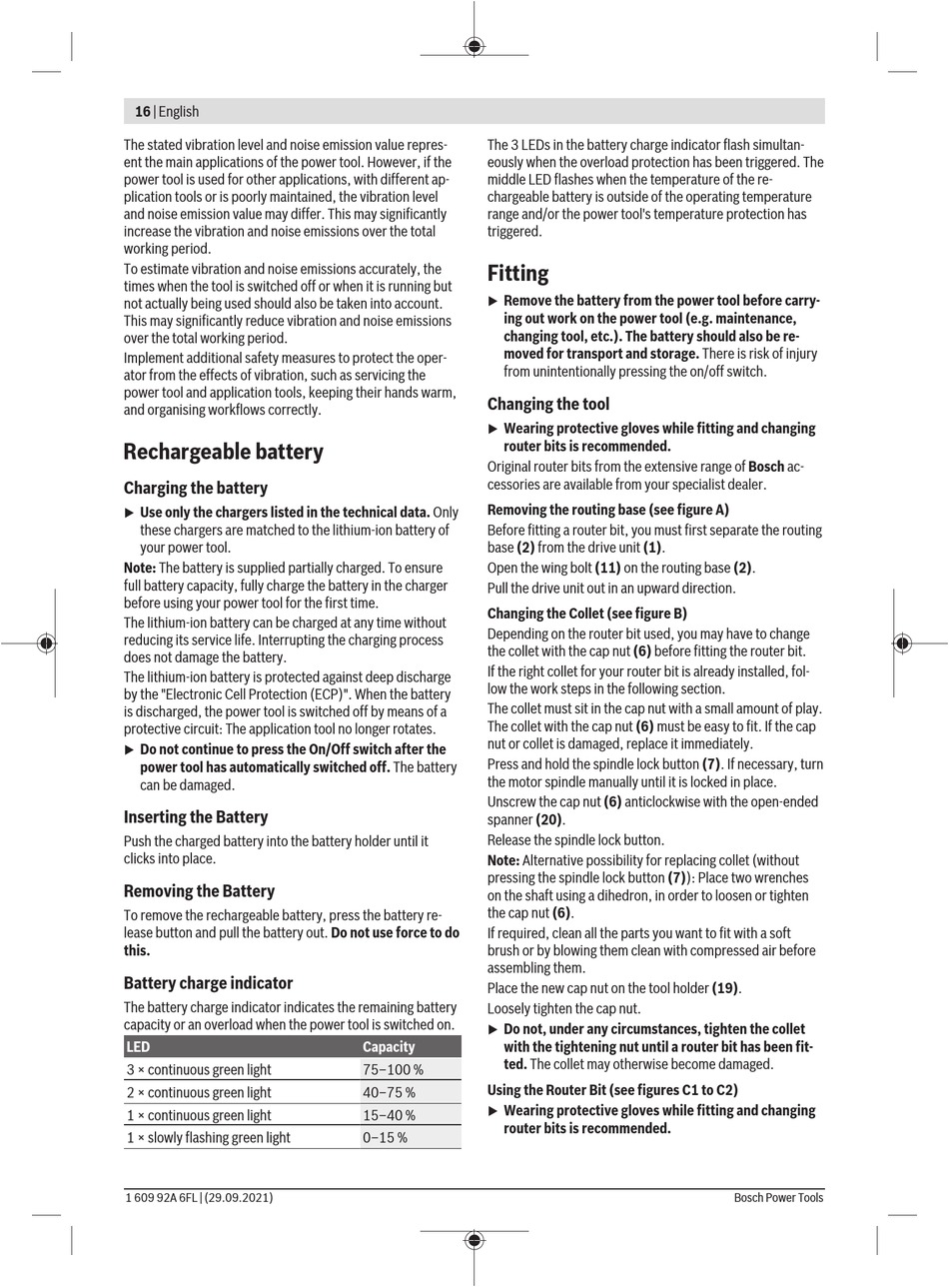

The stated vibration level and noise emission value repres-
ent the main applications of the power tool. However, if the
power tool is used for other applications, with different ap-
plication tools or is poorly maintained, the vibration level
and noise emission value may differ. This may significantly
increase the vibration and noise emissions over the total
working period.
To estimate vibration and noise emissions accurately, the
times when the tool is switched off or when it is running but
not actually being used should also be taken into account.
This may significantly reduce vibration and noise emissions
over the total working period.
Implement additional safety measures to protect the oper-
ator from the effects of vibration, such as servicing the
power tool and application tools, keeping their hands warm,
and organising workflows correctly.

Rechargeable battery

Charging the battery
Use only the chargers listed in the technical data. Only
u
these chargers are matched to the lithium-ion battery of
your power tool.
Note: The battery is supplied partially charged. To ensure
full battery capacity, fully charge the battery in the charger
before using your power tool for the first time.
The lithium-ion battery can be charged at any time without
reducing its service life. Interrupting the charging process
does not damage the battery.
The lithium-ion battery is protected against deep discharge
by the "Electronic Cell Protection (ECP)". When the battery
is discharged, the power tool is switched off by means of a
protective circuit: The application tool no longer rotates.
Do not continue to press the On/Off switch after the
u
power tool has automatically switched off. The battery
can be damaged.

Inserting the Battery

Push the charged battery into the battery holder until it
clicks into place.
Removing the Battery
To remove the rechargeable battery, press the battery re-
lease button and pull the battery out. Do not use force to do
this.

Battery charge indicator

The battery charge indicator indicates the remaining battery
capacity or an overload when the power tool is switched on.
LED
3 × continuous green light
2 × continuous green light
1 × continuous green light
1 × slowly flashing green light
1 609 92A 6FL | (29.09.2021)
The 3 LEDs in the battery charge indicator flash simultan-
eously when the overload protection has been triggered. The
middle LED flashes when the temperature of the re-
chargeable battery is outside of the operating temperature
range and/or the power tool's temperature protection has
triggered.
Fitting
Remove the battery from the power tool before carry-
u
ing out work on the power tool (e.g. maintenance,
changing tool, etc.). The battery should also be re-
moved for transport and storage. There is risk of injury
from unintentionally pressing the on/off switch.
Changing the tool
Wearing protective gloves while fitting and changing
u
router bits is recommended.
Original router bits from the extensive range of Bosch ac-
cessories are available from your specialist dealer.
Removing the routing base (see figure A)
Before fitting a router bit, you must first separate the routing
base (2) from the drive unit (1).
Open the wing bolt (11) on the routing base (2).
Pull the drive unit out in an upward direction.
Changing the Collet (see figure B)
Depending on the router bit used, you may have to change
the collet with the cap nut (6) before fitting the router bit.
If the right collet for your router bit is already installed, fol-
low the work steps in the following section.
The collet must sit in the cap nut with a small amount of play.
The collet with the cap nut (6) must be easy to fit. If the cap
nut or collet is damaged, replace it immediately.
Press and hold the spindle lock button (7). If necessary, turn
the motor spindle manually until it is locked in place.
Unscrew the cap nut (6) anticlockwise with the open-ended
spanner (20).
Release the spindle lock button.
Note: Alternative possibility for replacing collet (without
pressing the spindle lock button (7)): Place two wrenches
on the shaft using a dihedron, in order to loosen or tighten
the cap nut (6).
If required, clean all the parts you want to fit with a soft
brush or by blowing them clean with compressed air before
assembling them.
Place the new cap nut on the tool holder (19).
Loosely tighten the cap nut.
Do not, under any circumstances, tighten the collet
u
Capacity with the tightening nut until a router bit has been fit-
ted. The collet may otherwise become damaged.
75–100 %
Using the Router Bit (see figures C1 to C2)
40–75 %
Wearing protective gloves while fitting and changing
u
15–40 %
router bits is recommended.
0–15 %
