GB
2
8
9
16
17
15
21
19

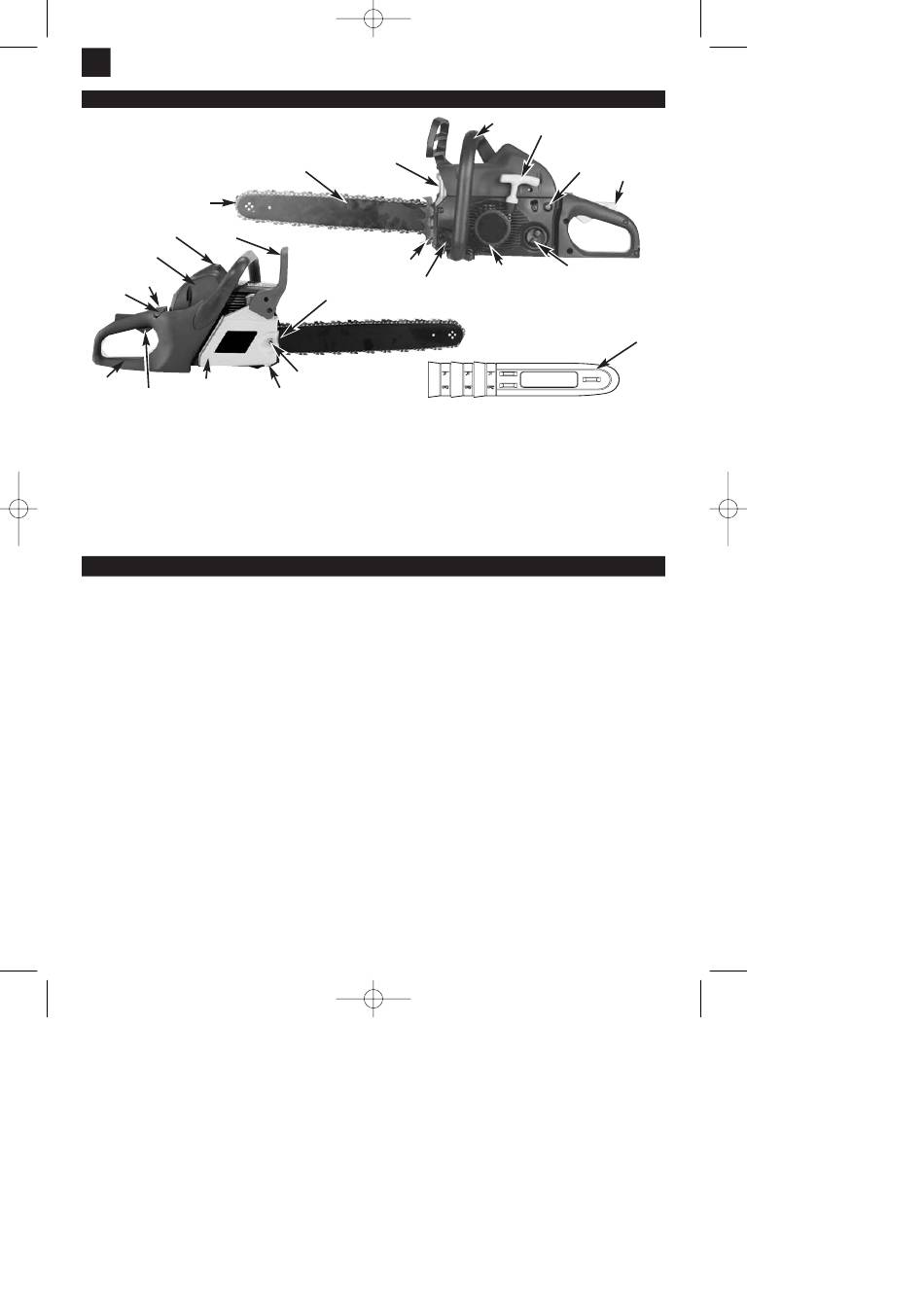

1. Chain bar
2. Saw chain
3. Chain tensioning screw
4. Spark mesh(inside exhaust)
5. Chain brake lever / front hand
guard
6. Front handle
7. Starter handle
8. Spark plug
9. Air filter cover
Numbers preceding the descriptions correspond with the numbers on preceding page to help you locate the safety
feature.
2 LOW KICKBACK SAW CHAIN helps significantly
reduce kickback, or the intensity of kickback, due to
specially designed depth gauges and guard links.
5 CHAIN BRAKE LEVER / HAND GUARD protects the
operator's left hand in the event it slips off the front
handle while saw is running.
5 CHAIN BRAKE is a safety feature designed to
reduce the possibility of injury due to kickback by
stopping a moving saw chain in milliseconds. It is
activated by the CHAIN BRAKE lever.
16 STOP SWITCH immediately stops the engine when
tripped. Stop switch must be pushed to ON position
to start or restart engine.
11 SAFETY TRIGGER prevents accidental acceleration
of the engine. Throttle trigger (19) cannot be
squeezed unless the safety latch is depressed.
20 CHAIN CATCHER reduces the danger of injury in
the event saw chain breaks or derails during
operation. The chain catcher is designed to intercept
a whipping chain.
16
16:04 Uhr Seite 16
GENERAL INFORMATION
4
1
5
22
3
18
20
10. Fuel pump
11. Safety lock
12. Oil tank cap
13. Fan housing
14. Fuel tank cap
15. Rear handle / bootstrap
16. Operating switch
17. Choke / (carburetor setting)
18. Bar fastening nut
19. Throttle lever
SAFETY FEATURES
NOTE: Study your saw and be familiar with its parts.
6
7
10
13
14
12
20. Chain catch
21. Chain wheel trim
22. Stop claw
23. Chain guard
11
23
