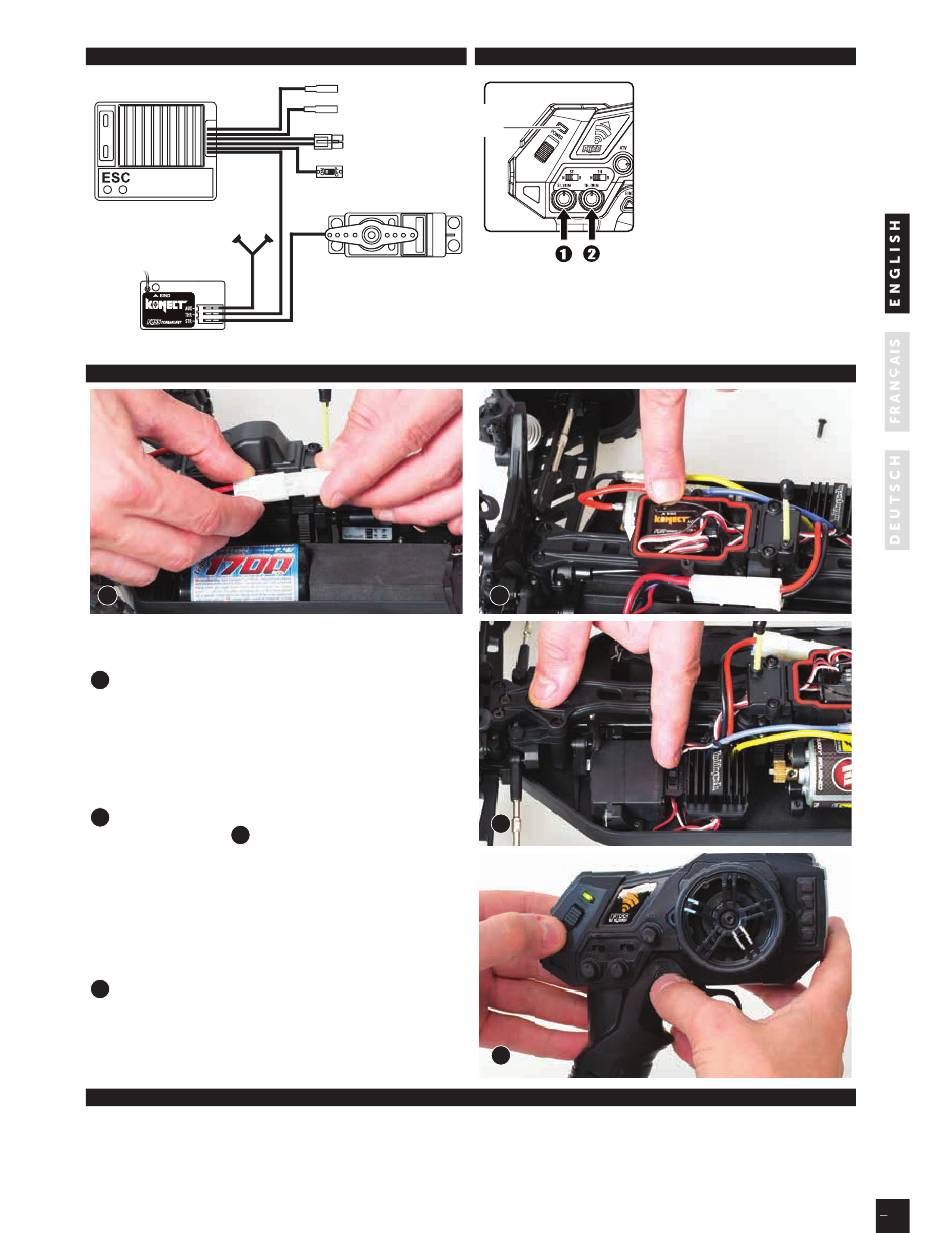

RECEIvER AND SERvO CONNECTION

CH2
ESC
LED
Receiver

bIND

A
Place model on a block to prevent wheels from touching the
ground.
A
Connect battery to ESC. Fix the wire correctly with the
provided connectors.
You must check the signal of transmitter and receiver before
you operating it at first.
Make sure Th Trim is on neutral
- TURN OFF ThE TRANSMITTER AND RECEIVER -
B
Press and Hold the BIND button on the receiver while
C
turning on the receiver .
Release the BIND button when the lED flashes green.
While the green lED flashes, press the BIND button to select
the frame rate.
- Faster flashes= high frame rate (7ms), for digital servo
- Slower flashes= low frame rate (15ms), for analog servo
D Press and Hold the BIND key of the Transmitter (1),
and then turn on the Transmitter (2), the Transmitter will
communicate with the receiver.
When the receiver lED is solid on, the pairing process is done,
and the receiver is paired with the transmitter.

bATTERY LED INDICATOR

- During normal operation, the lED should be solid green ON
- When battery voltage is dropped below 3.8V, the lED will become red color and flashing very slowly, to indicate battery is
low, you should replace new battery as soon as possible.
All manuals and user guides at all-guides.com
Connect to motor
Connect to
battery
Power Switch
Steering Servo
CH1

PRE-RUN CHECK

1. Steering : Adjust the steering
LED
indicateur
LED indicator
2. Throttle : Adjust the throttle
* Always turn on the transmitter first by sliding the switch on
the left side from bottom to top. The green lights above the
switch should light up. If not, you need to check for low or
incorrectly installed batteries.
B
C
(2)
(1)
D
trim to keep the front wheels
in straight line when steering
wheel remains in NEUTRAl
position.
trim to ensure the wheels stop
rotating when throttle trigger
remains in NEUTRAl position.
