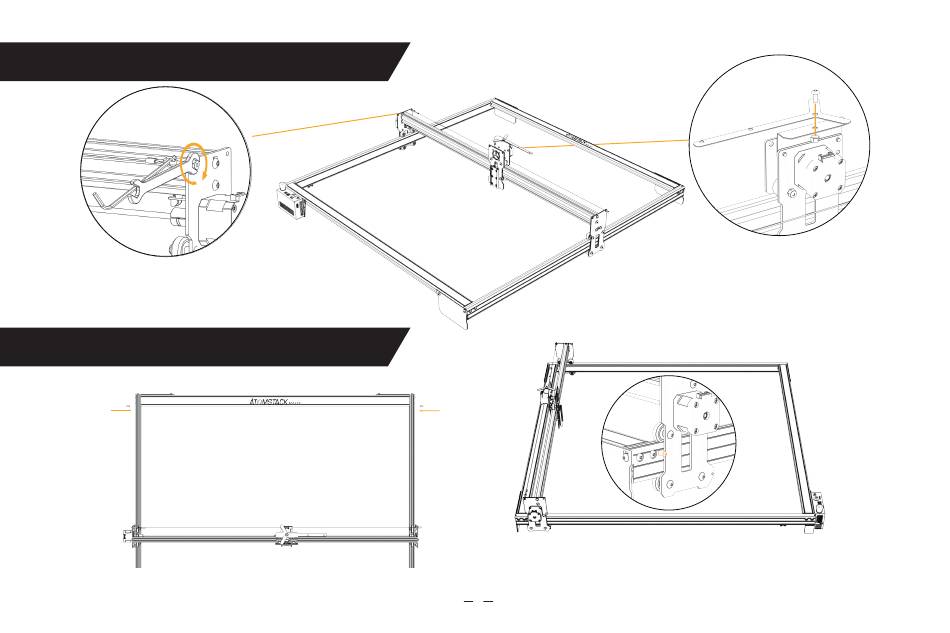

Cable fixing module installation
Fastening method of connecting
wire fixing steel wire
Y-axis limit column installation
M3 screw
assembly
M3 screw
assembly
The stroke of the X-axis is too large. In order to prevent the left-right asymmetry
in the assembly of the Y-axis synchronous belt, when the Y-axis synchronous belt
is assembled and tightened, the X-axis slide rail assembly should be close to the
limit columns at both ends of the Y-axis.
4
M5*8
Installation of the fixing bracket
for the motherboard cable
